One of the most common headaches in an LS swap is finding an oil pan that doesn't hang below the chassis. Most aftermarket LS oil pans either hang too low or interfere with chassis clearance — causing ground clearance problems that can be difficult or impossible to resolve after the engine is in. Speed Engineering's LS swap conversion oil pan is engineered specifically to provide the best possible clearance for swap applications across the most popular classic GM platforms. Built from cast and machined aluminum with a 6 quart capacity and a maximum crankshaft stroke of 4.25" — covering both stock displacement and most popular stroker configurations.
Note: Does NOT fit G-body applications (1982–1988 Malibu, Monte Carlo, El Camino, Cutlass, Regal, etc.)
Features:
- 6 Quart Oil Capacity
- Maximum Crankshaft Stroke: 4.25" — Compatible with stock and most popular LS stroker builds
- Cast and Machined Aluminum Construction — Durable, lightweight, and precision machined for OEM-level fitment
- Maximum Ground Clearance for Swap Applications — Engineered specifically to avoid the low-hanging fitment issues common with most aftermarket LS swap pans
- OEM Fitment — Direct fit on LS1, LS2, LS3, and LS6 engines
- All Hardware Included
- Compatible with 4.8L, 5.3L, 6.0L, and 6.2L LS V8 Engines
Compatible Engines:
- GM LS V8 — LS1, LS2, LS3, LS6
- GM LS V8 — 4.8L, 5.3L, 6.0L, 6.2L
Compatible Platforms:
Note: This pan is designed for LS swap applications. Does NOT fit G-body platforms.
- 1970–1992 Chevrolet Camaro & Pontiac Firebird (F-Body)
- 1968–1974 Chevrolet Nova / Pontiac Apollo, Ventura & Omega (X-Body)
- 1960–1987 Chevrolet & GMC C10/K10 Trucks & SUVs
- 1988–1998 Chevrolet & GMC C1500/K1500 Trucks & SUVs
- And many more LS swap chassis applications
Frequently Asked Questions:
Q: Why do I need a special oil pan for an LS swap? Most factory and aftermarket LS oil pans hang too low or interfere with chassis crossmembers and steering components on classic GM platforms. Speed Engineering's conversion pan is specifically engineered to provide the best possible ground clearance for swap applications — solving the fitment problem that plagues most alternatives.
Q: Will this pan fit G-body applications? No. This pan does not fit G-body platforms (1982–1988 Malibu, Monte Carlo, El Camino, Cutlass, Regal, Grand Prix, etc.).
Q: What is the maximum crankshaft stroke this pan will accommodate? This pan supports a maximum crankshaft stroke of 4.25", making it compatible with most popular LS stroker builds in addition to stock displacement engines.
Q: What oil capacity does this pan have? 6 quarts.
Q: What oil filter is recommended? Recommended oil filters include AC Delco PF48 or PF48E, Mobil M1-113, Wix 57060, and K&N HP-1017, or an equivalent filter.

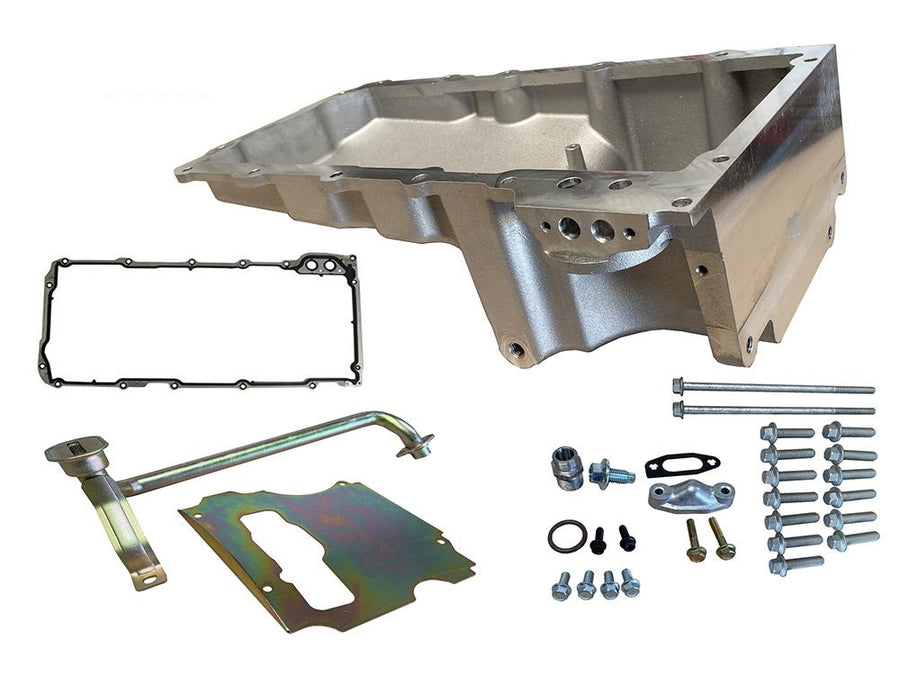

Q: What hardware is included? All installation hardware shown in the product photos is included with the pan.
Q: What material is this pan made from? Cast and machined aluminum for a durable, lightweight, and precision-fit installation.
Q: What is the difference between this pan and the Coyote swap oil pan (26-1120)? Part 26-1039 is designed for GM LS engine swaps (LS1, LS2, LS3, LS6) on classic GM chassis. Part 26-1120 is designed for Ford 5.0L Coyote (Gen 1/2/3) swaps into 1953–1979 Ford F-series trucks. Each pan is engineered for its specific engine and chassis combination.
