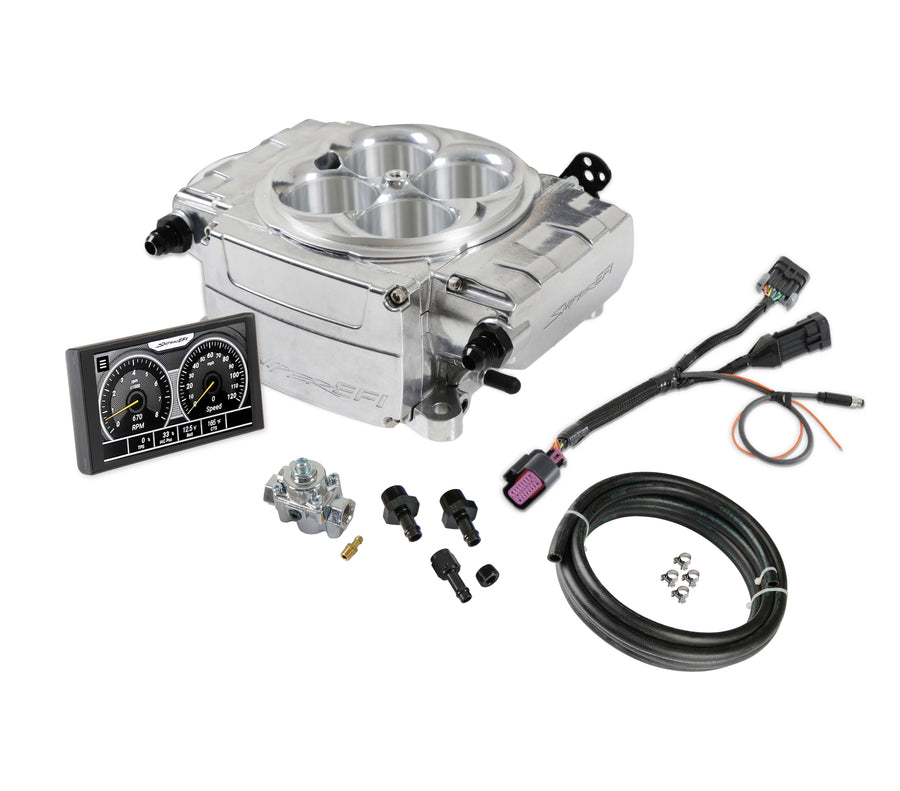

This Sniper 2 EFI upgrade kit lets owners of the original Sniper EFI system move up to Sniper 2 without rewiring their vehicle. Simply remove the original Sniper throttle body, unplug the connectors, install the polished Sniper 2 throttle body, and plug the included adapter harness into the existing main harness. This configuration adds an adjustable external fuel pressure regulator, AN fittings, and a 3-foot section of fuel hose so the regulator can be mounted in the engine bay, plus a 5" full-color handheld display for setup and monitoring.
Key Features:
- Plug-and-play upgrade path from original Sniper EFI to Sniper 2 in under an hour, no rewiring required
- Includes an adjustable external fuel pressure regulator, AN fittings, and a 3-foot fuel hose for engine-bay mounting
- Cast-in fuel crossover from the primary to secondary fuel rail
- Reuses the existing coolant temperature sensor and wideband oxygen sensor from the original Sniper install
- Next-generation ECU offers improved RF noise and interference resistance against old wiring, noisy alternators, and faulty plug wires
- Redesigned injector connector for improved reliability
- Redesigned throttle shaft and plate geometry for a smoother throttle feel
- "Hidden Harness" wiring exits from the rear of the throttle body for a clean installation
- Next-generation mil-spec style M8 positive-lock connector for CAN1/CAN2
- Sniper 2 throttle bodies are individually serialized for improved customer service and warranty tracking
- Integrated transmission kick-down provisions for GM TH350/400, 200-4R/700R4, and Ford C4/C6
- Calibration wizard only requires answering a few simple questions about the engine to build a base map and begin self-tuning, no laptop required
- Compatible with the full Sniper EFI Ecosystem, including HyperSpark ignition, fuel systems, and multiple display interfaces
Specifications:
- Flange Style: 4150
- CFM: 800
- Injector Size: 100 lb/hr @ 58.5 PSI (4 injectors)
- Fuel Pressure: 58.5 PSI (adjustable external regulator included)
- Inlet/Outlet Size: 9/16-18 Female O-Ring (AN 6)
- MAP Sensor: 2 Bar
- Max Horsepower Rating: 650 HP naturally aspirated / 575 HP boosted
- Transmission Compatibility: All
- User Interface: 5" Handheld
- Finish: Polished
- Warranty: Two-Year Standard, extendable via product registration
- Part Number: 550-510-5AE
Designed specifically as a plug-and-play upgrade for an existing Sniper EFI installation; the original wiring harness stays in place.
FAQ
What does this kit include?
An adjustable external fuel pressure regulator, AN fittings, and a 3-foot section of fuel hose so the regulator can be mounted in the engine bay, along with the polished Sniper 2 throttle body and a 5" handheld display.
Do I need to rewire my vehicle to install this upgrade?
No. It plugs into the existing Sniper EFI wiring harness through an included adapter, so the original harness stays in place.
What size display comes with this kit?
A 5" full-color handheld display.
How much horsepower does this system support?
Up to 650 hp naturally aspirated or 575 hp with forced induction, using four 100 lb/hr injectors.
Does this kit include a fuel pump?
No. This is a throttle body and regulator upgrade kit; it does not include a fuel pump.
