Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. These headers are manufactured from 100% T304 Stainless Steel to provide durability rivaled only by Hedman's ELITE® line of headers. They have smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next, and utilize 3/8 in. thick T304 stainless flanges to prevent warping. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
These raw stainless LONG-TUBE headers use Hedman's best selling Chevy truck header configuration. They fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans (check the application listings for exact fitment), powered by a Small Block Chevy engine (without A.I.R. System). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. These headers are uncoated, and ship from the factory with a raw stainless surface. For protection against the element and lower under hood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
Hedman Hedders STAINLESS HEADERS; LONG; 67-91 2WD/4WD SB CHEVY TRUCKS/SUVS; 1-5/8 IN.- UNCOATED 62090
Specifications:
| Description_DEF | [B@661ced3d |
| Description_DES | [B@5042cbf3 |
| Description_EXT | [B@688899b9 |
| Description_FAB | [B@18e6c2b6 |
| Description_FAB | [B@1912b192 |
| Description_FAB | [B@5f49ec10 |
| Description_FAB | [B@73a0e311 |
| Description_FAB | [B@5d7d6ca1 |
| Description_FAB | [B@51efd8bd |
| Description_INV | [B@415697fc |
| Description_MKT | [B@359a5cac |
| Description_SHO | [B@33436da |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Y-Pipe Included | No |
| Tube Size | 1-5/8 in. |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.625 in. |

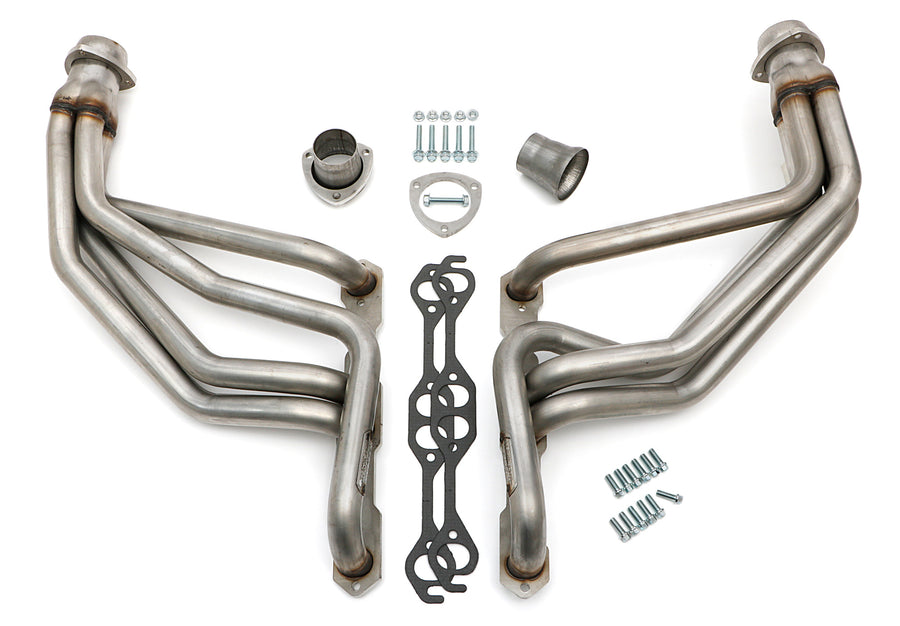

| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | T304 Stainless Steel |
| Header Finish | Raw |
| Cylinder Head Port Shape | Oval |
| Cylinder Head | Fits Factory GM Aluminum Angle Plug and Straight Plug Heads. |
| Header Construction | T304 STAINLESS STEEL |
| Replacement Gasket | 27520 |
| Replacement Head Flange Gasket | 27520 |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations | 69096, 69890, 62096 |
| Tube Material Thickness | 16g |
| Tube Style | Long Tubes |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Tube Diameter | 1-5/8 in. |
| Reducers Included | Yes |
| with A.I.R. System | No |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Installation Hardware Included | Yes |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Chassis Compatibility | NOT For Vehicles With Offset (right) Engine Position! |
| Power Steering | Yes |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Tube Length | Long Tubes |
| Drivetrain | 2WD |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Finish | Uncoated |
| Finish Type | Uncoated Stainless Steel |
| Flange Style | Standard |
| Flange Thickness | 0.375 in. |
| Header Style | Long Tube |
| Notes | 67-91 1/2, 3/4, 1 Ton Chev. Truck 2-4WD 283-400 |
| Product Info | Manufactured using 304 Stainless steel. Sturdy 3/8 in. Flanges and 16 gauge tubing |
| Material | T304 Stainless Steel |
| Tube Design | Standard |
| Title | HEDMAN HEDDERS STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1976 | Chevrolet | C10 | BASE | |
| 1977 | Chevrolet | C10 | BASE | |
| 1978 | Chevrolet | C10 | BASE | |
| 1979 | Chevrolet | C10 | BASE | |
| 1980 | Chevrolet | C10 | BASE | |
| 1967 | Chevrolet | C10 Pickup | BASE | |
| 1968 | Chevrolet | C10 Pickup | BASE | |
| 1969 | Chevrolet | C10 Pickup | BASE | |
| 1967 | Chevrolet | C10 Suburban | BASE | |
| 1968 | Chevrolet | C10 Suburban | BASE | |
| 1969 | Chevrolet | C10 Suburban | BASE | |
| 1976 | Chevrolet | C20 | BASE | |
| 1977 | Chevrolet | C20 | BASE | |
| 1978 | Chevrolet | C20 | BASE | |
| 1979 | Chevrolet | C20 | BASE | |
| 1980 | Chevrolet | C20 | BASE | |
| 1967 | Chevrolet | C20 Pickup | BASE | |
| 1968 | Chevrolet | C20 Pickup | BASE | |
| 1969 | Chevrolet | C20 Pickup | BASE | |
| 1976 | Chevrolet | C30 | BASE | |
| 1977 | Chevrolet | C30 | BASE | |
| 1978 | Chevrolet | C30 | BASE | |
| 1967 | Chevrolet | C30 Pickup | BASE | |
| 1968 | Chevrolet | C30 Pickup | BASE | |
| 1969 | Chevrolet | C30 Pickup | BASE | |
| 1975 | Chevrolet | K10 | BASE | |
| 1976 | Chevrolet | K10 | BASE | |
| 1977 | Chevrolet | K10 | BASE | |
| 1978 | Chevrolet | K10 | BASE | |
| 1979 | Chevrolet | K10 | BASE | |
| 1980 | Chevrolet | K10 | BASE | |
| 1967 | Chevrolet | K10 Pickup | BASE | |
| 1968 | Chevrolet | K10 Pickup | BASE | |
| 1969 | Chevrolet | K10 Pickup | BASE | |
| 1975 | Chevrolet | K20 | BASE | |
| 1976 | Chevrolet | K20 | BASE | |
| 1977 | Chevrolet | K20 | BASE | |
| 1978 | Chevrolet | K20 | BASE | |
| 1979 | Chevrolet | K20 | BASE | |
| 1980 | Chevrolet | K20 | BASE | |
| 1967 | Chevrolet | K20 Pickup | BASE | |
| 1968 | Chevrolet | K20 Pickup | BASE | |
| 1969 | Chevrolet | K20 Pickup | BASE | |
| 1975 | Chevrolet | K5 Blazer | BASE | |
| 1976 | Chevrolet | K5 Blazer | BASE | |
| 1977 | Chevrolet | K5 Blazer | BASE | |
| 1978 | Chevrolet | K5 Blazer | BASE | |
| 1979 | Chevrolet | K5 Blazer | BASE | |
| 1976,1978 | GMC | C15 | BASE | |
| 1967 | GMC | C15/C1500 Pickup | BASE | |
| 1968 | GMC | C15/C1500 Pickup | BASE | |
| 1967 | GMC | C15/C1500 Suburban | BASE | |
| 1968 | GMC | C15/C1500 Suburban | BASE | |
| 1979 | GMC | C1500 | BASE | |
| 1980 | GMC | C1500 | BASE | |
| 1976 | GMC | C25 | BASE | |
| 1977 | GMC | C25 | BASE | |
| 1978 | GMC | C25 | BASE | |
| 1978 | GMC | C25 Suburban | BASE | |
| 1967 | GMC | C25/C2500 Pickup | BASE | |
| 1968 | GMC | C25/C2500 Pickup | BASE | |
| 1967 | GMC | C25/C2500 Suburban | BASE | |
| 1968 | GMC | C25/C2500 Suburban | BASE | |
| 1979 | GMC | C2500 | BASE | |
| 1980 | GMC | C2500 Suburban | BASE | |
| 1976 | GMC | C35 | BASE | |
| 1977 | GMC | C35 | BASE | |
| 1978 | GMC | C35 | BASE | |
| 1967 | GMC | C35/C3500 Pickup | BASE | |
| 1968 | GMC | C35/C3500 Pickup | BASE | |
| 1979 | GMC | C3500 | BASE | |
| 1975 | GMC | Jimmy | BASE | |
| 1976 | GMC | Jimmy | BASE | |
| 1977 | GMC | Jimmy | BASE | |
| 1978 | GMC | Jimmy | BASE | |
| 1979 | GMC | Jimmy | BASE | |
| 1975 | GMC | K15 | BASE | |
| 1976 | GMC | K15 | BASE | |
| 1977 | GMC | K15 | BASE | |
| 1978 | GMC | K15 | BASE | |
| 1975 | GMC | K15 Suburban | BASE | |
| 1976 | GMC | K15 Suburban | BASE | |
| 1977 | GMC | K15 Suburban | BASE | |
| 1978 | GMC | K15 Suburban | BASE | |
| 1967 | GMC | K15/K1500 Pickup | BASE | |
| 1968 | GMC | K15/K1500 Pickup | BASE | |
| 1967 | GMC | K15/K1500 Suburban | BASE | |
| 1968 | GMC | K15/K1500 Suburban | BASE | |
| 1979 | GMC | K1500 | BASE | |
| 1980 | GMC | K1500 | BASE | |
| 1979 | GMC | K1500 Suburban | BASE | |
| 1980 | GMC | K1500 Suburban | BASE | |
| 1975 | GMC | K25 | BASE | |
| 1976 | GMC | K25 | BASE | |
| 1977 | GMC | K25 | BASE | |
| 1978 | GMC | K25 | BASE | |
| 1975 | GMC | K25 Suburban | BASE | |
| 1976 | GMC | K25 Suburban | BASE | |
| 1977 | GMC | K25 Suburban | BASE | |
| 1978 | GMC | K25 Suburban | BASE | |
| 1967 | GMC | K25/K2500 Pickup | BASE | |
| 1968 | GMC | K25/K2500 Pickup | BASE | |
| 1967 | GMC | K25/K2500 Suburban | BASE | |
| 1968 | GMC | K25/K2500 Suburban | BASE | |
| 1979 | GMC | K2500 | BASE | |
| 1980 | GMC | K2500 | BASE | |
| 1979 | GMC | K2500 Suburban | BASE | |
| 1980 | GMC | K2500 Suburban | BASE |
