Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford Mustang headers for nearly as long as Mustangs have been on the road. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these 351W engine swap headers, even if it is not perfectly aligned with the header collectors.
These uncoated mild steel, MID-LENGTH TUBE headers are designed specifically for swapping a 351W engine into a 1964-73 Ford Mustang and Falcon, or '66-73 Ranchero & Torino, that did not come from the factory with a 351W. The engine must be centered between the framerails. These headers fit both automatic and manual transmissions, but clutch and shift linkage may be required. The smooth 1-5/8 in., oval port tube design tucks in tight to clear shock towers, and provides superior exhaust flow over factory manifolds to let your 351 Windsor block engine breathe better, and produce excellent low-end torque and horsepower.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

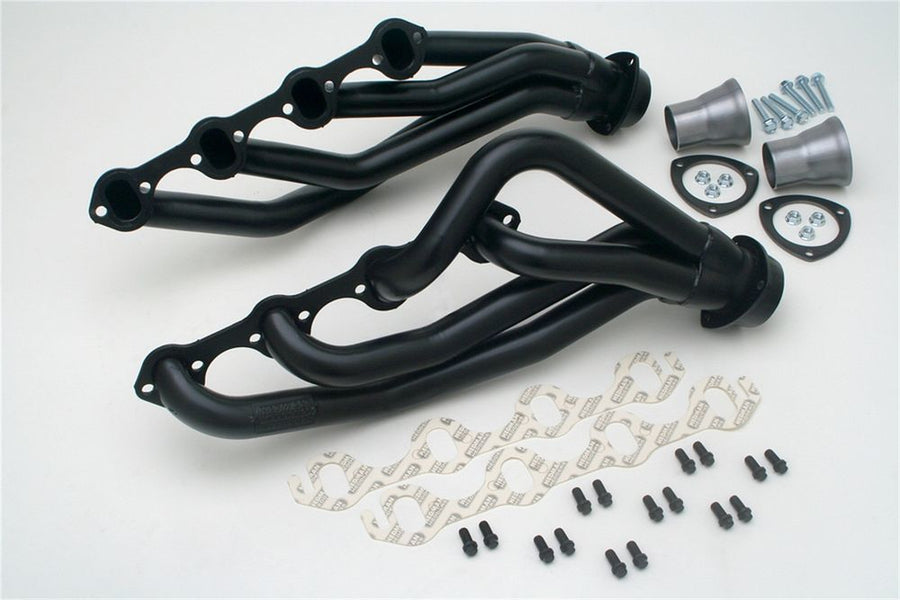

Hedman Hedders Uncoated Mid-Length Engine Swap Headers to Install a 351W in '64-73 Ford Mustang 88650
Specifications:
| Description_DEF | [B@2032cbcb |
| Description_DES | [B@6c0b3ccb |
| Description_EXT | [B@6d1c0d04 |
| Description_FAB | [B@2944cef8 |
| Description_FAB | [B@1f1e3488 |
| Description_FAB | [B@2ac6bec4 |
| Description_FAB | [B@27bfe2b5 |
| Description_FAB | [B@2883dbb4 |
| Description_FAB | [B@46d71058 |
| Description_INV | [B@59f8a6d8 |
| Description_MKT | [B@18a5d18 |
| Description_SHO | [B@37e278e6 |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Tube Length | Mid-Length Tubes |
| Material | Mild Steel |
| Special Engine Notes | 351 WINDSOR |
| Tube Design | Standard |
| Tube Diameter | 1-5/8 in. |
| Mounting Hardware Included | Yes |
| with A.I.R. System | No |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Reducers Included | Yes |
| Tube Size | 1-5/8 in. |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.625 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Oval |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27700 |
| Replacement Head Flange Gasket | 27700 |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| Variations | 88656, 88658 |
| Tube Material Thickness | 16g |
| Tube Style | Mid-Length |
| Air Conditioning | Yes |
| Automatic Transmission - Column | No |
| Flange Thickness | 1/4 in. with 5/16 in. collector ring flange. |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Notes | 64-73 Ford Mustang 351W |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Key Feature | Engine Swap |
| Engine Version | Ford Windsor Block (W) |
| Contents | Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
| Header Style | Mid-Length Tube |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Port Shape | Oval |
| Header Port Shape | Oval Port |
| Flange Style | Standard |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Power Steering | Yes |
