Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
These HTC Coated, MID-LENGTH tube headers are one of the most versatile headers Hedman Hedders manufacturers. While we've seen them on rare builds, like a SB Chevy equipped Studebaker, these MID-LENGTH headers are actually cataloged to fit Small Block Chevy V8 powered, 1967-81 Chevy Camaros; 1964-1987 GM A-Body and G-Body vehicles (Buick Regal, Chevy Chevelle, El Camino, Monte Carlo, Olds Cutlass, Pontiac Grand Prix); '68-79 Chevy II and Nova. Heck, they even fit 1984-2004 Chevy AstroVans. The smooth 1-5/8 in tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and improve horsepower and torque over stock manifolds.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.

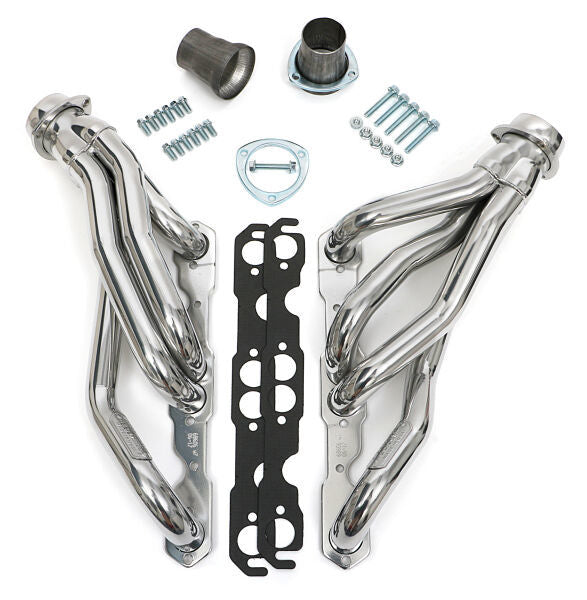

Hedman Hedders Silver Mid-Length Headers For 67-81 Camaro, Nova, G-Body 283-400 68606
Specifications:
| Description_DEF | [B@75cc51fd |
| Description_DES | [B@591896c6 |
| Description_EXT | [B@210ff166 |
| Description_FAB | [B@466fd464 |
| Description_FAB | [B@51bb36ed |
| Description_FAB | [B@4c8834ba |
| Description_FAB | [B@12d2688c |
| Description_FAB | [B@2aa65246 |
| Description_FAB | [B@222215a1 |
| Description_INV | [B@2f82d8bb |
| Description_MKT | [B@2e9553cf |
| Description_SHO | [B@36390039 |
| Title | HEDMAN HEDDERS HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN |
| LS SWAP | NO |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.625 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | HTC Polished Silver Ceramic-Metallic |
| Cylinder Head Port Shape | Round |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27500 |
| Replacement Head Flange Gasket | 27500 |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations | 68606, 68603, 68608 & 63608. 62600, 62606 & 62603 304 Stainless Steel. |
| Tube Material Thickness | 16g |
| Tube Diameter | 1-5/8 in. |
| Tube Style | Mid-Length |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | No |
| Tube Length | Mid-Length Tubes |
| Material | Mild Steel |
| Tube Design | Standard |
| Mounting Hardware Included | Yes |
| with A.I.R. System | No |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Reducers Included | Yes |
| Tube Size | 1-5/8 in. |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Flange Thickness | 0.3125 in. |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Notes | 67-81 F; 64-83 A, 82-88 G; 68-79 X; 71-94 B; 84-04 Astro 283-400 |
| IMPORTANT! | Automatic Transmission ONLY! |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Engine | Chevy SB 283-400 (Gen 1) 1958-86 |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Finish | HTC Polished Silver Ceramic-Metallic |
| Finish Type | HTC SILVER (polished) Ceramic-metallic Coating |
| Header Style | Mid-Length Tube |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Header Port Shape | Round |
| Port Shape | Round |
| Flange Style | Standard |
| Power Steering | Yes |
