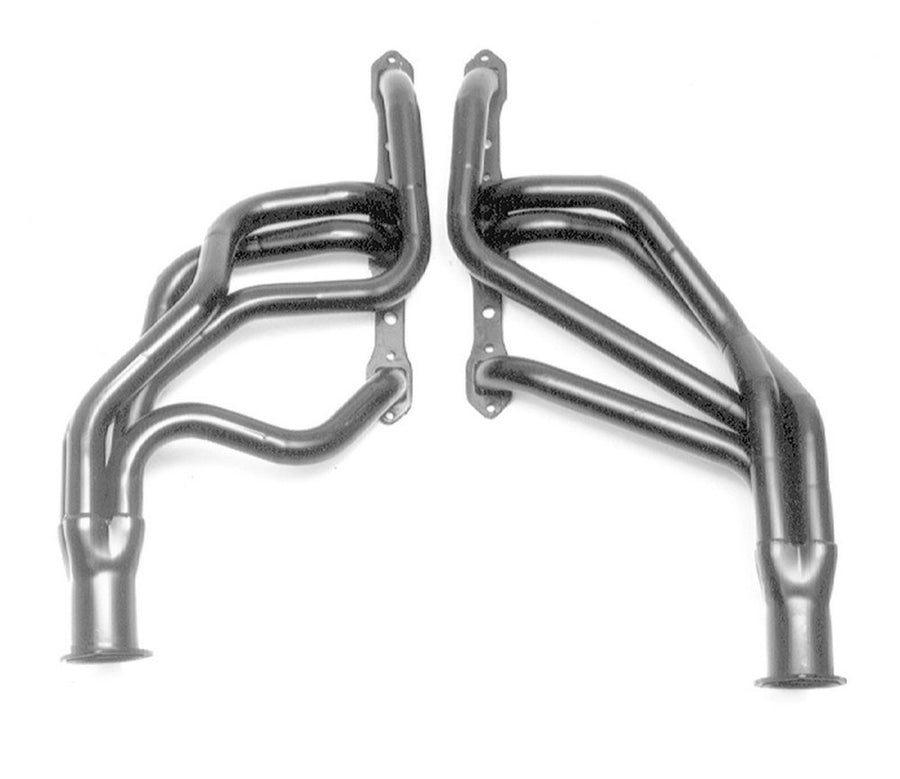

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and classic musclecars is their specialty. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block Chrylser's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
These uncoated, LONG-TUBE headers fit a variety of 1967-1974 MOPAR passenger cars powered by a Chrysler 361-440 B/RB engine. Included in this list of popular models are 1970-74 Dodge Challenger and Plymouth Barracuda, '66-74 Dodge Charger, '68-74 Plymouth Roadrunner and '67-70 Belvedere (check the application listings for exact fitment). These headers fit both manual and automatic transmission models, however, modification to the shift linkage may be required. The smooth 1-3/4 in. tube design provides excellent exhaust flow to let your Chrysler 361-440 (wedge-style) engine breathe deep to produce maximum horsepower and torque.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
Hedman Hedders Standard Uncoated Headers; 1-3/4 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design 78030
Specifications:
| Description_DEF | [B@6e1d1666 |
| Description_DES | [B@4299ffca |
| Description_EXT | [B@1b262468 |
| Description_FAB | [B@215bd855 |
| Description_FAB | [B@2773443e |
| Description_FAB | [B@2a1988b5 |
| Description_FAB | [B@36ecfa |
| Description_FAB | [B@7fd005d9 |
| Description_FAB | [B@423feca9 |
| Description_INV | [B@2485887b |
| Description_MKT | [B@1363e12d |
| Description_SHO | [B@6c62c055 |
| For Use On | MOPAR B and E Body cars not referred to by model with and other header numbers. |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | Yes |
| Manual Transmission - Floor | Yes |
| Tube Material Thickness | 16g |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Long Tubes |
| Tube Diameter | 1-3/4 in. |
| Reducers Included | Yes |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Y-Pipe Included | No |
| Variations | 78036, 78033, 78038, 73038 |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.75 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Square |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27900 |
| Replacement Head Flange Gasket | 27900 |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| with A.I.R. System | No |
| Tube Size | 1-3/4 in. |
| Tube Style | Long Tubes |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Flange Thickness | 0.3125 in. |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Notes | 62-74 B & E-Body 361-440 |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Engine | Chrysler B/RB; 361-440 |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Header Style | Long Tube |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Exceptions | Some 440 applications may encounter driver side steering or starter interference |
| Header Port Shape | Square |
| Port Shape | Square |
| Flange Style | Standard |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Power Steering | Yes |
