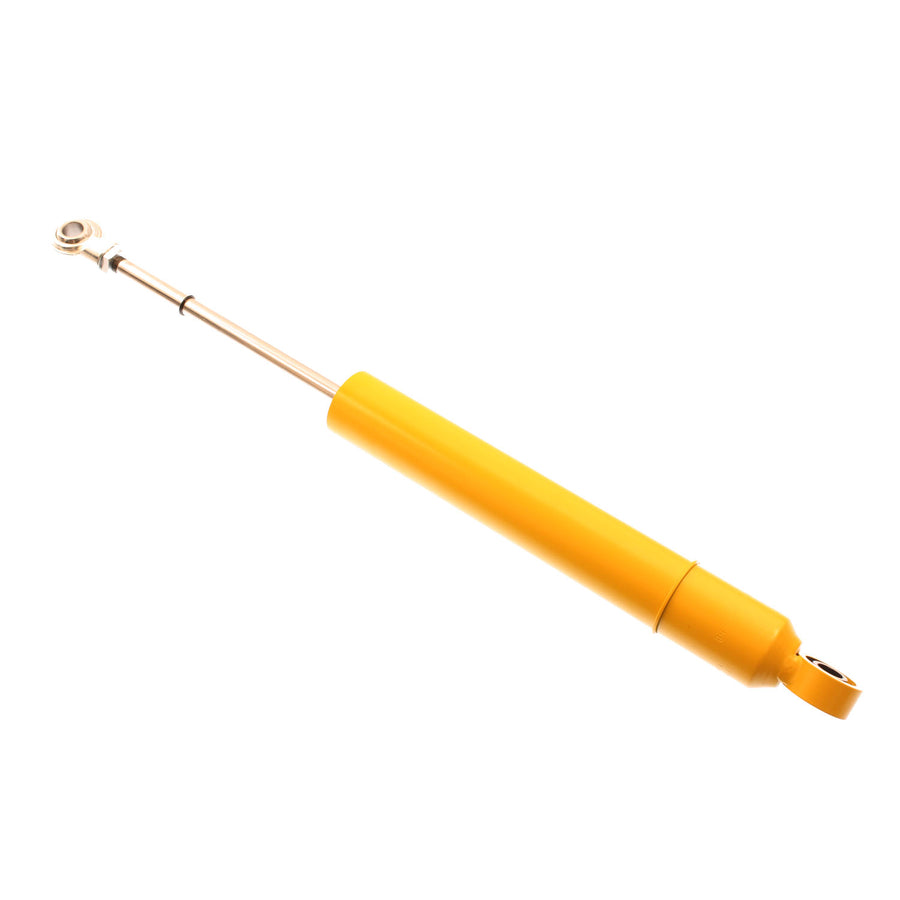

Bilstein G Series - Suspension Shock Absorber F4-BE3-C238-H0
Specifications:
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Segment | Motorsports |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Spring Hardware | B4-BOA-0000187 |
| Boot Included | No |
| Spring Seat Included | No |
| Internal Design | Monotube |
| Adjustable Damping | Non-Adjustable |
| Series | G Series |
| Upper Mount Type | 1/2in Heim |
| Body Diameter (ID) | 36mm |
| Body Design | Smooth Body (Non-coilover) |
| Collapsed Length (MM) | 322.0 |
| Title | Bilstein Shock Absorbers |
| Finish | Yellow Paint |
| Lower Mount Type | 1/2in Heim |
| Body Material | Steel |
| Collapsed Length (IN) | 12.68 |
| Compression @0.26m/s | 730 |
| Piston Type | Digressive |
| Rebound @0.26m/s | 895 |
| Valving Identifier | 4545 |
| Extended Length (IN) | 19.86 |
| Extended Length (MM) | 504.5 |
| Description_FAB | Available for standard and coilover applications |
| Description_INV | S7G-4545 7" STD. BODY |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_LAB | G Series - Suspension Shock Absorber |
| Description_DES | G Series - Suspension Shock Absorber |
| Description_ASM | No Applications |
| Description_EXT | 36mm Monotube Shock Absorber |
| Description_MKT | Bilstein G Series shock absorbers feature a steel monotube body with a 36mm piston designed for a variety of motorsports applications. These shock absorbers are available in 6 and 7 inch strokes with multiple valve setting options that provide optimal weight transfer and feel. They can also be converted to a coilover design (kit sold separately) for multiple platforms on dirt and asphalt. G Series shock absorbers are ideal for racers needing a lightweight high performance option with fade free handling and control. |
| Description_FAB | Available for standard and coilover applications |
| Description_FAB | 36mm monotube design ensures consistent, fade-free performance in all conditions |
