Edelbrock Supercharger Kit 1580
Regular Price
$7,826.95
Press & drag to view
The Edelbrock supercharger Stage 1 Street system part #1580 for 2005-09 Ford Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1580 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

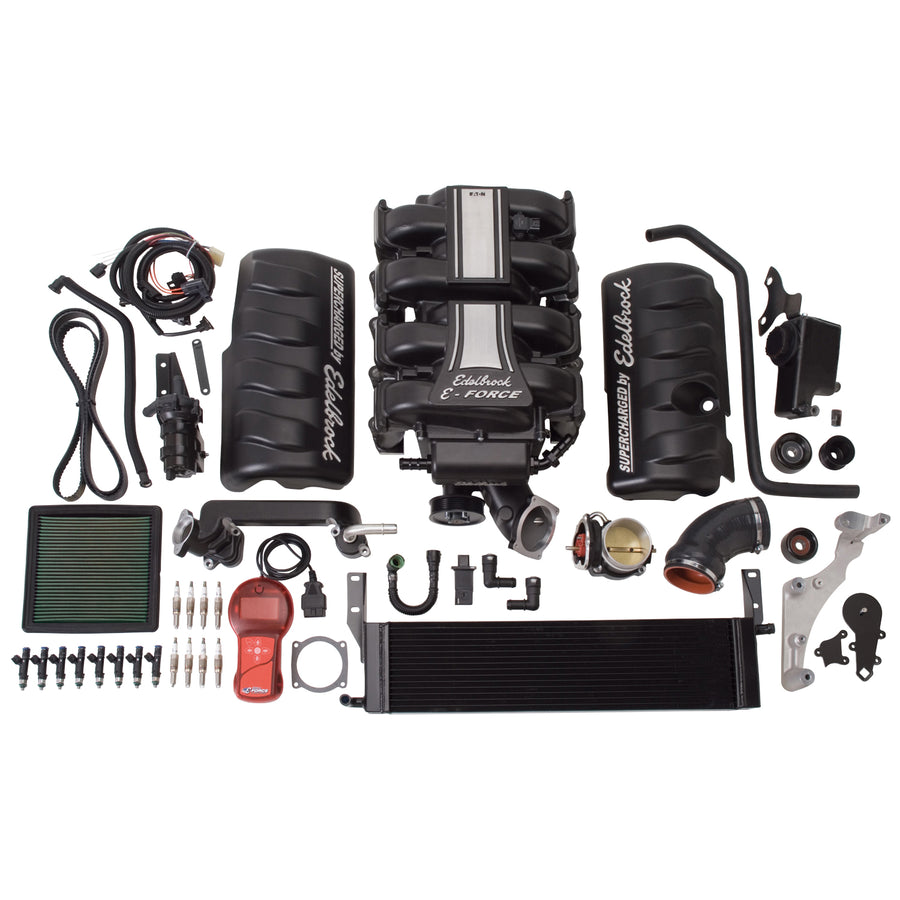

Edelbrock Supercharger Kit 1580
Specifications:
| Quantity | Kit |
| Oil Capacity | 150 |
| Gasket Or Seal Included | Yes |
| Hose Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Maximum Torque | 439 |
| Universal Or Specific Fit | Specific |
| Outside Pulley Diameter | 3.875 |
| Maximum Boost Pressure | 4.75 |
| Mounting Bracket Included | Yes |
| Rotor Type | Eaton TVS 2300 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Hardware Included | Yes |
| Finish | Black Powder Coated |
| Pulley Belt Width | 6-Rib |
| Maximum Pressure Reading | 4.75 |
| System Type | Stage 1 - Street System |
| 9040 | D-215-89 |
| Air Filter Included | Yes |
| Harmonic Balancer Diameter | 6.67 |
| Vehicle Model | Mustang |
| Spark Plugs Included | Yes |
| Calibration | Yes |
| Housing Material | Cast Aluminum |
| Fuel Injector Type | 41 |
| Internal Step Up | Yes |
| Maximum Horsepower | 466 |
| Description_ABR | SuperchrgrKt |
| Description_INV | Edelbrock supercharger #1580 |
| Description_LAB | Edelbrock Stage 1 Supercharger Kit #1580 For 2005-09 Mustang GT 4.6L 3V W/ Tune |
| Description_ASM | Ford:Modular 3V:281 (4.6L) |
| Description_EXT | The Edelbrock Supercharger System part #1580 is for the 2005-09 Ford Mustang 4.6L 3V. This kit produces 466 horsepower and 439 ft-lbs of torque. |
| Description_MKT | The Edelbrock supercharger Stage 1 Street system part #1580 for 2005-09 Ford Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1580 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_TRA | Requires Edelbrock part #15804 for 2005-2006 Mustang GT applications. Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA | Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_DEF | Supercharger Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2005 | Ford | Mustang | Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439 | |
| 2006 | Ford | Mustang | Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439 | |
| 2007 | Ford | Mustang | Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439 | |
| 2008 | Ford | Mustang | Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439 | |
| 2009 | Ford | Mustang | Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439,Tune; TVS Series: 2300; HP: 466; Torque (Ft.-lbs): 439 |
