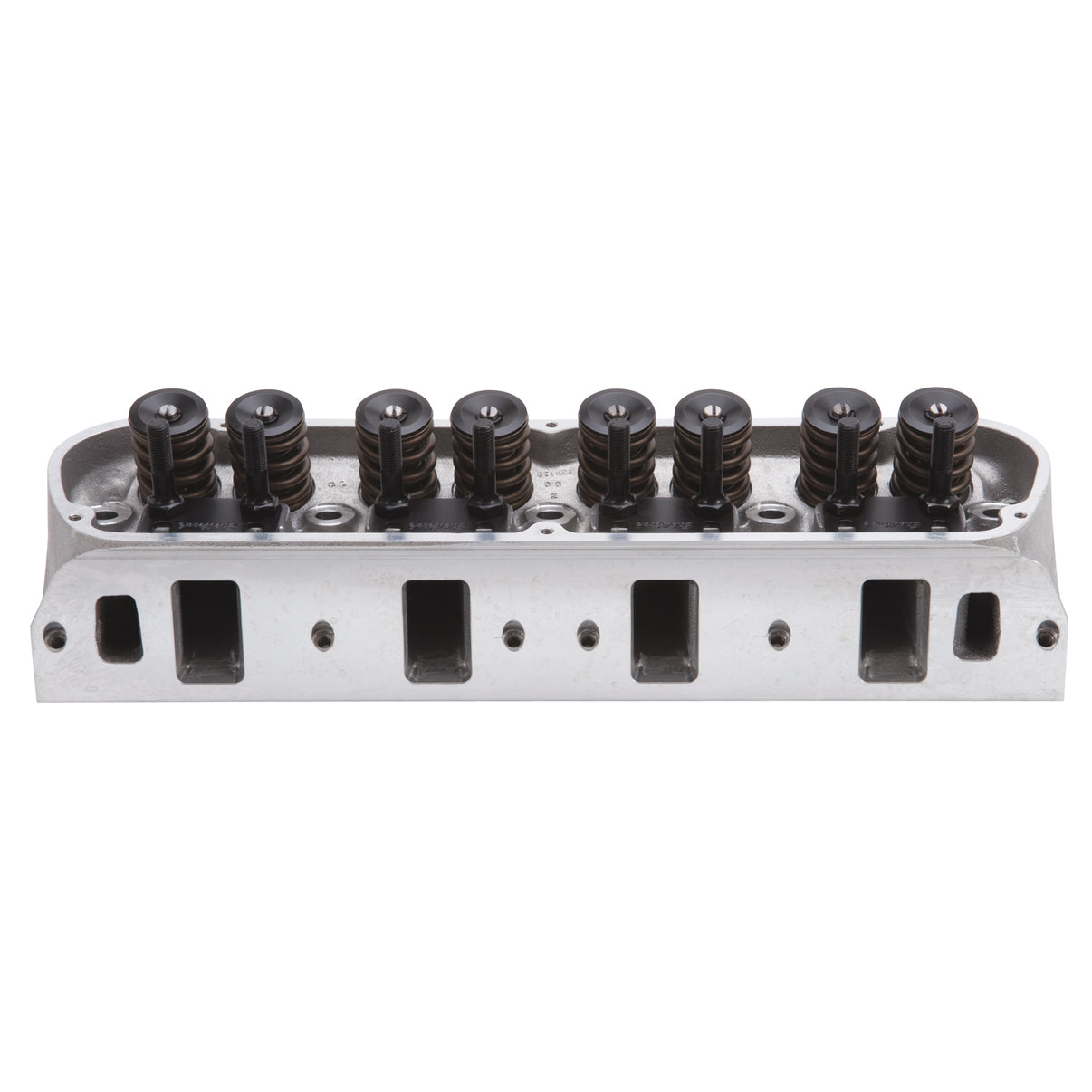

Edelbrock Engine Cylinder Head 77199
Specifications:
| Valve Stem Diameter | 0.3438 |
| Seat Material | Ductile Iron |
| Combustion Chamber Volume | 60 |
| Guide Plates Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Push Rod Diameter | (Suggested) 0.3125 |
| Exhaust Valve Diameter | 1.60 |
| EGR Port | No |
| Valve Springs Included | Yes |
| Family | Victor Jr. |
| Construction Type | Complete |
| Rocker Arm Stud Diameter | 0.4375 |
| Quantity | Sold Individually |
| Camshaft Type | Mechanical Roller |
| Retainer Included | Yes |
| Valve Included | Yes |
| Deck Thickness | 0.625 |
| Valve Angle | 20 |
| Guide Plate Material | Hardened Steel |
| CNC Ported | No |
| Exhaust Port Location | +.125 |
| Horsepower | 400-600 |
| Intake Runner Volume | 210 |
| Exhaust Runner Volume | 75 |
| Series | Victor Jr. |
| Material | Aluminum |
| Grade Type | Performance |
| Intake Valve Diameter | 2.05 |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| Valve Spring Diameter | 1.55 |
| Valve Spring Maximum Lift | 0.670 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock SBF Cylinder Head |
| Description_LAB | Victor Jr Small-Block Ford Cylinder Head Hydraulic Roller Camshaft |
| Description_ASM | Ford:Small-Block:289 (4.7L)-351W (5.8L) |
| Description_EXT | Edelbrock part #77199 Victor Jr. 20 Degree is a complete cylinder head designed for S/B Ford 289-351W engines. This head has the potential of 500+ Horsepower out-of-the-box using a stock valve train geometry. |
| Description_MKT | The Edelbrock 77199 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head |
| Description_TRA | Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_DEF | Engine Cylinder Head |
