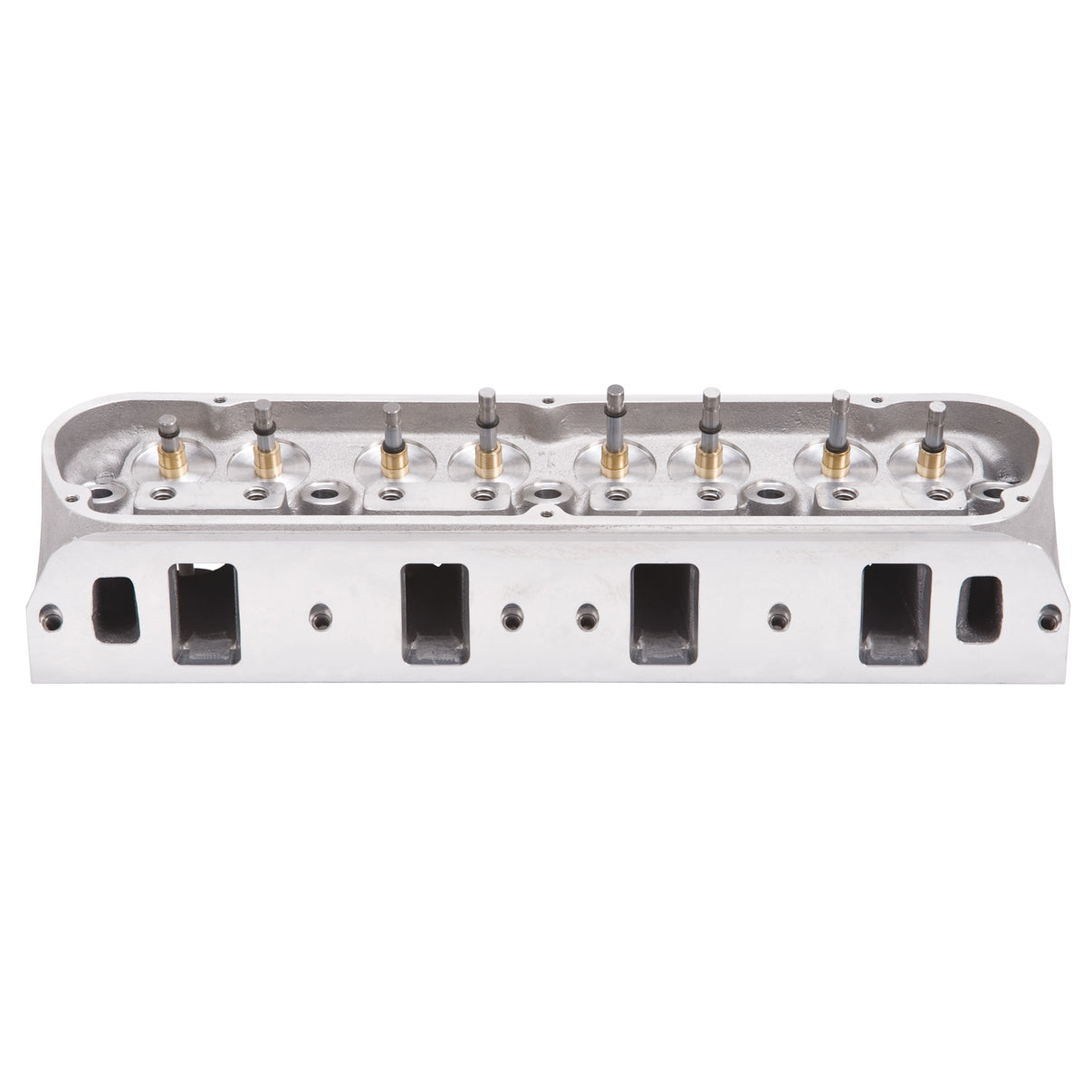

Edelbrock Engine Cylinder Head 77179
Specifications:
| Exhaust Runner Volume | 75 |
| Series | Victor Jr. |
| Material | Aluminum |
| Valve Angle | 20 |
| Guide Plates Included | Yes |
| Valve Springs Included | No |
| Valve Stem Diameter | 0.3438 |
| Push Rod Diameter | (Suggested) 0.3125 |
| Deck Thickness | 0.625 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Material | Ductile Iron |
| Construction Type | Complete |
| Guide Material | Manganese Bronze |
| Horsepower | 350-600 |
| Exhaust Valve Diameter | 1.60 |
| Head Casting Number | N/A |
| EGR Port | No |
| Exhaust Port Location | +.125 |
| Family | Victor Jr. |
| Quantity | Sold Individually |
| Retainer Included | No |
| Combustion Chamber Volume | 60 |
| Guide Plate Material | Hardened Steel |
| Valve Included | Yes |
| CNC Ported | No |
| Grade Type | Performance |
| Intake Runner Volume | 210 |
| Intake Valve Diameter | 2.05 |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock SBF Cylinder Head |
| Description_LAB | Victor Jr Small-Block Ford Cylinder Head W/ Valves |
| Description_ASM | Ford:Small-Block:289 (4.7L)-351W (5.8L) |
| Description_EXT | Edelbrock part #77179 Victor Jr. 20 Degree is a complete cylinder head designed for S/B Ford 289-351W engines. This head has the potential of 500+ Horsepower out-of-the-box using a stock valve train geometry. |
| Description_MKT | The Edelbrock 77179 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head |
| Description_TRA | Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_DEF | Engine Cylinder Head |
