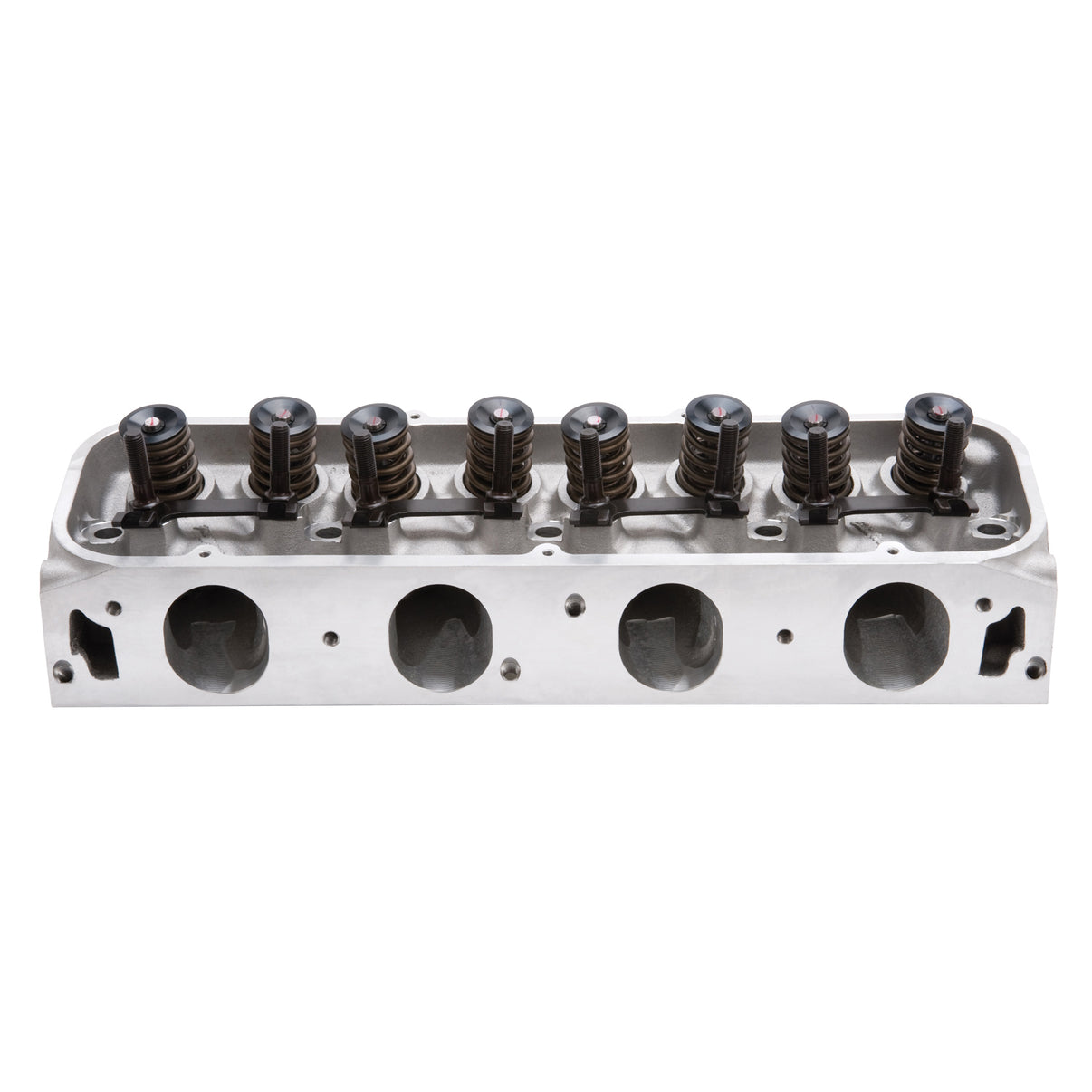

Edelbrock Engine Cylinder Head 61649
Specifications:
| Exhaust Runner Volume | 100 |
| Valve Stem Diameter | 0.3438 |
| Camshaft Type | Flat Tappet |
| Combustion Chamber Volume | 75 |
| Valve Springs Included | Yes |
| Material | Aluminum |
| Grade Type | Performance |
| Valve Spring Maximum Lift | 0.700 |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| Horsepower | 550-750 |
| Push Rod Diameter | (Suggested) 0.375 |
| Deck Thickness | 0.625 |
| Guide Plates Included | Yes |
| CNC Ported | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Intake Runner Volume | 310 |
| Intake Valve Diameter | 2.19 |
| EGR Port | No |
| Family | Performer RPM |
| Construction Type | Complete |
| Rocker Arm Stud Diameter | 0.4375 |
| Exhaust Port Location | Standard |
| Series | Performer RPM |
| Exhaust Valve Diameter | 1.76 |
| Valve Spring Diameter | 1.55 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Quantity | Sold Individually |
| Seat Material | Ductile Iron |
| Retainer Included | Yes |
| Valve Included | Yes |
| Guide Plate Material | Hardened Steel |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Rocker stud diameter: 7/16" |
| Description_TRA | Pushrod diameter: 3/8" (width of slot in guide plate). |
| Description_DEF | Engine Cylinder Head |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock BB Ford Cylinder Head |
| Description_LAB | RPM Big-Block Ford 460 CJ Cylinder Head 75cc Hydraulic Flat Tappet Cam |
| Description_ASM | Ford:Big-Block:429 (7.0L )/460 (7.5L) |
| Description_EXT | Edelbrock part #61649 Performer RPM CJ cylinder heads are designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. |
| Description_MKT | The Edelbrock #61649 Performer RPM CJ cylinder head is designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. The Edelbrock #61649 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Machined profile Cobra Jet-style intake port entries |
| Description_TRA | Match with Edelbrock head gasket sets. |
