Our new Edelbrock #61179 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

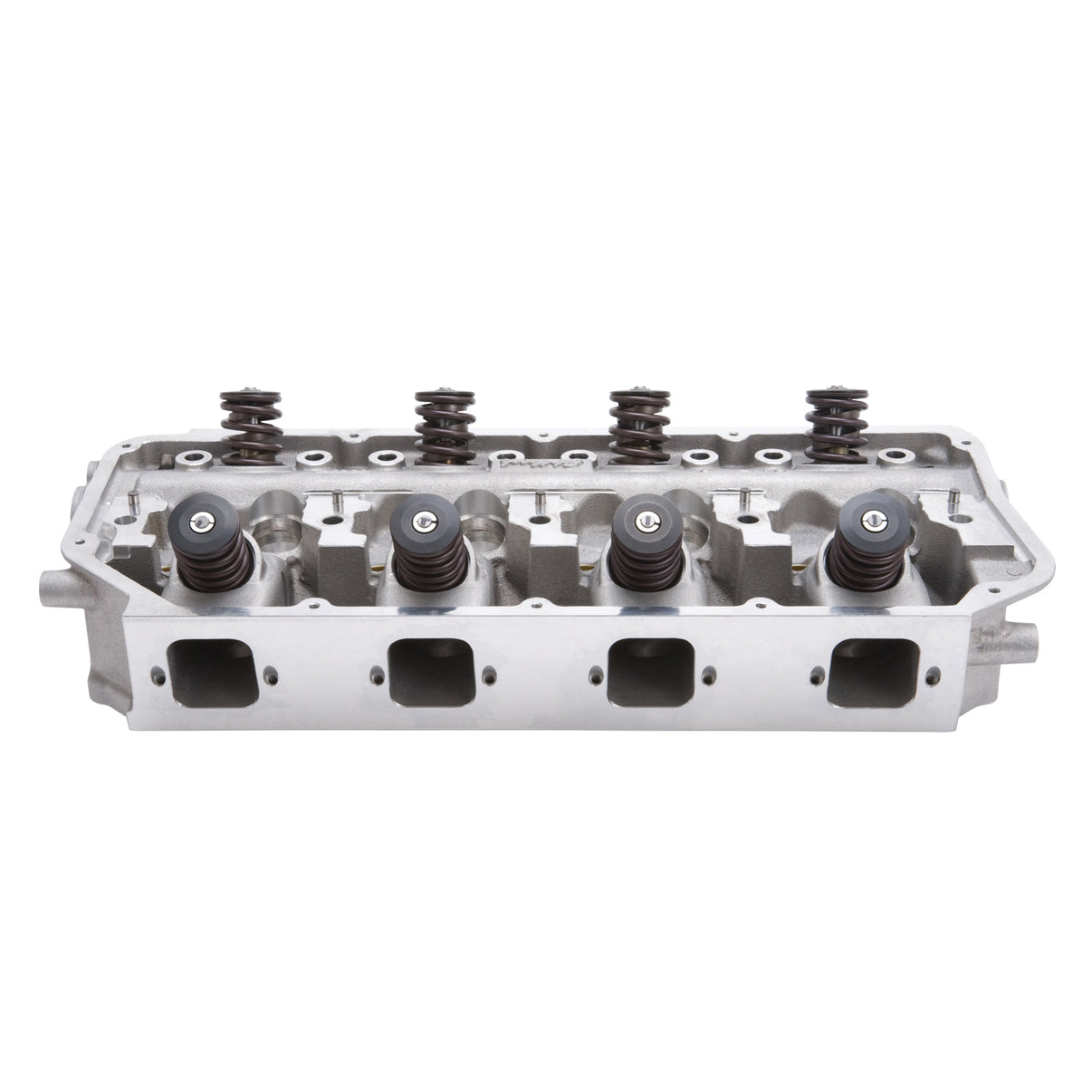

Edelbrock Engine Cylinder Head 61179
Specifications:
| Exhaust Port Location | Standard |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Quantity | Sold Individually |
| Seat Material | Ductile Iron |
| Retainer Included | Yes |
| Valve Included | Yes |
| Guide Plates Included | No |
| CNC Ported | Yes |
| Camshaft Type | Flat Tappet |
| Intake Runner Volume | 245 |
| Exhaust Valve Diameter | 1.94 |
| Valve Springs Included | Yes |
| Series | Victor Jr. |
| Material | Aluminum |
| Horsepower | 550-800 |
| Grade Type | Performance |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| Valve Stem Diameter | 0.3125 |
| Deck Thickness | 0.625 |
| Valve Spring Diameter | 1.54 |
| Valve Angle | Exhaust (Tipped) 1.5-21.5 deg/Intake Stock |
| Family | Victor Jr. |
| Combustion Chamber Volume | 170 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Push Rod Diameter | (Suggested) 0.3125 in Or 0.375 |
| Intake Valve Diameter | 2.320 |
| Valve Spring Maximum Lift | 0.600 |
| EGR Port | No |
| Exhaust Runner Volume | 105 |
| Construction Type | Complete |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock HEMI GEN II Cylinder Head |
| Description_LAB | Victor Jr Gen II HEMI Chrysler Cylinder Head Hydraulic Flat Tappet Cam |
| Description_ASM | Chrysler:Big-Block Gen II HEMI:426 (7.0L) |
| Description_EXT | Our new Edelbrock #61179 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. |
| Description_MKT | Our new Edelbrock #61179 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion. |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Victor Jr. CNC cylinder heads #61179 are complete and ready to run right out of the box. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_DEF | Engine Cylinder Head |
