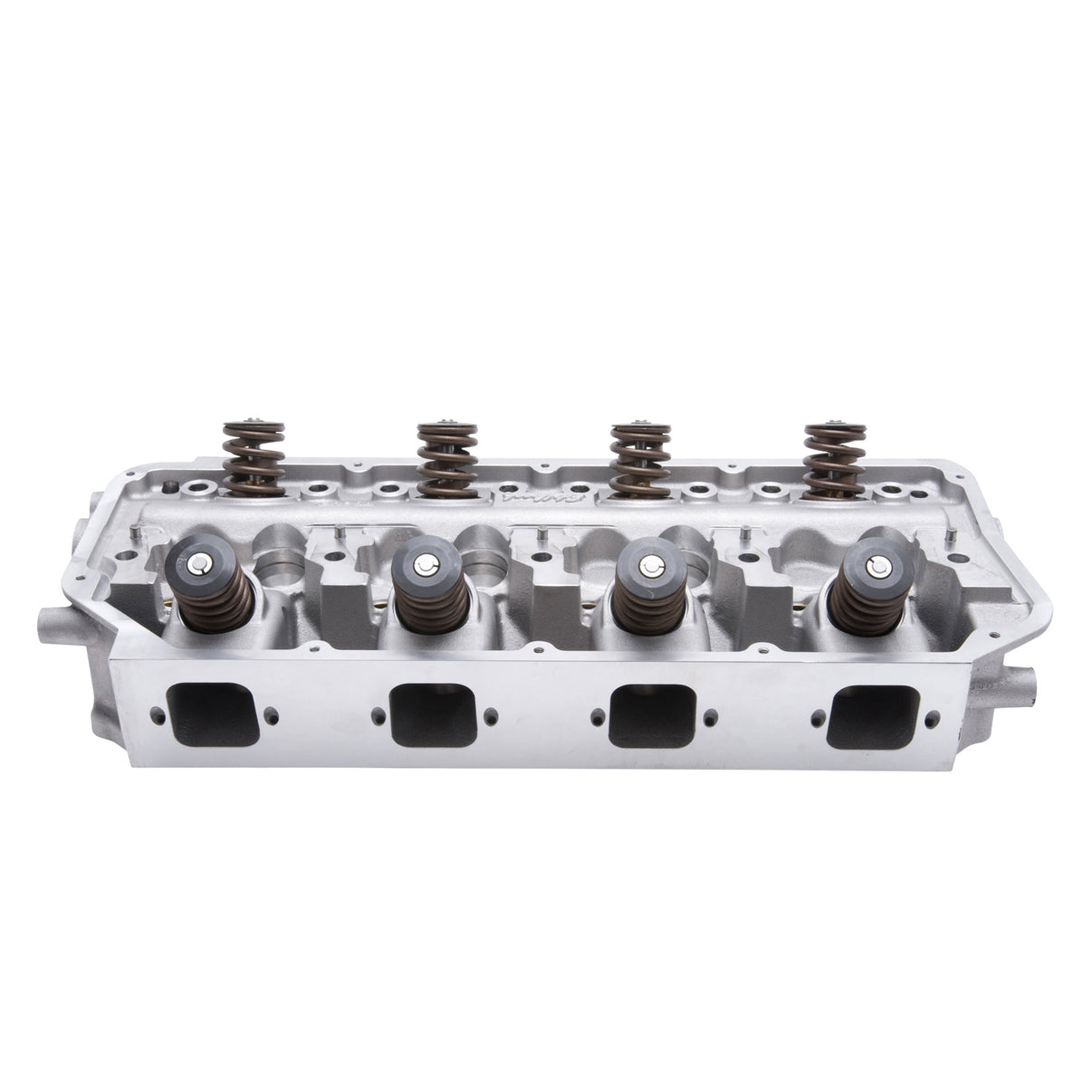

Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Edelbrock Engine Cylinder Head 61175
Specifications:
| Material | Aluminum |
| Family | Victor Jr. |
| Combustion Chamber Volume | 170 |
| Seat Material | Ductile Iron |
| Deck Thickness | 0.625 |
| Valve Angle | Exhaust (Tipped) 1.5-21.5 deg/Intake Stock |
| Guide Plates Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Camshaft Type | Hydraulic Roller |
| Push Rod Diameter | (Suggested) 0.3125 in Or 0.375 |
| Intake Runner Volume | 245 |
| Intake Valve Diameter | 2.320 |
| Exhaust Valve Diameter | 1.94 |
| EGR Port | No |
| Valve Springs Included | Yes |
| Exhaust Port Location | Standard |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| CNC Ported | Yes |
| Exhaust Runner Volume | 105 |
| Horsepower | 550-800 |
| Valve Spring Maximum Lift | 0.700 |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| Quantity | Sold Individually |
| Valve Stem Diameter | 0.3125 |
| Retainer Included | Yes |
| Valve Included | Yes |
| Valve Spring Diameter | 1.54 |
| Construction Type | Complete |
| Series | Victor Jr. |
| Grade Type | Performance |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock HEMI GEN II Cylinder Head |
| Description_LAB | Victor Jr Gen II HEMI Chrysler Cylinder Head Hydraulic Roller Camshaft |
| Description_ASM | Chrysler:Big-Block Gen II HEMI:426 (7.0L) |
| Description_EXT | Our new Edelbrock #61175 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. |
| Description_MKT | Our new Edelbrock #61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion. |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA | Victor Jr. CNC cylinder heads #61175 are complete and ready to run right out of the box. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_DEF | Engine Cylinder Head |
