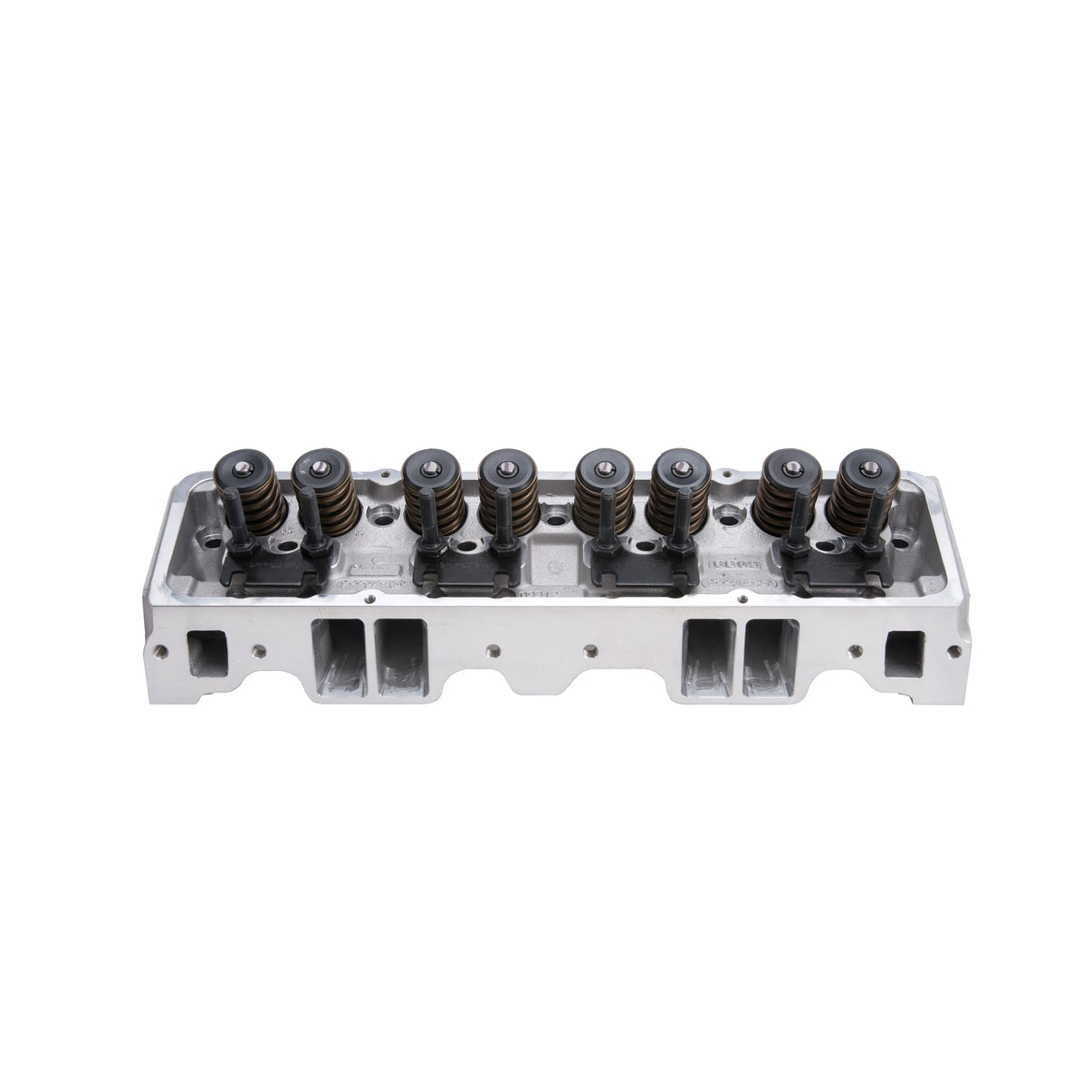

Edelbrock Engine Cylinder Head 60895
Specifications:
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Center Bore Inside Diameter | Straight |
| Combustion Chamber Volume | 64 |
| Exhaust Valve Diameter | 1.60 |
| EGR Port | No |
| Family | Performer RPM |
| Seat Material | Ductile Iron |
| Camshaft Type | Hydraulic Roller |
| Deck Thickness | 0.5625 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Exhaust Runner Volume | 65 |
| Quantity | Sold Individually |
| Horsepower | 350-450 |
| Retainer Included | Yes |
| Valve Included | Yes |
| Intake Valve Diameter | 2.02 |
| Valve Spring Maximum Lift | 0.575 |
| Valve Angle | 23 |
| Guide Plate Material | Hardened Steel |
| Valve Stem Diameter | 0.3438 |
| Rocker Arm Stud Diameter | 0.375 |
| Guide Plates Included | Yes |
| Material | Aluminum |
| Construction Type | Complete |
| Push Rod Diameter | (Suggested) 0.3125 |
| Intake Runner Volume | 195 |
| Valve Springs Included | Yes |
| Series | Performer RPM |
| Grade Type | Performance |
| Head Casting Number | N/A |
| CNC Ported | No |
| Guide Material | Manganese Bronze |
| Exhaust Port Location | Standard |
| Valve Spring Diameter | 1.46 |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_LAB | RPM Small-Block Chevy Straight Spark Plug 64cc Hydraulic Roller Cam |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | The Edelbrock #60895 Performer RPM cylinder heads are designed for 1955-86 SB Chevy engines. The Edelbrock #60895 Performer RPM heads are perfect for street performance, daily drivers and muscle cars where more performance is needed. |
| Description_MKT | The Edelbrock #60895 Performer RPM cylinder head is designed for 1955-86 Small-Block Chevy applications. The Edelbrock #60895 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN MECHANICAL FLAT TAPPET AND HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | To use stock rockers on small-block Chevy heads, .100" longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended. |
| Description_TRA | Use Head Bolt Kits for easy installation. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 c.i.d.) except with cams having less than .450" valve lift. |
| Description_DEF | Engine Cylinder Head |
