Earl's Performance Earl's Ultra Flex Hose Size -10 SS Braid - Hose Sold By the Foot up to 25' 660010ERL
Regular Price
$54.59
Press & drag to view

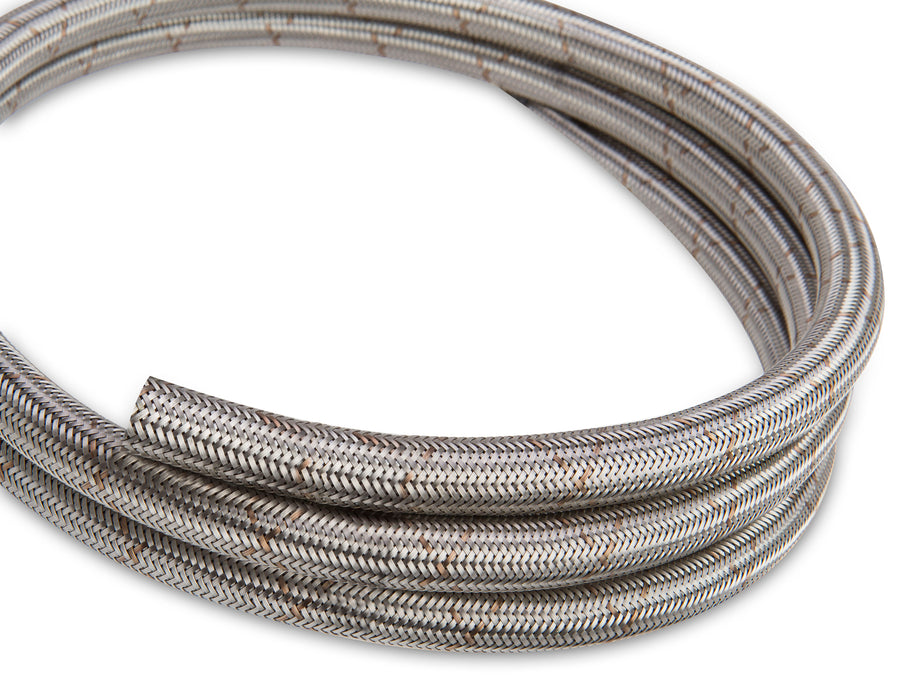

We have taken the same inner tubing of our Kevlar® hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar® hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar® Ultra-Flex line. This means that the same crimper and dies used for the Kevlar® hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.)
Earl's Performance Earl's Ultra Flex Hose Size -10 SS Braid - Hose Sold By the Foot up to 25' 660010ERL
Specifications:
| Brand | Earl's |
| Category | Air and Fuel Delivery |
| Compatible Hose Ends | Ultra-Flex |
| Crimping Die | 22MM - D10022BERL |
| Emission Code | 5 |
| Final Crimp O.D. Range | .925"-.937" |
| Fluid Type | Coolant |
| Fluid Type | Diesel |
| Fluid Type | Race Gas |
| Fluid Type | Methanol/Alcohol |
| Fluid Type | E85 |
| Fluid Type | Bio-Fuels |
| Fluid Type | Oil |
| Fluid Type | Automatic Transmission Fluid |
| Fluid Type | Pump Gas |
| Fluid Type Rating - Automatic Transmission Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels | 5 out of 5 Rating |
| Fluid Type Rating - Coolant | 5 out of 5 Rating |
| Fluid Type Rating - Diesel | 5 out of 5 Rating |
| Fluid Type Rating - E85 | 5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol | 5 out of 5 Rating |
| Fluid Type Rating - Oil | 5 out of 5 Rating |
| Fluid Type Rating - Pump Gas | 5 out of 5 Rating |
| Fluid Type Rating - Race Gas | 5 out of 5 Rating |
| Fluid Type Rating - Vacuum | 5 out of 5 Rating |
| Hose Family | Ultra-Flex |
| Hose Length | BULK |
| Hose Outer Material | Stainless Steel |
| Hose Size | 10 AN |
| Inside Diameter | .658" |
| Max Vacuum | 29 in Hg |
| Max Working PSI | 955 PSI |
| Maximum Continuous Length | 25 Feet |
| Min. Bend Radius | 1.772" |
| Outside Diameter | .819" |
| part type | Fuel Hose |
| Product Type | Hose |
| Sub Category | Fuel Storage |
| Submersible in Fuel | Yes |
| Warning | California Proposition 65 |
| Brand | Earl's |
| Category | Air and Fuel Delivery |
| Compatible Hose Ends | Ultra-Flex |
| Crimping Die | 22MM - D10022BERL |
| Emission Code | 5 |
| Final Crimp O.D. Range | .925"-.937" |
| Fluid Type | Coolant |
| Fluid Type | Diesel |
| Fluid Type | Race Gas |
| Fluid Type | Methanol/Alcohol |
| Fluid Type | E85 |
| Fluid Type | Bio-Fuels |
| Fluid Type | Oil |
| Fluid Type | Automatic Transmission Fluid |
| Fluid Type | Pump Gas |
| Fluid Type Rating - Automatic Transmission Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels | 5 out of 5 Rating |
| Fluid Type Rating - Coolant | 5 out of 5 Rating |
| Fluid Type Rating - Diesel | 5 out of 5 Rating |
| Fluid Type Rating - E85 | 5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol | 5 out of 5 Rating |
| Fluid Type Rating - Oil | 5 out of 5 Rating |
| Fluid Type Rating - Pump Gas | 5 out of 5 Rating |
| Fluid Type Rating - Race Gas | 5 out of 5 Rating |
| Fluid Type Rating - Vacuum | 5 out of 5 Rating |
| Hose Family | Ultra-Flex |
| Hose Length | BULK |
| Hose Outer Material | Stainless Steel |
| Hose Size | 10 AN |
| Inside Diameter | .658" |
| Max Vacuum | 29 in Hg |
| Max Working PSI | 955 PSI |
| Maximum Continuous Length | 25 Feet |
| Min. Bend Radius | 1.772" |
| Outside Diameter | .819" |
| part type | Fuel Hose |
| Product Type | Hose |
| Sub Category | Fuel Storage |
| Submersible in Fuel | Yes |
| Warning | California Proposition 65 |
| Description_INV | -10 ULTRA-FLEX S/S HOSE |
| Description_ASC | Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse. |
| Description_DES | Earl's Ultra Flex Hose Size -10 SS Braid - Hose Sold By the Foot up to 25' |
| Description_EXT | Maximum operating pressure of 995 PSI. Ultra-light Stainless Steel Outer Braided hose, 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Designed for Ultra Flex Hose Ends. |
| Description_MKT | We have taken the same inner tubing of our Kevlar® hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar® hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar® Ultra-Flex line. This means that the same crimper and dies used for the Kevlar® hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.) |
| Description_FAB | Sold per foot |
| Description_INV | -10 ULTRA-FLEX S/S HOSE |
| Description_ASC | Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse. |
| Description_DES | Earl's Ultra Flex Hose Size -10 SS Braid - Hose Sold By the Foot up to 25' |
| Description_EXT | Maximum operating pressure of 995 PSI. Ultra-light Stainless Steel Outer Braided hose, 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Designed for Ultra Flex Hose Ends. |
| Description_MKT | We have taken the same inner tubing of our Kevlar® hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar® hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar® Ultra-Flex line. This means that the same crimper and dies used for the Kevlar® hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.) |
| Description_FAB | Sold per foot |
