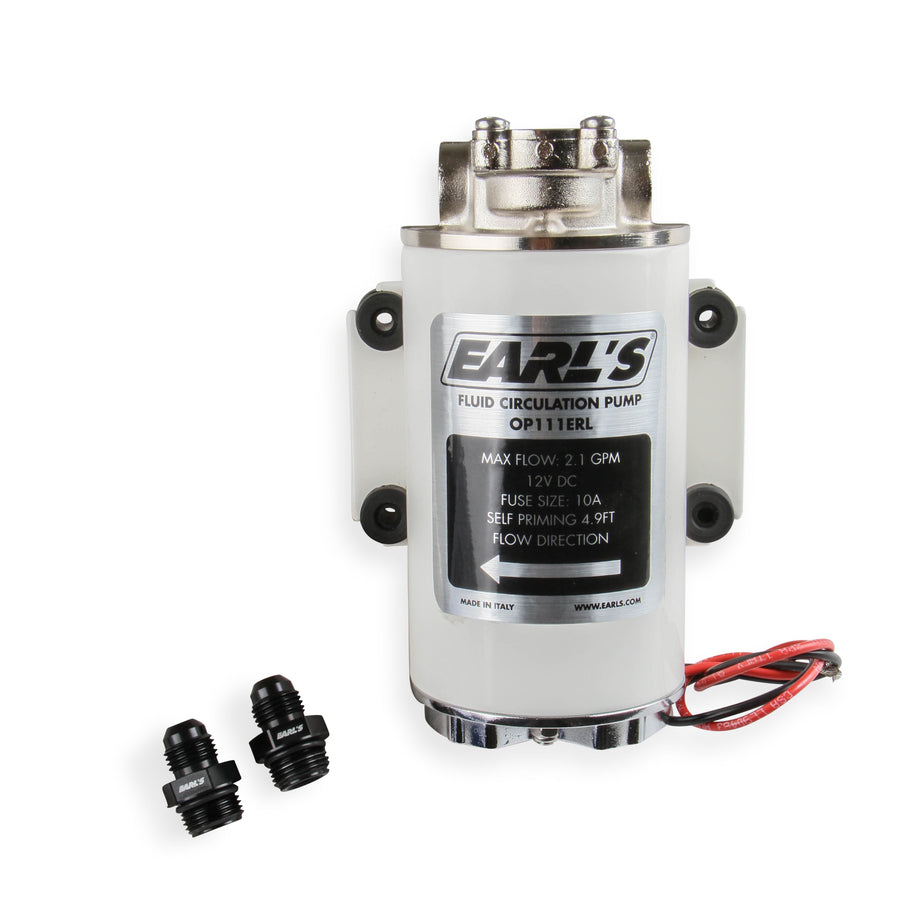

Earl's Performance Earl's Electric Oil Pump - 12 VDC OP111ERL
Specifications:
| Adapter AN Size ( A ) | 6 AN MALE |
| Adapter Port Size ( B ) | 3/8 BSPP MALE |
| AMP DRAW | 10 |
| Brand | Earl's |
| Category | Plumbing AN Fittings and Hose |
| Depth | 3.75" |
| Emission Code | 5 |
| Finish | White w/ Nickel Plating |
| Free Flow GPM (12v) | Up to 2.1 |
| Height | 6.5" |
| Material | Steel Pump w/ Brass Housing |
| Max Pressure | 72.5 PSI |
| Mounting Bolt Pattern | 4-Bolt 2.25" x 3.75" |
| Product Type | Oil Pump |
| Seal Material | FKM |
| Temperature Range | 14 to 265° F |
| Voltage | 12 VDC |
| Warning | California Proposition 65 |
| Weight | 5.5 lb |
| Width | 4.625" |
| Adapter AN Size ( A ) | 6 AN MALE |
| Adapter Port Size ( B ) | 3/8 BSPP MALE |
| AMP DRAW | 10 |
| Brand | Earl's |
| Category | Plumbing AN Fittings and Hose |
| Depth | 3.75" |
| Emission Code | 5 |
| Finish | White w/ Nickel Plating |
| Free Flow GPM (12v) | Up to 2.1 |
| Height | 6.5" |
| Material | Steel Pump w/ Brass Housing |
| Max Pressure | 72.5 PSI |
| Mounting Bolt Pattern | 4-Bolt 2.25" x 3.75" |
| Product Type | Oil Pump |
| Seal Material | FKM |
| Temperature Range | 14 to 265° F |
| Voltage | 12 VDC |
| Warning | California Proposition 65 |
| Weight | 5.5 lb |
| Width | 4.625" |
| Description_INV | EARLS DIFF/TRANS FLUID CIRCULATION PUMP |
| Description_ASC | Allow oil to warm up before turning on pump, or wire with temperature switch. |
| Description_DES | Earl's Electric Oil Pump - 12 VDC |
| Description_EXT | 12-Volt DC Electric Oil Circulation Pump w/ 3/8" BSPP (British Standard Pipe Parallel) straight thread Female Ports |
| Description_MKT | Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends. |
| Description_FAB | Use w/ Relay & Fuse (available separately) |
| Description_INV | EARLS DIFF/TRANS FLUID CIRCULATION PUMP |
| Description_ASC | Allow oil to warm up before turning on pump, or wire with temperature switch. |
| Description_DES | Earl's Electric Oil Pump - 12 VDC |
| Description_EXT | 12-Volt DC Electric Oil Circulation Pump w/ 3/8" BSPP (British Standard Pipe Parallel) straight thread Female Ports |
| Description_MKT | Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends. |
| Description_FAB | Use w/ Relay & Fuse (available separately) |
