Maximum performance/full competition, unlimited oval and super classes. 7,000+ RPM, 400+ cubic inch engines. Dart PRO1 23 Deg 227cc CNC heads are professional quality competition cylinder heads. We applied the airflow technology developed in our championship winning Pro Stock engine program to produce these state of the art heads. Every intake port, every exhaust runner, every valve bowl and every combustion chamber is 100% CNC machined on special dedicated PRO1 castings. These heads are ideal for high compression, big cubic inch small blocks and are great for supercharged applications. Standard valve angle and spacing are retained to allow use of off the shelf pistons and valve train components. Hardened exhaust seats are compatible with unleaded gasoline. Manganese Bronze valve guides extend cylinder head life.

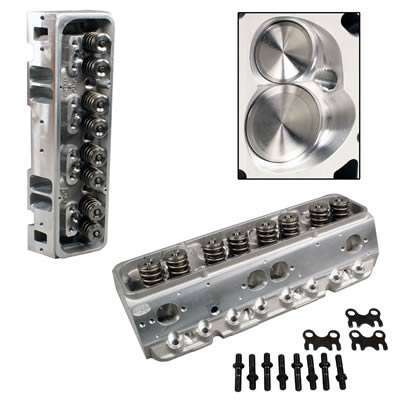

Dart Dart Pro1 CNC Aluminum Big Block Chevy Cylinder Heads 11971143P
Specifications:
| Description_ASC | Dart Pro1 CNC Aluminum Big Block Chevy Cylinder Heads |
| Description_DEF | Engine Cylinder Head |
| Description_DES | Pro1 CNC Aluminum Big Block Chevy Cylinder Heads |
| Description_EXT | Dart Pro1 CNC Aluminum Big Block Chevy Cylinder Heads |
| Description_FAB | Heads are sold individually |
| Description_INV | PRO1 227 CNC/64 2.08/1.60/1.550 PLATINUM |
| Description_LAB | Pro1 Chevrolet Big Block Head - 227.00 CC Port, 66.00 CC Chamber |
| Description_MKT | Maximum performance/full competition, unlimited oval and super classes. 7,000+ RPM, 400+ cubic inch engines. Dart PRO1 23 Deg 227cc CNC heads are professional quality competition cylinder heads. We applied the airflow technology developed in our championship winning Pro Stock engine program to produce these state of the art heads. Every intake port, every exhaust runner, every valve bowl and every combustion chamber is 100% CNC machined on special dedicated PRO1 castings. These heads are ideal for high compression, big cubic inch small blocks and are great for supercharged applications. Standard valve angle and spacing are retained to allow use of off the shelf pistons and valve train components. Hardened exhaust seats are compatible with unleaded gasoline. Manganese Bronze valve guides extend cylinder head life. |
| Description_SHO | Cylinder Head |
| Industry | Automotive |
| Title | Pro1 Chevrolet Big Block Head - 227.00 CC Port, 66.00 CC Chamber |
| CNC Ported | Yes |
| Combustion Chamber Volume | 66.00 |
| Exhaust Valve Diameter | 1.600 |
| Intake Valve Diameter | 2.080 |
| Material | RMR Cast Aluminum Alloy |
| Port Volume | 227.00 |
| Valve Angle | 23 |
| Valve Spring Diameter | 1.550 |
| Valve Spring Maximum Lift | 0.700 |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Engine Type | ICE |
| Valve Spring Type | Double |
| Product Type | Engine Cylinder Head |
| Make | Chevrolet |
| Engine | Big Block |
| Make - Web | Chevrolet |
| Engine - Web | Big Block |
| Cylinder Head Series | Pro1 |
| Title - Web | Pro1 Chevrolet Big Block Head - 227.00 CC Port, 66.00 CC Chamber |
| Category Hierarchy | Heads>Big Block Chevy>Pro1 |
| Cylinder Head Material | RMR Cast Aluminum Alloy |
| Intake Runner Volume | 227.00 |
| EBAY Category ID | 33617 |
