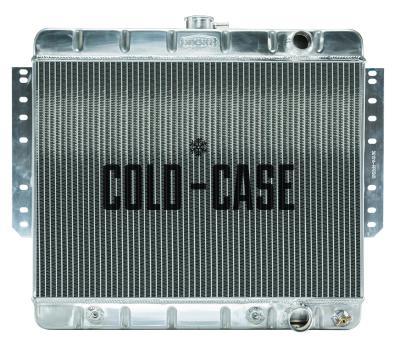

1961-1965 Chevy Impala Aluminum Performance Radiator. For cars with a 500 steering box. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator!
It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Fits:
- 61-65 Impala with 500 Steering Box
- Details:
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/maunal trans
- Direct fitment for 61-65 Impala with 500 steering box
Radiator Specs
- Core Height 17.5 inch
- Core Width 18.5 inch
- Overall Height 23 inch
- Overall Width 28.75 inch
- Overall Thickness 3 inch
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
- Tubes (2) 1.25 inch Tubes
COLD-CASE Radiators Impala Radiator 61-65 Impala 500 Box Aluminum Performance Radiator and Dual 12 Inch Fans Kit Cold Case Radiators CHI565A-5K
Specifications:
| Country of Origin | CHN |
| Sold As | Kit |
| UPC | 846861013243 |
| Availability | Available |
| Thickness | 6.75 Inch |
| Universal | No |
| Fan Diamter (in) | 12 Inch |
| Fan Included y/n | Yes |
| Fan Quantity | 2 |
| Includes | Includes radiator, fans and shroud |
| Max Fan CFM | 3200 CFM |
| Overall Width | 28.75 Inch |
| Core Height | 17.5 Inch |
| Core Width | 18.5 Inch |
| Overall Height | 23 Inch |
| Upper Hose | 1.50 Inch |
| Lower Hose | 1.75 Inch |
| Fins Per Inch | 16 |
| Shroud Included | Yes |
| Trans Cooler Fitting Size | 5/16 Inch Inverted Flare |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1961 | Chevrolet | Impala | ||
| 1962 | Chevrolet | Impala | ||
| 1963 | Chevrolet | Impala | ||
| 1964 | Chevrolet | Impala | ||
| 1965 | Chevrolet | Impala | ||
| 1964 | Chevrolet | Impala | SS | |
| 1965 | Chevrolet | Impala | SS |
