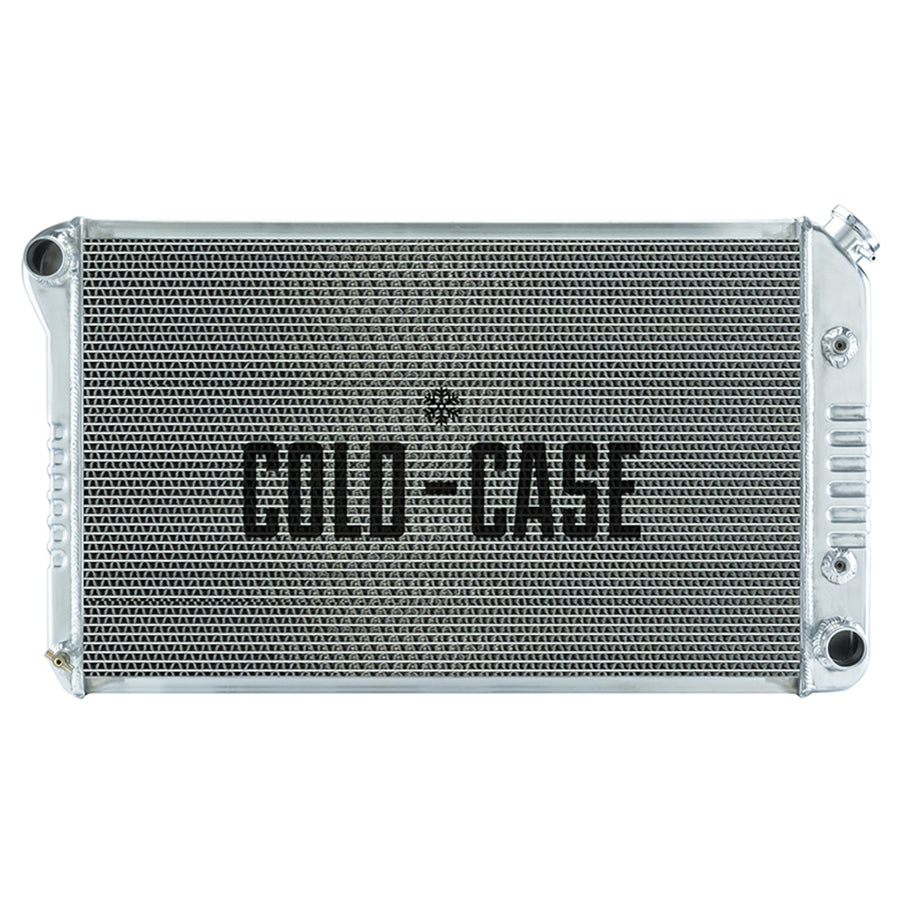

1970-1981 Pontiac Firebird Trans Am Aluminum Performance Radiator. Auto Trans Cars. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Auto transmission
- Direct fitment for 70-81 Firebird Trans Am
- Old Part Number: RFE18L
Radiator Specs
- Core Height 18.4 inch
- Core Width 27.5 inch
- Overall Height 18.8 inch
- Overall Width 33.2 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.57 inch
- Lower Hose 1.57 inch
COLD-CASE Radiators Firebird Radiator 70-81 Firebird Auto Transmission Aluminum Cold Case Radiators GPF18A
Specifications:
| Country of Origin | CHN |
| Sold As | Each |
| UPC | 846861011904 |
| Availability | Available |
| Thickness | 3.0 Inch |
| Universal | No |
| Fits | 70-81 Firebird AT |
| Overall Width | 33.2 Inch |
| Old Part Number | RFE19LTF |
| Core Height | 18.4 Inch |
| Core Width | 27.5 Inch |
| Overall Height | 18.8 Inch |
| Upper Hose | 1.57 Inch |
| Lower Hose | 1.57 Inch |
| Fins Per Inch | 16 |
| Trans Cooler Fitting Size | 5/16 Inch Inverted Flare |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1970 | Pontiac | Firebird | ||
| 1971 | Pontiac | Firebird | ||
| 1972 | Pontiac | Firebird | ||
| 1973 | Pontiac | Firebird | ||
| 1974 | Pontiac | Firebird | ||
| 1975 | Pontiac | Firebird | ||
| 1976 | Pontiac | Firebird | ||
| 1977 | Pontiac | Firebird | ||
| 1978 | Pontiac | Firebird | ||
| 1979 | Pontiac | Firebird | ||
| 1980 | Pontiac | Firebird | ||
| 1981 | Pontiac | Firebird | ||
| 1970 | Pontiac | Firebird | Esprit | |
| 1971 | Pontiac | Firebird | Esprit | |
| 1972 | Pontiac | Firebird | Esprit | |
| 1973 | Pontiac | Firebird | Esprit | |
| 1974 | Pontiac | Firebird | Esprit | |
| 1975 | Pontiac | Firebird | Esprit | |
| 1976 | Pontiac | Firebird | Esprit | |
| 1977 | Pontiac | Firebird | Esprit | |
| 1978 | Pontiac | Firebird | Esprit | |
| 1979 | Pontiac | Firebird | Esprit | |
| 1980 | Pontiac | Firebird | Esprit | |
| 1981 | Pontiac | Firebird | Esprit | |
| 1970 | Pontiac | Firebird | Formula | |
| 1971 | Pontiac | Firebird | Formula | |
| 1972 | Pontiac | Firebird | Formula | |
| 1973 | Pontiac | Firebird | Formula | |
| 1974 | Pontiac | Firebird | Formula | |
| 1975 | Pontiac | Firebird | Formula | |
| 1976 | Pontiac | Firebird | Formula | |
| 1977 | Pontiac | Firebird | Formula | |
| 1978 | Pontiac | Firebird | Formula | |
| 1979 | Pontiac | Firebird | Formula | |
| 1980 | Pontiac | Firebird | Formula | |
| 1981 | Pontiac | Firebird | Formula | |
| 1970 | Pontiac | Firebird | Trans Am | |
| 1971 | Pontiac | Firebird | Trans Am | |
| 1972 | Pontiac | Firebird | Trans Am | |
| 1973 | Pontiac | Firebird | Trans Am | |
| 1974 | Pontiac | Firebird | Trans Am | |
| 1975 | Pontiac | Firebird | Trans Am | |
| 1976 | Pontiac | Firebird | Trans Am | |
| 1977 | Pontiac | Firebird | Trans Am | |
| 1978 | Pontiac | Firebird | Trans Am | |
| 1979 | Pontiac | Firebird | Trans Am | |
| 1980 | Pontiac | Firebird | Trans Am | |
| 1981 | Pontiac | Firebird | Trans Am |
