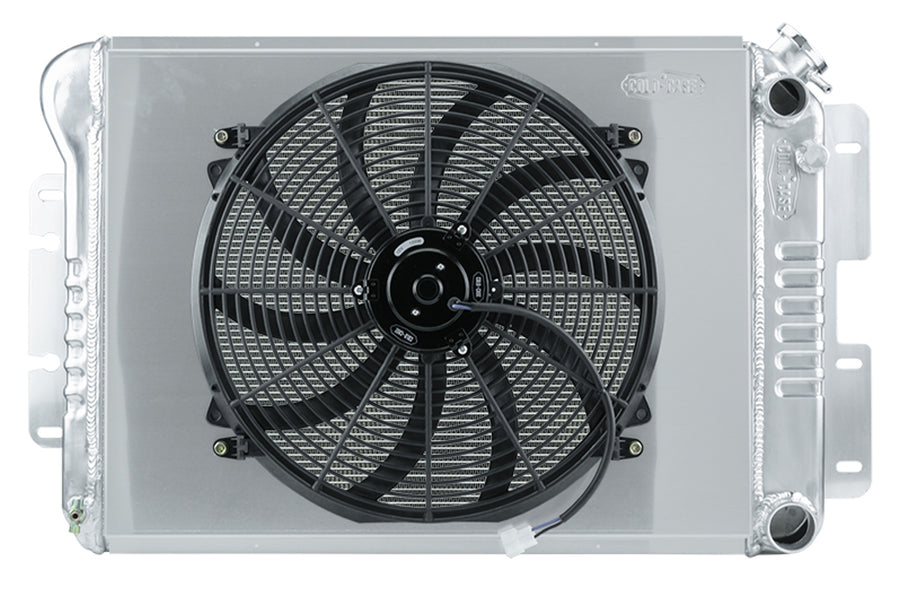

67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- Dual Flow Design
- Direct fitment for 67-69 F-Body cars with LS motors
- Old Part Number: RPE547AK
Radiator Specs
- Core Height 16.85 inch
- Core Width 23 inch
- Overall Height 19 inch
- Overall Width 30 inch
- Overall Thickness 6 inch
- Upper Hose 1.22 inch
- Lower Hose 1.37 inch
- Tubes (2) 1.25 inch Tubes
COLD-CASE Radiators 67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit Cold Case Radiators CHC547AK
Specifications:
| Country of Origin | CHN |
| Sold As | Kit |
| UPC | 846861015735 |
| Availability | Available |
| Thickness | 6.75 Inch |
| Universal | No |
| Blade Material | Curved Nylon |
| Cylinders | 8 Cylinder |
| Fan Diamter (in) | 16 Inch |
| Fan Included y/n | Yes |
| Fan Quantity | 1 |
| Fits | 67-69 F-Body LS Swap 16 Inch |
| Includes | Includes radiator, fans and shroud |
| Max Fan CFM | 2800 CFM |
| Wiring Included | No |
| Old Part Number | RPE547AK |
| Shroud Included | Yes |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1967 | Pontiac | Firebird | 400 | |
| 1968 | Pontiac | Firebird | 400 | |
| 1969 | Pontiac | Firebird | 400 | |
| 1967 | Pontiac | Firebird | ||
| 1968 | Pontiac | Firebird | ||
| 1969 | Pontiac | Firebird | ||
| 1967 | Chevrolet | Camaro | ||
| 1968 | Chevrolet | Camaro | ||
| 1969 | Chevrolet | Camaro | ||
| 1967 | Pontiac | Firebird | HO | |
| 1967 | Chevrolet | Camaro | RS | |
| 1968 | Chevrolet | Camaro | RS | |
| 1969 | Chevrolet | Camaro | RS | |
| 1967 | Pontiac | Firebird | Sprint | |
| 1968 | Pontiac | Firebird | Sprint | |
| 1969 | Pontiac | Firebird | Sprint | |
| 1967 | Chevrolet | Camaro | SS | |
| 1968 | Chevrolet | Camaro | SS | |
| 1969 | Chevrolet | Camaro | SS | |
| 1967 | Chevrolet | Camaro | Z28 | |
| 1968 | Chevrolet | Camaro | Z28 | |
| 1969 | Chevrolet | Camaro | Z28 | |
| 1968 | Pontiac | Firebird | 350 | |
| 1969 | Pontiac | Firebird | 350 | |
| 1969 | Pontiac | Firebird | 350 HO | |
| 1969 | Pontiac | Firebird | Trans Am |
