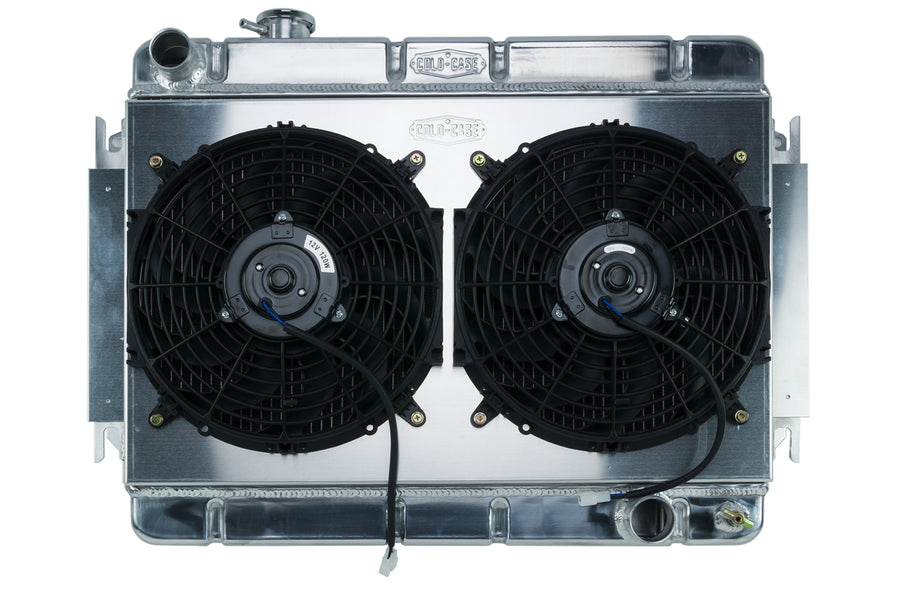

66-67 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit AT Transmission. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1.25 Inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Atuomatice trans
- Direct fitment for 66-67 Chevelle/El Camino
- Old Part Number: RPE542K
Radiator Specs
- Core Height 15.4 Inch
- Core Width 24.7 Inch
- Overall Height 20.5 Inch
- Overall Width 27.75 brackets Inch
- Overall Thickness 6 Inch
- Tubes (2) 1.25 Inch Tubes
- Upper Hose 1.57 Inch
- Lower Hose 1.77 Inch
COLD-CASE Radiators 66-67 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit AT Cold Case Radiators CHE542AK
Specifications:
| Country of Origin | CHN |
| Sold As | Kit |
| UPC | 846861015773 |
| Availability | Available |
| Thickness | 6.75 Inch |
| Universal | No |
| Blade Material | Curved Nylon |
| Cylinders | 8 Cylinder |
| Fan Diamter (in) | 12 Inch |
| Fan Included y/n | Yes |
| Fan Quantity | 2 |
| Fits | 66-67 Chevelle/El Camino AT Dual 12 Inch |
| Includes | Includes radiator, fans and shroud |
| Max Fan CFM | 3200 CFM |
| Overall Width | 27.75 Inch |
| Wiring Included | No |
| Old Part Number | RPE542AK |
| Core Height | 15.4 Inch |
| Core Width | 24.7 Inch |
| Overall Height | 20.5 Inch |
| Upper Hose | 1.57 Inch |
| Lower Hose | 1.77 Inch |
| Fins Per Inch | 16 |
| Shroud Included | Yes |
| Trans Cooler Fitting Size | 5/16 Inch Inverted Flare |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1966 | Chevrolet | El Camino | ||
| 1967 | Chevrolet | El Camino | ||
| 1966 | Chevrolet | Chevelle | ||
| 1967 | Chevrolet | Chevelle | ||
| 1966 | Chevrolet | Chevelle | Deluxe | |
| 1967 | Chevrolet | Chevelle | Deluxe | |
| 1966 | Chevrolet | Chevelle | SS | |
| 1967 | Chevrolet | Chevelle | SS | |
| 1967 | Chevrolet | Chevelle | 300 | |
| 1967 | Chevrolet | Chevelle | 300 Deluxe | |
| 1967 | Chevrolet | Chevelle | Concours |
