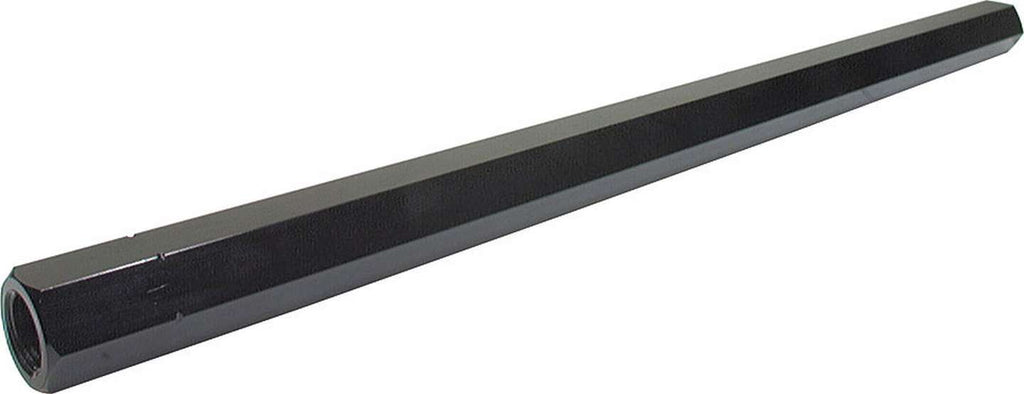

The Allstar Performance 3/4 Aluminum Hex Tube ALL56744 is a 44 in long suspension tube with a 1-1/8 in hex profile, machined from 6061-T6 aluminum and finished in black anodize for corrosion resistance. Both ends are tapped 3/4-16, one right hand and one left hand, so the tube threads onto matching rod ends for length adjustment.
This hex tube is intended for chassis fabrication work such as radius rods, panhard bars, and other adjustable suspension links where a hex profile makes wrench-flat adjustment easier than a round tube.
Spec Sheet: Download PDF
FAQ
What size hex tube is the Allstar Performance ALL56744?
The ALL56744 has a 1-1/8 in hex profile and measures 44 in long overall.
What thread does the ALL56744 hex tube use?
Both ends are tapped 3/4-16, with one end right hand thread and the other left hand thread, allowing the tube to be threaded onto matching rod ends for fine length adjustment.
What material and finish is the ALL56744 hex tube made from?
It is machined from 6061-T6 aluminum and finished in black anodize for appearance and corrosion resistance.
What is the ALL56744 hex tube used for?
It is used as raw fabrication stock for building adjustable suspension links, radius rods, and similar chassis components where a hex-shaped tube simplifies wrench-flat length adjustment.
