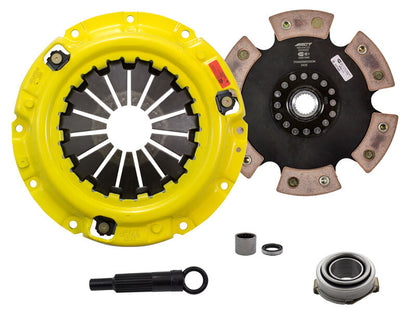

The ACT ZX2-HDR6 Heavy Duty Race Rigid 6 Pad Clutch Kit pairs ACT's most popular Heavy Duty pressure plate with a 6-pad rigid race disc for the first-generation Mazda RX-7. The Heavy Duty pressure plate uses an exclusive diaphragm design to increase clamp load and reduce deflection, with every diaphragm undergoing ACT's four-stage heat-treating process and precision cover stampings for rigidity and consistency. The 6-pad rigid race disc uses high-quality ceramic friction material on a heat-treated chrome-moly hub; the lightweight rigid design allows for quicker shifts and smooth, trouble-free service. Engagement is harsher and shifting is faster than a spring-centered disc, and the 6-pad configuration is recommended for larger clutch sizes that need to absorb more heat.
WarrantyInstallation Instructions
Specifications:
- Pressure Plate: ACT Heavy Duty, four-stage heat-treated diaphragm
- Disc: 6-Pad Rigid Race Disc, ceramic friction material
- Hub: Rigid, heat-treated chrome-moly
- Includes: Pressure plate, 6-pad rigid race disc, alignment tool (pilot bearing and release bearing included on some applications)
- Recommended Use: Race use, larger clutch sizes needing higher heat absorption
- Part Number: ZX2-HDR6
Vehicle Applications:
- 1983 Mazda RX-7 GS
- 1983 Mazda RX-7 GSL
- 1983 Mazda RX-7 Limited Edition
- 1983 Mazda RX-7 S
- 1984 Mazda RX-7 GS
- 1984 Mazda RX-7 GSL
- 1984 Mazda RX-7 GSL-SE
- 1984 Mazda RX-7 S
- 1985 Mazda RX-7 GS
- 1985 Mazda RX-7 GSL
- 1985 Mazda RX-7 GSL-SE
- 1985 Mazda RX-7 S
- 1986 Mazda RX-7 Base
- 1986 Mazda RX-7 GXL
- 1987 Mazda RX-7 Base
- 1987 Mazda RX-7 Base 2+2
- 1987 Mazda RX-7 GXL
- 1987 Mazda RX-7 GXL 2+2
- 1987 Mazda RX-7 LX
- 1987 Mazda RX-7 LX 2+2
- 1987 Mazda RX-7 Sport
- 1988 Mazda RX-7 Convertible
- 1988 Mazda RX-7 GTU
- 1988 Mazda RX-7 GXL
- 1988 Mazda RX-7 GXL 2+2
- 1988 Mazda RX-7 SE
- 1988 Mazda RX-7 SE 2+2
- 1989 Mazda RX-7 Convertible
- 1989 Mazda RX-7 GTU
- 1989 Mazda RX-7 GTUs
- 1989 Mazda RX-7 GXL
- 1989 Mazda RX-7 GXL 2+2
- 1990 Mazda RX-7 Convertible
- 1990 Mazda RX-7 GTU
- 1990 Mazda RX-7 GTUs
- 1990 Mazda RX-7 GXL
- 1990 Mazda RX-7 GXL 2+2
- 1991 Mazda RX-7 Base
- 1991 Mazda RX-7 Convertible
Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
FAQ
What's the benefit of a rigid disc over a spring-centered disc?
The rigid, ceramic-faced disc on a heat-treated chrome-moly hub is lighter and allows quicker shifts than a spring-centered disc, at the cost of some torsional damping.
Does this kit cover both the 1983-1985 SA22C and 1986-1991 FC RX-7 chassis?
Yes, the ZX2-HDR6 spans both first-generation RX-7 chassis, from the 1983 GS/GSL/S/Limited Edition trims through the 1991 Base and Convertible trims.
Does the kit include a pilot bearing and release bearing?
Pilot bearing and release bearing are included on applications where the vehicle requires them.
Does this kit fit the 1987 GXL 2+2 RX-7?
Yes, the ZX2-HDR6 covers the 1987-1990 GXL 2+2 trim along with the full range of Base, Convertible, GS, GSL, GSL-SE, GTU, GTUs, GXL, Limited Edition, LX, S, SE, and Sport trims across the confirmed 1983-1991 fitment range.
