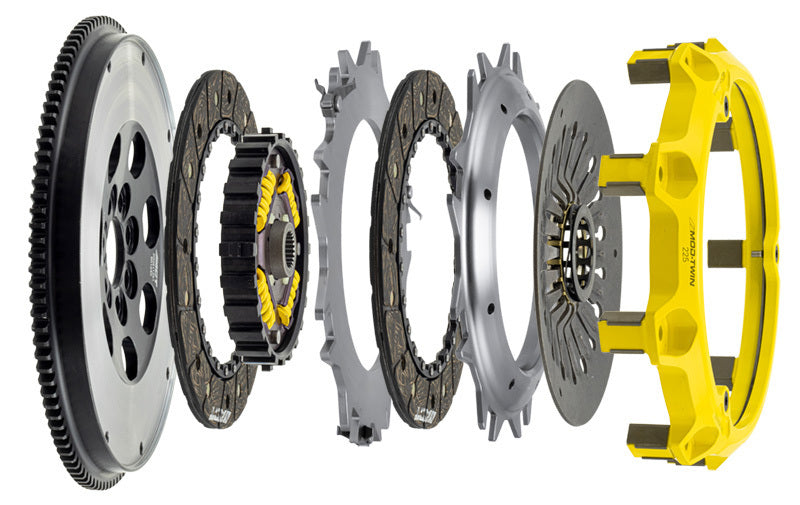

ACT's T2S-M05 Mod-Twin 225 XT Sprung Street Kit combines two organic friction surfaces with a sprung Mono-Drive hub in a fully modular twin-disc design, built for high-powered AWD street cars that need very high torque capacity without giving up pedal feel. Each diaphragm spring goes through ACT's four-stage heat-treating process for a consistent, light pedal. Steel-backed friction plates deliver a stable friction coefficient, strong heat capacity, and long clutch life, transferring torque uniformly into the sprung Mono-Drive hub to extend input shaft life and reduce driveline shock from torsional vibration. The kit ships complete with a CNC-machined, dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, Monoloc collar, release bearing, alignment tool, and pilot bearing (if needed). Every Mod-Twin clutch is fully rebuildable, and most components can be ordered separately.
WarrantyInstallation Instructions
Specifications:
- Kit Type: Mod-Twin 225 XT Sprung Street Kit
- Hub: Sprung Mono-Drive
- Torque Capacity: 875 ft/lbs (measured at engine/crank)
- Includes: Flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, Monoloc collar, release bearing, alignment tool, pilot bearing (if needed)
- Warranty: One-year manufacturer warranty
- Part Number: T2S-M05
Vehicle Applications:
- 2015 Mitsubishi Lancer Evolution Final Edition
- 2008 Mitsubishi Lancer Evolution GSR
- 2010 Mitsubishi Lancer Evolution GSR
- 2011 Mitsubishi Lancer Evolution GSR
- 2012 Mitsubishi Lancer Evolution GSR
- 2013 Mitsubishi Lancer Evolution GSR
- 2014 Mitsubishi Lancer Evolution GSR
- 2015 Mitsubishi Lancer Evolution GSR
This product can expose you to chemicals including carbon black, glass wool fibers, and silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Frequently Asked Questions
What does the ACT T2S-M05 kit include?
It ships complete with a CNC-machined flywheel, pressure plate, sprung Mono-Drive hub assembly, friction plates, release bearing, alignment tool, Monoloc collar, and pilot bearing if needed.
What vehicles does the T2S-M05 fit?
It fits the 2008, 2010-2015 Mitsubishi Lancer Evolution X GSR and the 2015 Evolution X Final Edition, on 5-speed-only applications.
How does the T2S-M05 differ from the T1S-M05?
The T2S-M05 uses ACT's XT friction material for a higher 875 ft/lbs torque capacity, versus 700 ft/lbs for the HD-spec T1S-M05.
Does the T2S-M05 include a warranty?
Yes, it is backed by ACT's one-year manufacturer warranty.
