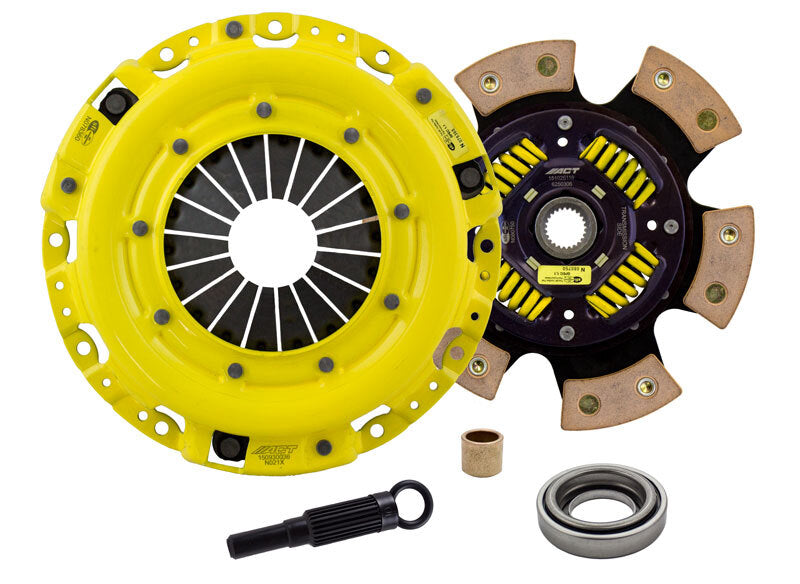

The NZ1-XTG6 kit pairs an ACT Xtreme pressure plate with a 6-pad spring-centered race disc, sized for the VQ35DE-equipped 350Z and G35. The Xtreme pressure plate uses ACT's exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life; every diaphragm goes through a four-stage heat-treating process, and cover stampings are precision-made for rigidity and consistency. The 6-pad spring-centered race disc uses a spring-center construction to damp torsional vibration and resist failure under hard use, with wraparound spring windows and thicker retainer stampings for added strength. Engagement is firmer than a street disc, but shifts are quicker, and the larger pad design helps the disc absorb more heat.
WarrantyInstallation Instructions
- Backed by ACT's one-year "Excellence in Performance" warranty
Specifications
- Pressure Plate: ACT Xtreme, four-stage heat-treated diaphragm, precision cover stamping
- Disc: 6-pad spring-centered race disc
- Recommended Use: Race and aggressive street driving; recommended for larger clutch sizes needing to absorb more heat
- Engagement: Firmer engagement, faster shifting than a street disc
- Part Number: NZ1-XTG6
Vehicle Applications
| Year | Make | Model | Trim |
|---|---|---|---|
| 2003 | INFINITI | G35 | Base |
| 2004 | INFINITI | G35 | Base |
| 2005 | INFINITI | G35 | Base |
| 2006 | INFINITI | G35 | Base |
| 2005 | Nissan | 350Z | 35th Anniversary Edition |
| 2003 | Nissan | 350Z | Base |
| 2004 | Nissan | 350Z | Base |
| 2005 | Nissan | 350Z | Base |
| 2006 | Nissan | 350Z | Base |
| 2003 | Nissan | 350Z | Enthusiast |
| 2004 | Nissan | 350Z | Enthusiast |
| 2005 | Nissan | 350Z | Enthusiast |
| 2006 | Nissan | 350Z | Enthusiast |
| 2005 | Nissan | 350Z | Grand Touring |
| 2006 | Nissan | 350Z | Grand Touring |
| 2003 | Nissan | 350Z | Performance |
| 2004 | Nissan | 350Z | Performance |
| 2005 | Nissan | 350Z | Performance |
| 2003 | Nissan | 350Z | Touring |
| 2004 | Nissan | 350Z | Touring |
| 2005 | Nissan | 350Z | Touring |
| 2006 | Nissan | 350Z | Touring |
| 2003 | Nissan | 350Z | Track |
| 2004 | Nissan | 350Z | Track |
| 2005 | Nissan | 350Z | Track |
| 2006 | Nissan | 350Z | Track |
FAQ
What does XT/Race Sprung 6 Pad mean?
It refers to the pairing in this kit: an ACT Xtreme pressure plate matched to a 6-pad spring-centered race disc for maximum clamp load and quicker shifting than a street setup.
Does this kit fit the INFINITI G35?
Yes, NZ1-XTG6 covers the 2003-2006 G35 Base along with the applicable 350Z trims listed in the Vehicle Applications table.
Is this kit streetable?
It can be driven on the street, but engagement is noticeably firmer than a street disc; it is intended for drivers prioritizing quick shifts and heat capacity over smooth engagement.
What's included in the kit?
The kit includes the ACT Xtreme pressure plate and the 6-pad spring-centered race disc sized for this application.
