The NX1-HDSS kit pairs ACT's most popular Heavy Duty pressure plate with ACT's most popular street disc, sized for a range of Nissan L/KA/CA-series-equipped chassis. The Heavy Duty pressure plate uses ACT's exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life; every diaphragm goes through a four-stage heat-treating process, and cover stampings are precision-made for rigidity and consistency. The Performance Street disc uses premium organic friction material with high copper content for better heat transfer, plus a steel-backed lining for greater burst strength and durability. Reduced marcel gives faster shift action while keeping engagement smooth for daily driving.
WarrantyInstallation Instructions
- Backed by ACT's one-year "Excellence in Performance" warranty
Specifications
- Pressure Plate: ACT Heavy Duty, four-stage heat-treated diaphragm, precision cover stamping
- Disc: Performance Street sprung disc, organic high-copper-content lining, steel-backed
- Recommended Use: Daily-driven street performance with smoother engagement than a race disc
- Part Number: NX1-HDSS
Vehicle Applications
| Year | Make | Model | Trim |
|---|---|---|---|
| 1995 | Nissan | 240SX | Base |
| 1996 | Nissan | 240SX | Base |
| 1997 | Nissan | 240SX | Base |
| 1998 | Nissan | 240SX | Base |
| 1997 | Nissan | 240SX | LE |
| 1998 | Nissan | 240SX | LE |
| 1989 | Nissan | 240SX | SE |
| 1990 | Nissan | 240SX | SE |
| 1995 | Nissan | 240SX | SE |
| 1996 | Nissan | 240SX | SE |
| 1997 | Nissan | 240SX | SE |
| 1998 | Nissan | 240SX | SE |
| 1989 | Nissan | 240SX | XE |
| 1990 | Nissan | 240SX | XE |
| 1975 | Nissan | 280Z | Base |
| 1976 | Nissan | 280Z | Base |
| 1977 | Nissan | 280Z | Base |
| 1978 | Nissan | 280Z | Base |
| 1979 | Nissan | 280ZX | Base |
| 1980 | Nissan | 280ZX | Base |
| 1981 | Nissan | 280ZX | Base |
| 1982 | Nissan | 280ZX | Base |
| 1983 | Nissan | 280ZX | Base |
| 1980 | Nissan | 280ZX | GL |
| 1981 | Nissan | 280ZX | GL |
| 1975 | Nissan | 620 | Base |
| 1976 | Nissan | 620 | Base |
| 1977 | Nissan | 620 | Base |
| 1978 | Nissan | 620 | Base |
| 1979 | Nissan | 620 | Base |
| 1980 | Nissan | 720 | Base |
| 1981 | Nissan | 720 | Base |
| 1982 | Nissan | 720 | Base |
| 1983 | Nissan | 720 | Base |
| 1980 | Nissan | 720 | Deluxe |
| 1981 | Nissan | 720 | Deluxe |
| 1982 | Nissan | 720 | Deluxe |
| 1983 | Nissan | 720 | Deluxe |
| 1984 | Nissan | 720 | Deluxe |
| 1985 | Nissan | 720 | Deluxe |
| 1986 | Nissan | 720 | Deluxe |
| 1990 | Nissan | Axxess | SE |
| 1990 | Nissan | Axxess | XE |
| 1982 | Nissan | Maxima | GL |
| 1983 | Nissan | Maxima | GL |
| 1984 | Nissan | Maxima | GL |
FAQ
How is HD/Perf Street different from HD/Race?
This kit uses ACT's Performance Street disc instead of a race disc, giving smoother, quieter engagement suited to daily driving while retaining the Heavy Duty pressure plate's added clamp load.
Does this kit fit both S13 240SX and older Datsun models?
Yes, NX1-HDSS is shared across the S13 240SX and several older Nissan/Datsun applications listed in the Vehicle Applications table.
Is this a good daily-driver clutch?
Yes, this pairing is intended for street use with a moderate power increase over stock, keeping pedal feel and engagement close to OE.

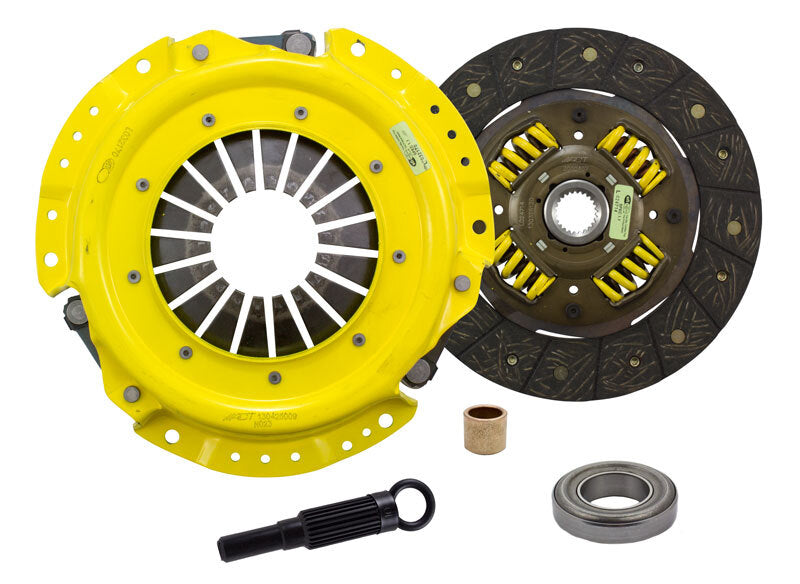

What's included in the kit?
The kit includes the ACT Heavy Duty pressure plate and the Performance Street sprung disc sized for this application.
