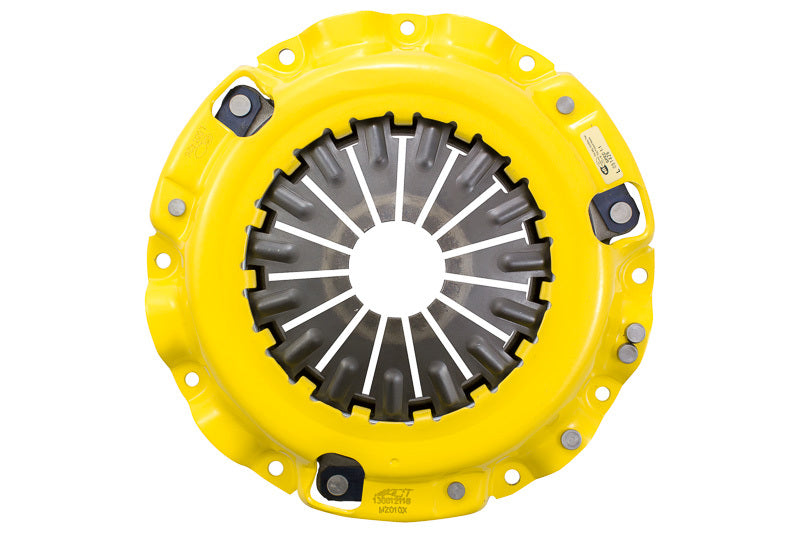

The MZ010XX is an ACT MaXX Xtreme pressure plate sized for the shared Mazda 2.2L/Chrysler-Mitsubishi turbo platform used across the Ford Probe GT, Mazda 626/MX-6/RX-7/929, Chrysler Conquest, and Mitsubishi Starion. It uses ACT's exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life; every diaphragm goes through a four-stage heat-treating process, and the cover stamping is precision-made for rigidity and consistency. MaXX Xtreme pressure plates increase clamp load by 70 to 150 percent over stock and are recommended for use with a race disc.
WarrantyInstallation Instructions
- Backed by ACT's one-year "Excellence in Performance" warranty
Specifications
- Type: MaXX Xtreme pressure plate only (no disc included)
- Clamp Load Increase: 70-150% over stock
- Construction: Four-stage heat-treated diaphragm, precision cover stamping
- Recommended Use: Pair with a race disc; not recommended for use with a stock or street disc
- Part Number: MZ010XX
Vehicle Applications
| Year | Make | Model | Trim |
|---|---|---|---|
| 1987 | Chrysler | Conquest | Base |
| 1988 | Chrysler | Conquest | TSi |
| 1989 | Chrysler | Conquest | TSi |
| 1989 | Ford | Probe | GT |
| 1990 | Ford | Probe | GT |
| 1991 | Ford | Probe | GT |
| 1992 | Ford | Probe | GT |
| 1990 | Mazda | 626 | GT |
| 1991 | Mazda | 626 | GT |
| 1988 | Mazda | 626 | Turbo |
| 1989 | Mazda | 626 | Turbo |
| 1988 | Mazda | 929 | Base |
| 1988 | Mazda | MX-6 | GT |
| 1989 | Mazda | MX-6 | GT |
| 1990 | Mazda | MX-6 | GT |
| 1991 | Mazda | MX-6 | GT |
| 1992 | Mazda | MX-6 | GT |
| 1989 | Mazda | MX-6 | GT 4WS |
| 1990 | Mazda | MX-6 | GT 4WS |
| 1988 | Mazda | RX-7 | 10th Anniversary |
| 1986 | Mazda | RX-7 | Turbo |
| 1987 | Mazda | RX-7 | Turbo |
| 1988 | Mazda | RX-7 | Turbo |
| 1989 | Mazda | RX-7 | Turbo |
| 1990 | Mazda | RX-7 | Turbo |
| 1991 | Mazda | RX-7 | Turbo |
| 1988 | Mitsubishi | Starion | ESi |
| 1987 | Mitsubishi | Starion | ESi-R |
| 1988 | Mitsubishi | Starion | ESi-R |
| 1989 | Mitsubishi | Starion | ESi-R |
FAQ
Does this pressure plate include a disc?
No, MZ010XX is a pressure plate only. ACT recommends pairing it with a race disc, not a stock or street disc.
How much does the MaXX Xtreme increase clamp load?
ACT's MaXX Xtreme pressure plates increase clamp load by 70 to 150 percent over the stock pressure plate.
What vehicles use this pressure plate?
MZ010XX is sized for the shared Mazda 2.2L/Chrysler-Mitsubishi turbo platform used across the Ford Probe GT, Mazda 626/MX-6/RX-7/929, Chrysler Conquest, and Mitsubishi Starion, as listed in the Vehicle Applications table.
Is this suitable for a daily driver?
No, the MaXX Xtreme clamp load is intended for race applications; a Heavy Duty or Performance Street pressure plate is a better fit for daily driving.
