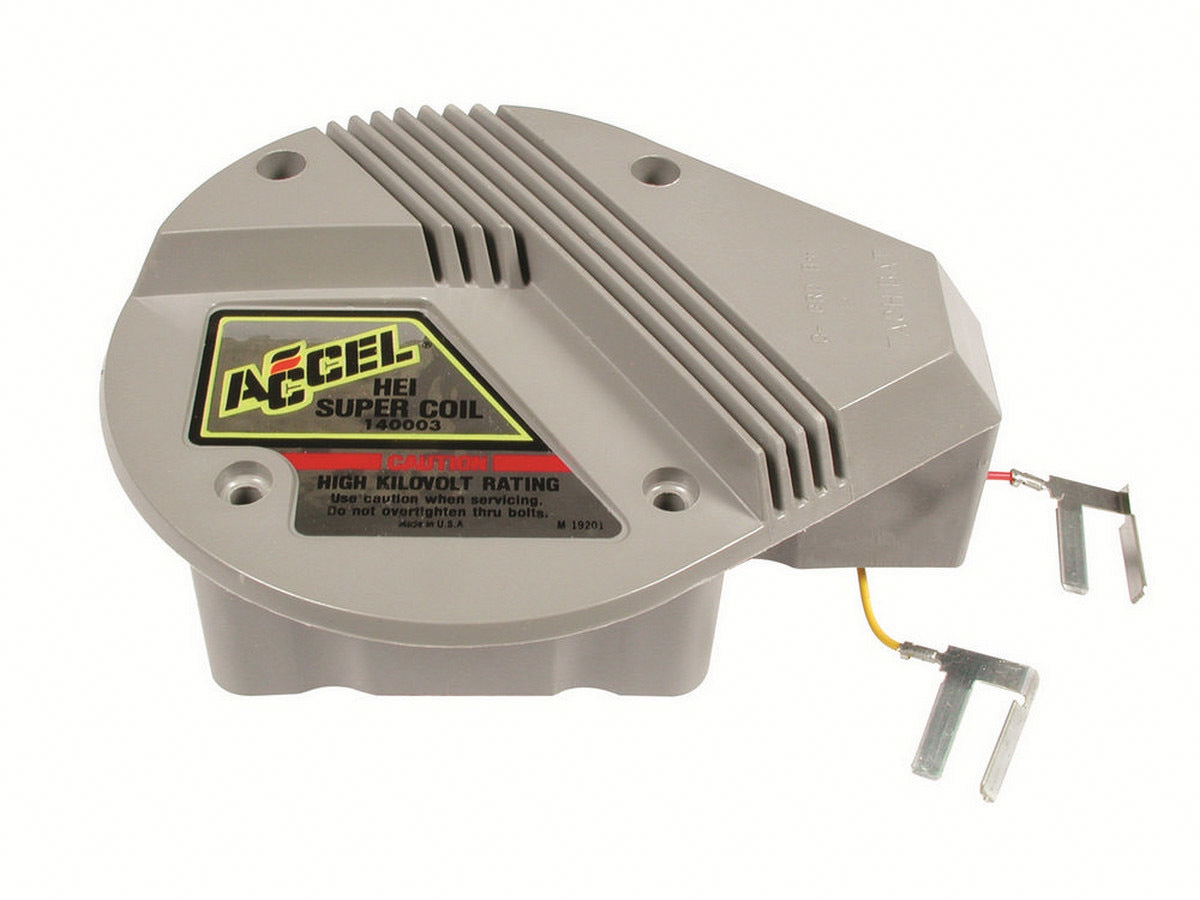

ACCEL ACCEL Ignition Coil - SuperCoil - HEI in-cap 1973-1991 - Red/Yellow primary wire 140003

Engineered for higher energy output resulting in quicker starting, improved idle quality, crisper throttle response and more high RPM power.

Compatible with both original HEI ignition systems and later model computer controlled HEI systems.

No need to remove or re-time distributor.

Complete with simplified ground strap, mounting screws, silicone coil gasket and carbon contact brush / spring.

• 10-15 Percent More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Highly Specialized Silicone Magnetic Steel Cores
• Standard Motor Products SMP Dr-31
• MSD 8225

Details:

• Brand: Accel
• Quantity: 1
• Color: Gray
• Cylinders: 864
• Eo Number: D-221-6
• Maximum Voltage: 45,000 Volts
• Peak Increase In Voltage V: 18 Percent
• Primary Resistance: 0.5 Ohms
• Secondary Resistance: 8.6 k Ohms
• Turns Ratio: 80:01:00
• Warranty: Manufacturer's Limited 90 Day Warranty

ACCEL Hei In Cap Ignition Coil Has A Maximum Voltage Of 45,000V Typical Hei Applications Include Chevrolet 90 Degree V6 & Most V8, Cadillac V8 ACCEL 140003
