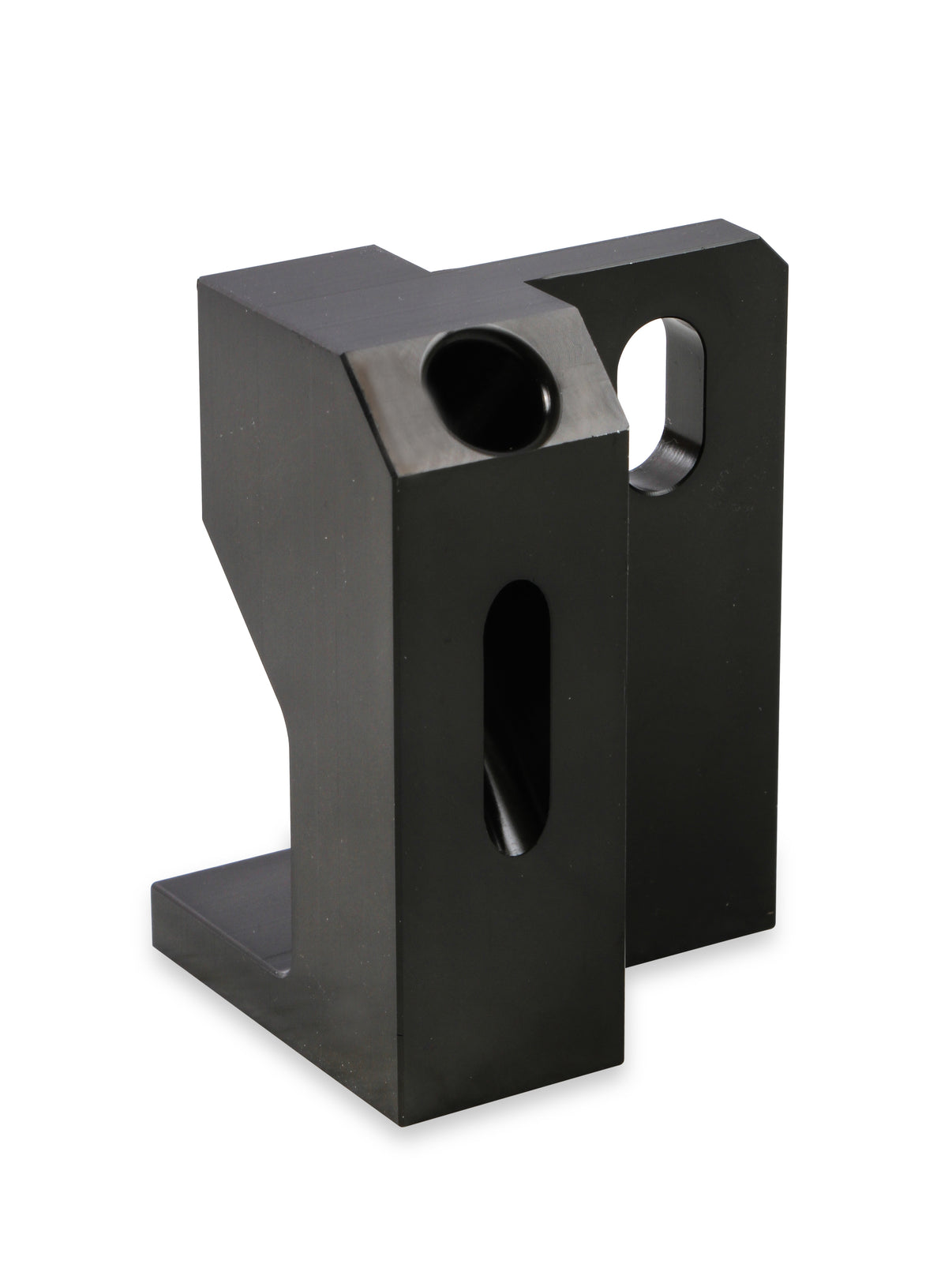

This Holley drill jig aligns a hand drill for accurately locating the dipstick boss when converting a dry sump LS7 engine block to a wet sump oiling system, machined from billet steel.
Specifications:
- Brand: Holley
- Category: Vehicles, Equipment, Tools, and Supplies
- Material: Billet Steel
- Finish: Black
- Product Type: Dipstick Drill Jig
- Part Number: 302-31
Designed for a 3/8 in. drill bit; self-aligning and locating using two nearby threaded block holes, with a chip evacuation port for drilling debris.
FAQ
What is this jig used for?
Locating and drilling the dipstick boss when converting a dry sump LS7 engine block to a wet sump oiling system.
What drill bit size does it require?
3/8 in.
How does the jig align to the block?
It uses two nearby threaded block holes for self-alignment and locating.
What is it made of?
Machined billet steel, one-piece design.
