The Vintage Air SureFit Modified Reduced Barrier Hose Kit (521291) is designed for 1967-68 Camaro and Firebird engine bays that don't have a stock configuration or core support — for example, after an engine swap or custom firewall work. Like the standard kit, it's hoses only and does not include the evaporator or compressor. Each hose has a pre-crimped reduced barrier beadlock fitting on one end, with the other end left open so it can be cut and crimped to fit your custom installation.
Installation Instructions (PDF)
California Proposition 65 Warning
Specifications:
- Type: Modified Reduced Barrier Hose Kit (hoses only, no evaporator or compressor)
- Compatibility: Complete Gen IV or Gen 5 SureFit systems
- Configuration: Non-stock engine compartment / custom core support
- Fittings: Pre-crimped reduced barrier beadlock fitting on one end, open end for custom crimping

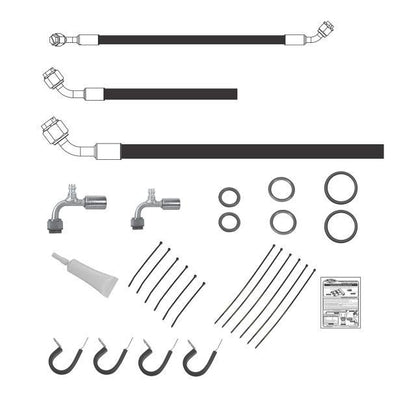

- Includes: refrigerant hoses, fittings, O-rings, mounting hardware, crimping/installation instructions
Vehicle Applications:
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1967 Pontiac Firebird
- 1968 Pontiac Firebird
FAQ
When should I use the modified hose kit instead of the standard kit?
Use the modified kit (521291) if your 1967-68 Camaro/Firebird engine bay isn't in stock configuration — for example, with a swapped engine or altered core support — since one end of each hose is left open for custom crimping.
What's the difference between the standard and modified hose kit?
The standard kit (521290) has pre-crimped fittings on both ends for a stock engine bay, while the modified kit (521291) has one open end so it can be custom-fit to a non-stock installation.
Do I need special tools to finish installing this kit?
Yes, a hose crimping tool is required to finish the open end of the hoses; detailed crimping instructions are included.
Does this kit include the evaporator or compressor?
No, this is a hose kit only, designed to connect to a complete Gen IV or Gen 5 SureFit evaporator/condenser system sold separately.
Which vehicles does this kit fit?
1967-68 Chevrolet Camaro and 1967-68 Pontiac Firebird.
