This bracket kit replaces the factory A/C compressor on GM LS-powered trucks and Escalades with a Sanden compressor, driven off the inner four grooves of the factory LS1 Camaro-style harmonic balancer. The crank centerline to the outer edge of the compressor measures 11.75 in.
Vintage Air Installation Instructions (PDF)
California Proposition 65 Warning (PDF)
Specifications:
- Application: GM LS-Series trucks/Escalade
- Mount position: Passenger side, low mount
- Compressor: Sanden 508
- Material: Steel
- Finish: Natural
- Crank centerline to compressor edge: 11.75 in.

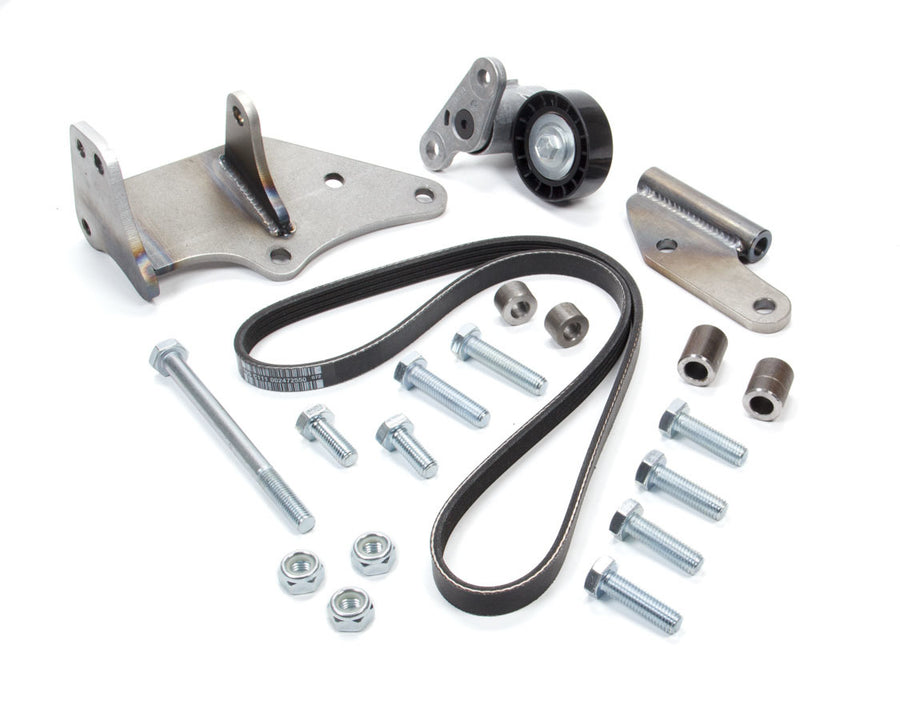

- Includes: Mounting brackets, hardware, automatic belt tensioner, Dayco four-rib drive belt, illustrated instructions
FAQ
What vehicles is this bracket kit designed for?
It's designed for GM LS-Series trucks and Escalades converting to a Sanden compressor.
How is the compressor driven?
Off the factory inner four grooves of the LS1 Camaro-style harmonic balancer.
What's included in the kit?
Steel mounting brackets, mounting hardware, an automatic belt tensioner, a Dayco four-rib drive belt, and illustrated instructions.
What is the crank centerline to compressor measurement?
The crank centerline to the outer edge of the compressor is 11.75 in.
Are installation instructions provided?
Yes, Vintage Air provides a PDF installation guide for this kit.
