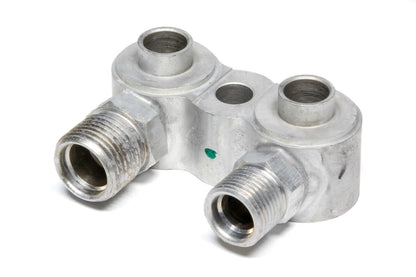

This rear adapter block adapts a GM flat-face vertical compressor to No. 8 and No. 10 female O-ring fittings, with a No. 8 discharge and No. 10 suction port.
California Proposition 65 Warning (PDF)
Specifications:
- Compatible Compressor: GM Vertical Compressor, Flat Face
- Discharge: No. 8 Male O-Ring
- Suction: No. 10 Male O-Ring
- Fittings: No. 8 (3/4-16 thread) and No. 10 (7/8-14 thread) female O-ring
- Material: Aluminum, Natural finish
FAQ
What compressor does the Vintage Air 045024 block fit?
It fits GM flat-face vertical compressors.
Which port is discharge and which is suction?
The No. 8 O-ring port is discharge and the No. 10 O-ring port is suction.
What fittings does this block adapt to?
It adapts to No. 8 (3/4-16 thread) and No. 10 (7/8-14 thread) female O-ring fittings.
What material is the 045024 block made from?
It's made from aluminum with a natural finish.
