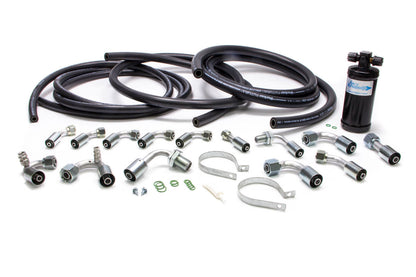

The Vintage Air 547000 is an extended-length universal beadlock A/C hose kit with a drier, built with barrier-type hose compatible with both HFC-134a and R-12 refrigerants.
Installation Instructions (PDF)
WARNING: California Proposition 65
Specifications:
- Type: Extended-Length Universal Standard Beadlock A/C Hose Kit
- Fittings: 14 O-ring beadlock fittings, 135° compressor fittings with service ports, firewall bulkhead fittings
- Hose: 10 ft of #6, 6 ft of #8, 9 ft of #10 barrier hose
- Drier: Standard drier with mounting bracket included
- Refrigerant compatibility: HFC-134a and R-12
- Application: Universal
FAQ
What's included in the 547000 hose kit?
It includes 14 O-ring beadlock fittings, 135° compressor fittings with service ports, firewall bulkhead fittings, a drier with mounting bracket, and barrier hose (10 ft of #6, 6 ft of #8, 9 ft of #10).
What refrigerants is this hose kit compatible with?
The barrier-type hose is compatible with both HFC-134a and R-12 refrigerants.
Does this kit include a drier?
Yes, this is the w/Drier version and includes a drier and mounting clamps.
Is there a version without a drier?
Yes, Vintage Air also offers part number 547001, the same extended-length beadlock kit without a drier, for systems where a drier is already installed elsewhere.
Is this a universal-fit kit?
Yes, it's built with extended hose lengths to reach most universal system configurations.
