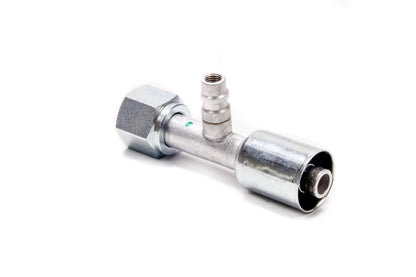

The Vintage Air #10 Straight Barb O-Ring Fitting w/Port (35513-VUG) is a straight AC refrigerant hose-end fitting that crimps onto #10 AN hose and seals to a #10 AN female O-ring port. It includes a built-in charge port for connecting an R-134a service fitting during system charging or evacuation.
California Proposition 65 Warning (PDF)
Specifications:
- Part Number: 35513-VUG
- Type: Hose end fitting, AC refrigerant, w/charge port
- Angle: Straight
- Size: #10 AN Hose Crimp to #10 AN Female O-Ring
- Material: Aluminum / Steel
- Finish: Natural / Zinc Oxide
- Packaging: Each
FAQ
What does the charge port on the 35513-VUG do?
The built-in charge port lets a technician connect an R-134a service fitting to add refrigerant or pull a vacuum without disconnecting the hose.
What size hose does the 35513-VUG use?
It crimps onto #10 AN hose and seals to a #10 AN female O-ring port.
What angle is the 35513-VUG fitting?
It is a straight fitting with no bend.
What material is the 35513-VUG made from?
The fitting is aluminum and steel construction, finished natural and zinc oxide.
