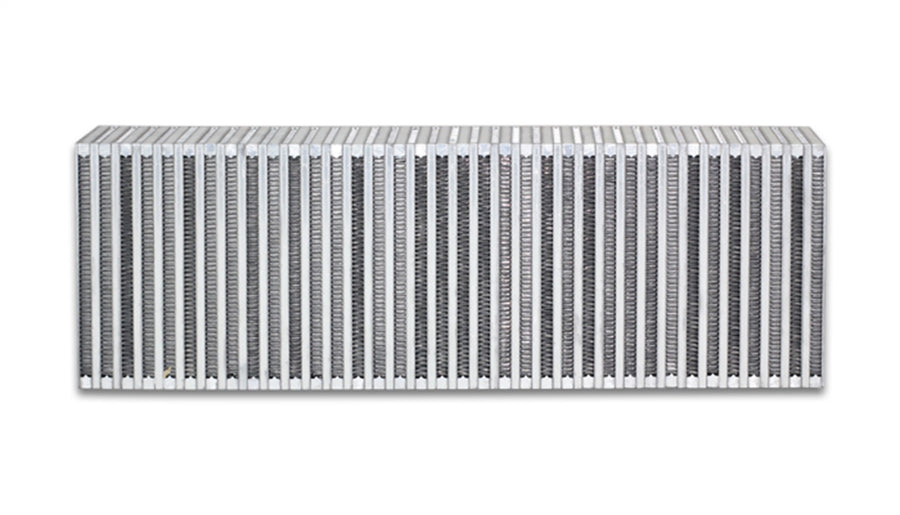

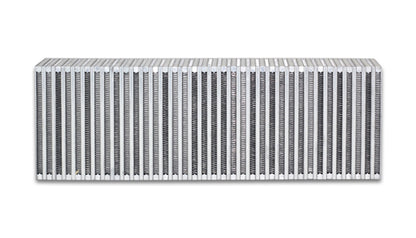

Vibrant Vertical Flow Intercooler Core | 6061 Aluminum, 24 in W x 8 in H x 3.5 in Thick, Bar and Plate | 12859
Regular Price
$309.99
The Vibrant vertical flow air to air intercooler core uses bar and plate construction with a louvered fin design on the ambient path that maximizes available surface area and an offset fin design on the charge path that keeps pressure loss to a minimum. The core measures 24 in wide by 8 in high with a 3.5 in thick core and is built from 6061 aluminum for strength and efficient heat transfer.
- Type: vertical flow air to air intercooler core
- Construction: bar and plate
- Ambient path: louvered fin design for maximum surface area
- Charge path: offset fin design for minimal pressure loss
- Core width: 24 in
- Core height: 8 in
- Core thickness: 3.5 in
- Material: 6061 Aluminum
- Part number: 12859
FAQ
What is the Vibrant intercooler core made from?
It is built from 6061 aluminum using bar and plate construction for durability and efficient heat transfer.
What are the core dimensions?
The core measures 24 in wide, 8 in high, and 3.5 in thick.
How do the fin designs improve cooling?
A louvered fin design on the ambient path maximizes available surface area, while an offset fin design on the charge path minimizes pressure loss.
