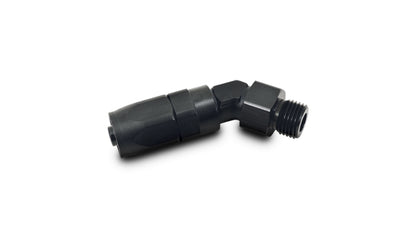

The Vibrant 45 Degree Male Hose End Fitting is a swivel-style tight radius forged hose end machined entirely from 6061 aluminum alloy. It provides smooth flow, easy assembly, and a secure anti-leak seal, and it ships with an O-ring seal. The fitting carries a -12 AN hose connection with a -12 ORB male thread and is finished in black anodize.
- Type: Tight radius forged male hose end, 45 degree (swivel)
- Hose size: -12 AN
- Male ORB thread: -12
- Bend angle: 45 Degree
- Material: 6061 aluminum
- Finish: Black anodized
- Includes: O-ring seal
- Part number: 24411
FAQ
Is an O-ring included?
Yes. The fitting ships with an O-ring seal for a leak-free ORB connection.
What are the hose and thread sizes?
It uses a -12 AN hose connection and a -12 ORB male thread.
What is the bend angle and material?
It is a 45 degree tight radius forged hose end machined entirely from 6061 aluminum alloy.
