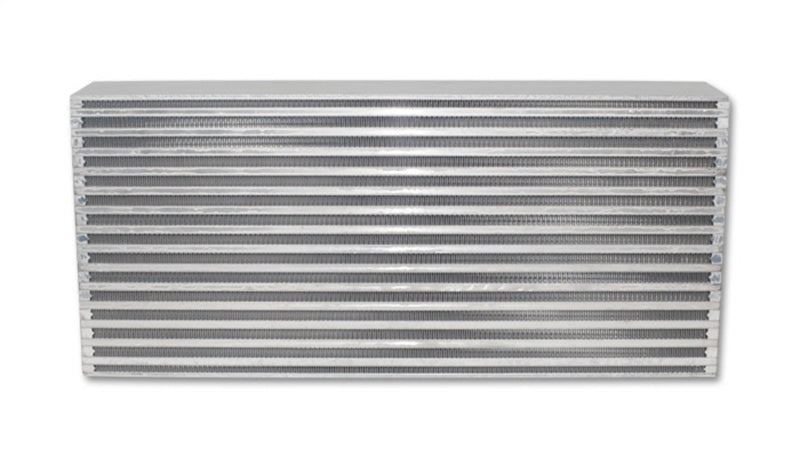

Vibrant Horizontal Flow Intercooler Core | 22 in x 9.85 in x 4 in, Bar and Plate | 12837
Regular Price
$332.99
This Vibrant Performance horizontal flow air-to-air intercooler core measures 22 in by 9.85 in by 4 in and uses bar and plate construction. A louvered fin design on the ambient path maximizes available surface area while an offset fin design on the charge path keeps pressure loss to a minimum. The increased fin density offers improved cooling efficiency.
- Type: horizontal flow air-to-air intercooler core
- Core size: 22 in x 9.85 in x 4 in
- Construction: bar and plate
- Ambient path: louvered fin design
- Charge path: offset fin design
- Fin density: 25 percent increased
- Part number: 12837
FAQ
What are the core dimensions?
The core measures 22 in by 9.85 in by 4 in.
What type of construction is used?
It uses bar and plate construction with a louvered ambient fin and an offset charge fin design.
How does the fin design help?
The louvered ambient fin maximizes surface area and the offset charge fin minimizes pressure loss, improving cooling efficiency.
