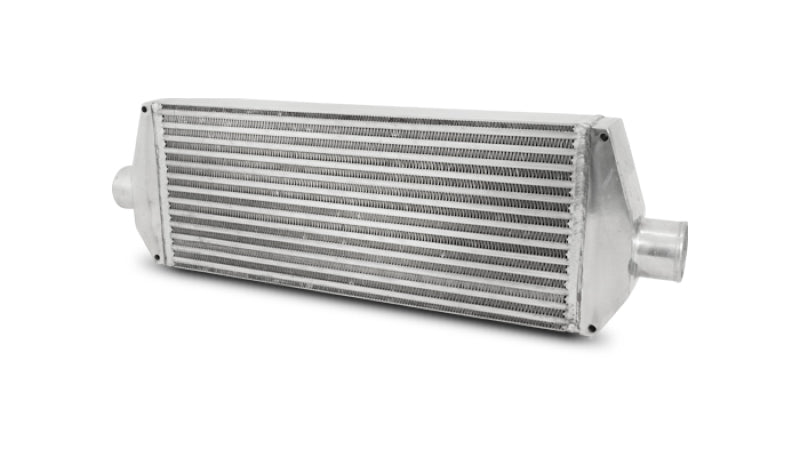

Vibrant Air-to-Air Intercooler Assembly with End Tanks | Bar and Plate, 22 in W x 9 in H x 3.25 in thick, 2.5 in In/Out | 12810
Regular Price
$386.99
This Vibrant Performance air-to-air intercooler assembly uses bar and plate construction with a louvered fin design on the ambient path that maximizes available core surface area, and an offset fin design on the charge path for minimal pressure loss. The cast aluminum end tanks are precision TIG-welded to the core and pressure tested for leak-free performance. The core measures 22 in W x 9 in H x 3.25 in thick with 2.5 in inlet and outlet connections.
- Type: air-to-air intercooler assembly with end tanks
- Construction: bar and plate with 25 percent increased fin density
- Core size: 22 in W x 9 in H x 3.25 in thick
- Inlet/outlet: 2.5 in
- End tanks: cast aluminum, TIG-welded and pressure tested
- Fin design: louvered ambient path, offset charge path
- Part number: 12810
FAQ
What type of core construction does this intercooler use?
It uses bar and plate construction with a louvered ambient fin design and an offset charge fin design.
What are the inlet and outlet sizes?
The inlet and outlet connections are 2.5 in.
Are the end tanks tested?
Yes, the cast aluminum end tanks are TIG-welded to the core and pressure tested for leak-free performance.
