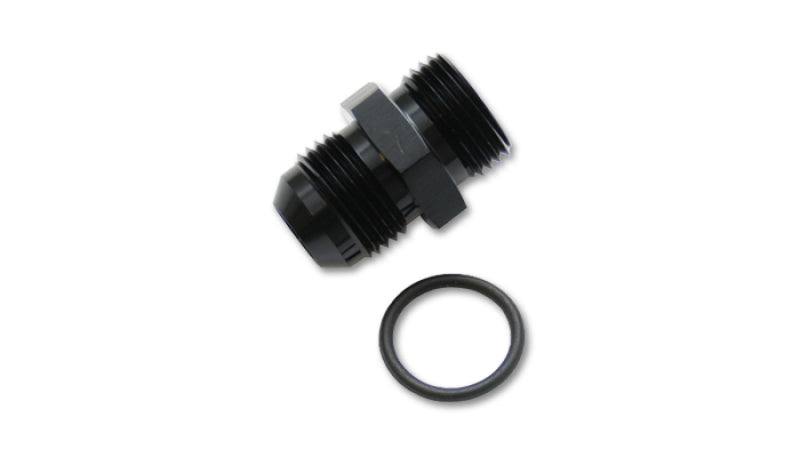

The Vibrant -6 AN male AN flare to 7/16-20 male O-ring boss straight adapter joins an AN flare line to an ORB port in a single fitting. It is machined from lightweight 6061 aluminum alloy, finished in anodized black, and includes an O-ring seal for a leak-free connection. The straight body suits oil pumps, fuel pumps, fuel filters and other common components.
- Type: Male AN flare to male ORB straight adapter
- AN size: -6 AN
- ORB thread: 7/16-20 (straight cut thread with O-ring)
- Material: 6061 aluminum alloy
- Finish: Anodized black
- Includes: O-ring seal
- Part number: 16825
FAQ
What does the Vibrant 16825 adapter connect?
It joins a -6 AN male AN flare line to a 7/16-20 male O-ring boss (ORB) port.
Is a seal included?
Yes. The adapter ships with an O-ring seal for a leak-free ORB connection.
What is it made from?
It is machined from 6061 aluminum alloy with an anodized black finish.
