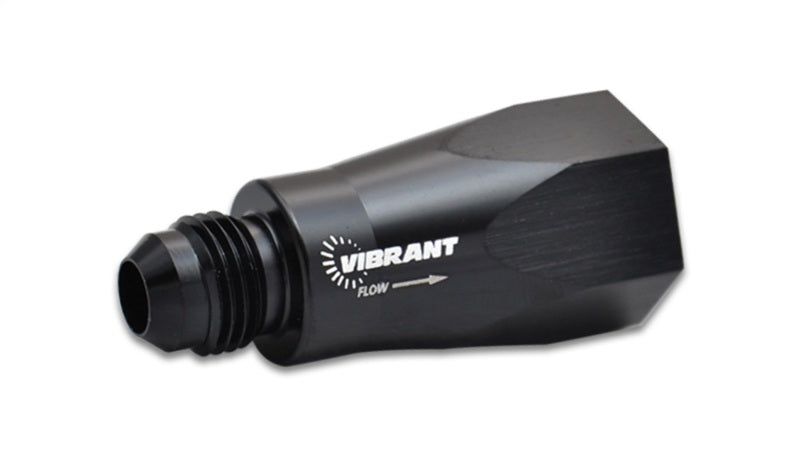

The Vibrant ball-style inline one-way check valve is machined entirely from 6061 aluminum alloy to prevent backflow of fuel, oil, or coolant. It handles temperatures from -30 degrees F to 400 degrees F and operating pressures up to 300 psi, with cracking pressure adjustable between 2 and 5 psi. Use thread locker when setting cracking pressure. It is offered in anodized black only.
- Type: ball-style inline one-way check valve
- Size: -6 AN
- Material: 6061 aluminum alloy
- Operating pressure: up to 300 psi
- Temperature range: -30 degrees F to 400 degrees F
- Cracking pressure: adjustable 2 to 5 psi
- Finish: anodized black
- Part number: 11116
FAQ
What does this check valve prevent?
It is a one-way valve that prevents backflow of fuel, oil, or coolant.
What are the pressure and temperature ratings?
It handles operating pressures up to 300 psi and temperatures from -30 degrees F to 400 degrees F, with cracking pressure adjustable between 2 and 5 psi.
What material and finish is it?
It is machined entirely from 6061 aluminum alloy and offered in anodized black only.
