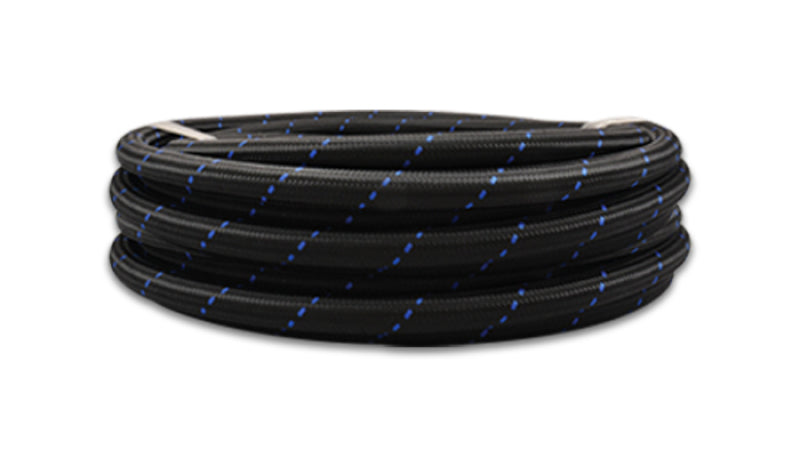

Vibrant Braided Flex Hoses use a braided outer cover over a reinforced CPE synthetic rubber inner liner for excellent abrasion resistance. This -4 AN hose is suitable for oil, water, fuel, coolant, and vacuum service, and is compatible with E85 and methanol, though fumes can permeate the hose when fuel sits stagnant for long periods (the Vibrant PTFE flex hose is better suited to extended E85 and methanol use). It is not intended for brake lines or other hydraulic pressure lines, and is not recommended for extended fuel or oil submersion or in-tank applications. Operating temperature range is -40 degrees F to 300 degrees F (-40 degrees C to 150 degrees C).
- Type: Braided flex hose
- Size: -4 AN
- Outer cover: Black/Blue Nylon Braid
- Inner liner: Reinforced CPE synthetic rubber
- Length: 10 ft roll
- Service: Oil, water, fuel, coolant, vacuum; E85 and methanol capable
- Operating temperature: -40 degrees F to 300 degrees F
- Part number: 11964B
FAQ
What fluids can the Vibrant -4 AN braided flex hose handle?
It is suitable for oil, water, fuel, coolant, and vacuum service, and is also compatible with E85 and methanol. For extended E85 or methanol use, the Vibrant PTFE flex hose is the better choice, since fumes can permeate this hose when fuel sits stagnant for long periods.
Can this hose be used for brake or hydraulic lines?
No. This braided flex hose is not designed for brake lines or other hydraulic pressure lines, and it should not be used for extended fuel or oil submersion or in-tank applications.
What is the operating temperature range?
The hose is rated for -40 degrees F to 300 degrees F (-40 degrees C to 150 degrees C).
