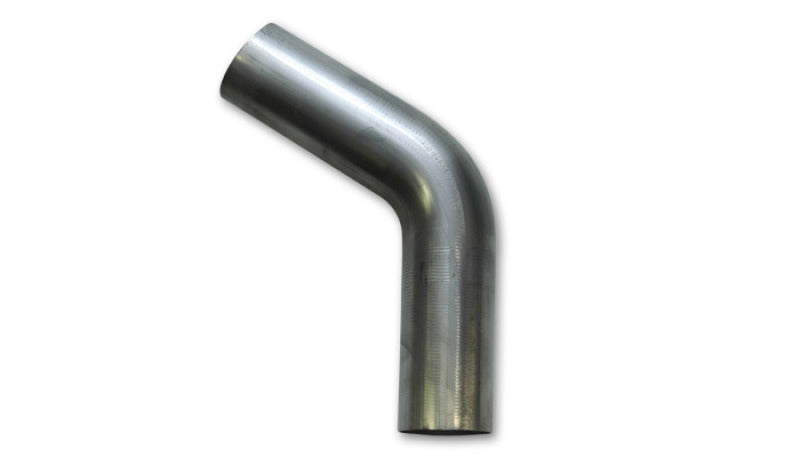

Vibrant 60 degree mandrel bend is part of the Vibrant T304 stainless steel mandrel bent tubing program. Formed from 304 stainless with a 16-gauge wall, it holds consistent material and dimensional accuracy for repeatable custom exhaust and intake fabrication. The 2.25 in outside diameter bend carries a 3.375 in centerline radius and requires minimal preparation for welding.
- Type: mandrel bend
- Bend angle: 60 degree
- Outside diameter: 2.25 in
- Centerline radius: 3.375 in
- Material: T304 stainless steel
- Wall thickness: 16 gauge
- Leg lengths: 6 in x 6 in
- Part number: 13068
FAQ
What material is this Vibrant mandrel bend made from?
It is constructed from T304 stainless steel with a 16-gauge wall thickness for consistent dimensions and corrosion resistance.
What are the size and radius of this bend?
This 60 degree bend has a 2.25 in outside diameter and a 3.375 in centerline radius. Leg lengths are 6 in x 6 in.
Is this mandrel bend ready to weld?
Yes. The mandrel bent tubing requires minimal preparation for welding and fabrication, which suits custom exhaust and intake piping.
