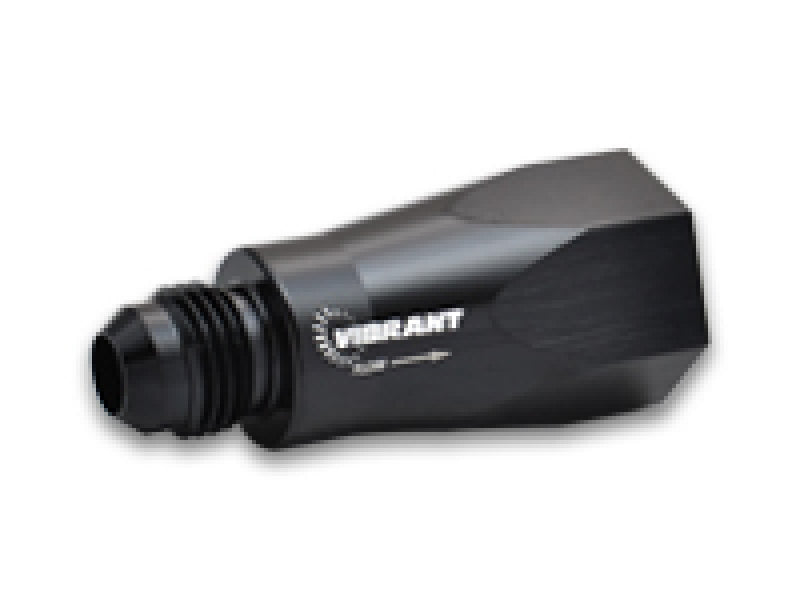

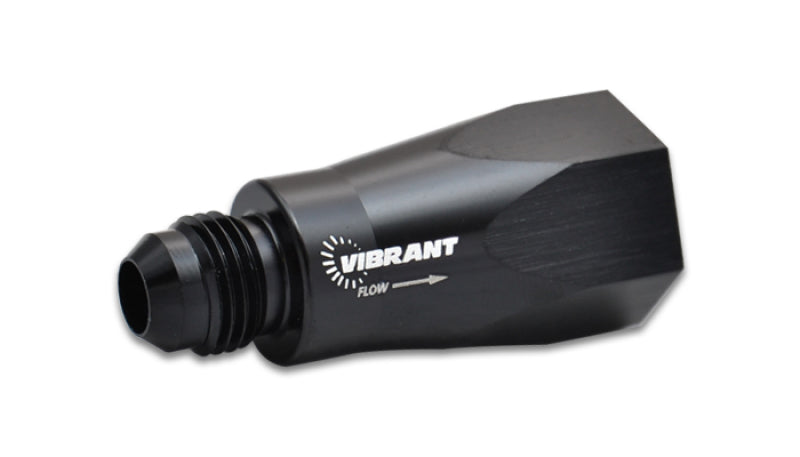

Vibrant Inline Check Valve | -12 AN Male to -12 AN ORB Female, 6061 Aluminum, Anodized Black | 11120
Regular Price
$42.50
The Vibrant ball-style inline one-way check valve prevents back flow of fuel, oil or coolant. It is constructed entirely from lightweight 6061 aluminum alloy and handles temperatures from -30 degrees F to 400 degrees F and operating pressures up to 300 psi. Cracking pressure is adjustable between 2 and 5 psi, and thread locker should be used when setting it. Flow direction is male AN to female ORB. It is offered in anodized black only.
- Type: ball-style inline one-way check valve
- Ports: -12 AN male to -12 AN ORB female
- Material: 6061 aluminum alloy
- Finish: anodized black
- Temperature range: -30 to 400 degrees F
- Max operating pressure: 300 psi
- Cracking pressure: adjustable 2-5 psi
- Flow direction: male AN to female ORB
- Part number: 11120
FAQ
What is the cracking pressure?
Cracking pressure is adjustable between 2 and 5 psi. Use thread locker when setting it.
What pressure and temperature can it handle?
It handles operating pressures up to 300 psi and temperatures from -30 to 400 degrees F.
Which way does it flow?
Flow direction is male AN to female ORB, preventing back flow of fuel, oil or coolant.
