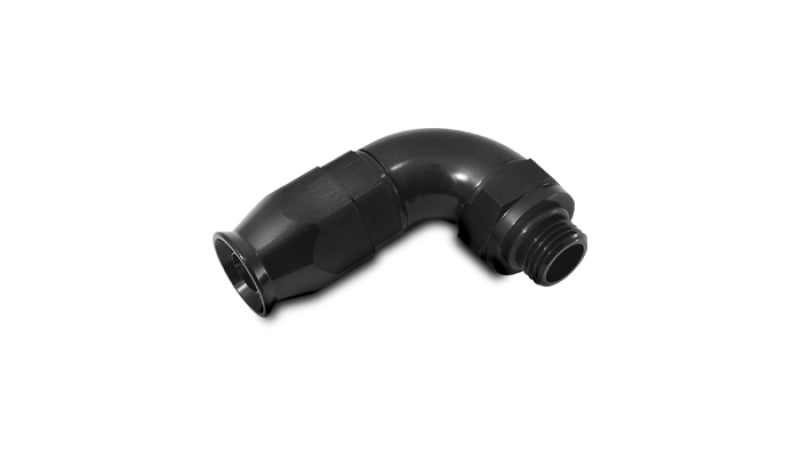

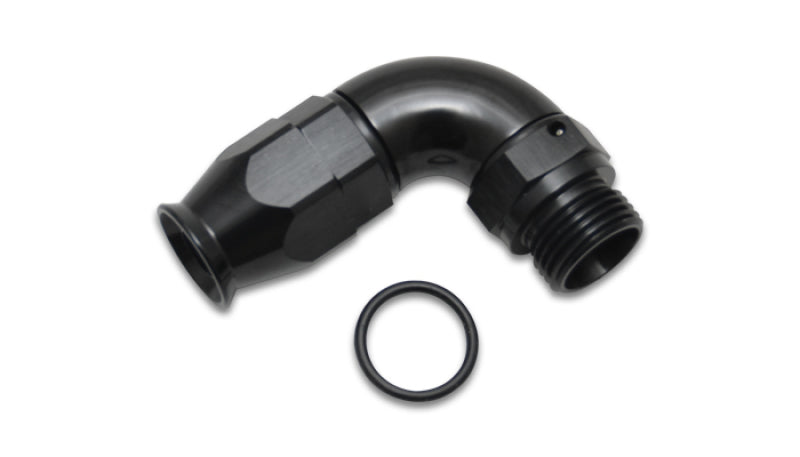

Vibrant Performance 90 degree high flow swivel hose end fittings are lightweight and constructed entirely from 6061 aluminum alloy. This fitting connects a -10 AN PTFE lined flex hose to a -10 AN ORB port at a 90 degree angle, delivering smooth flow, easy assembly, and a reliable anti-leak seal. It includes an O-ring seal and is offered in black anodized finish only.
- Type: 90 degree swivel hose end to ORB fitting
- Hose side: -10 AN PTFE lined flex hose
- Port side: -10 AN ORB
- Material: 6061 aluminum alloy
- Finish: black anodized
- Seal: O-ring included
- Part number: 29908
FAQ
What does this -10 AN fitting connect?
It joins a -10 AN Vibrant PTFE lined flex hose to a -10 AN ORB port at a 90 degree angle.
Is a seal included?
Yes, an O-ring seal is included for the ORB side to create a leak-free joint.
What material and finish is used?
It is made from 6061 aluminum alloy in a black anodized finish only.
