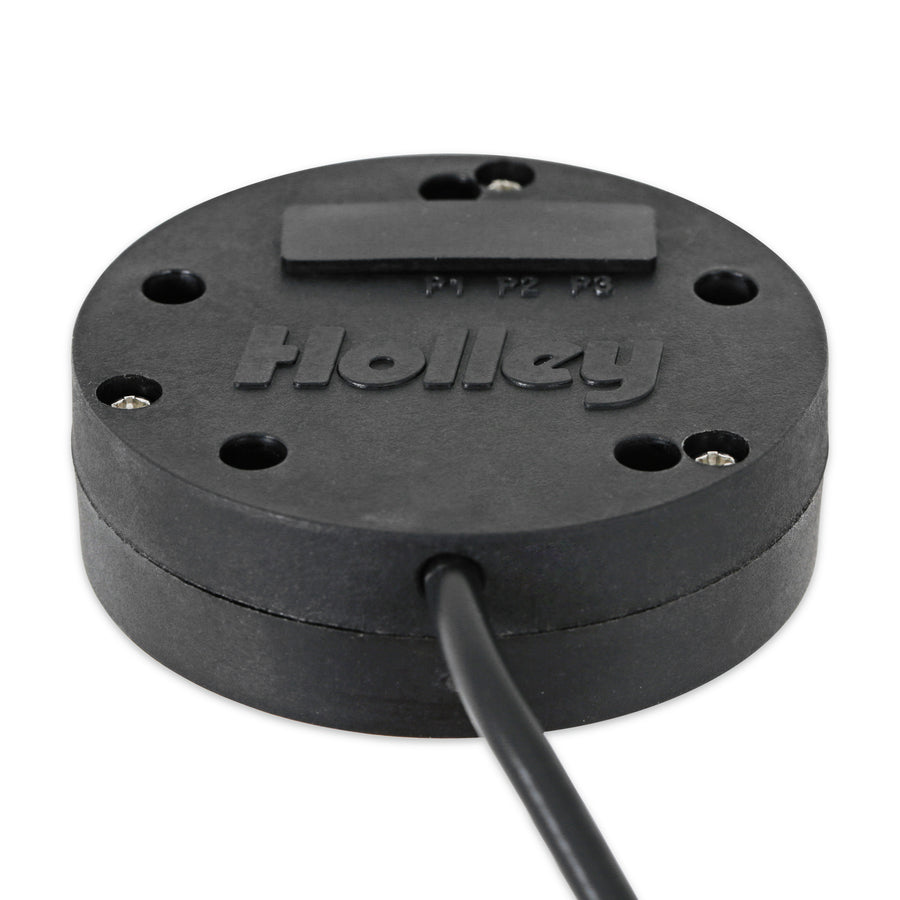

Holley's Easy Level sender uses LiDAR technology to precisely measure remaining fuel depth and works with Classic Instruments' short-sweep, full-sweep, and selectable ohm-range fuel gauges as well as many other gauge brands, fitting tanks from 4 to 39 inches deep.
Specifications:
- Application: Universal
- Bolt Hole Quantity: 5
- Bolt Circle Diameter: 2.122"
- Material: Plastic
- Output: PWM signal, 10-20V (for 12V systems)
- Max Operating Temperature: 185°F
- Product Type: Fuel Gauge Level Sender
- Sub Category: Sensors
- Part Number: 19-250-1
Should be mounted on the flat, horizontal top surface of the tank; it may not work reliably on highly reflective stainless steel tanks. Empty, half, and full positions are set with on-board buttons and dip switches control the dampening rate to reduce fuel slosh and gauge bounce.
FAQ
How does the Easy Level sender work?
It uses LiDAR (laser) technology to measure fuel depth with no moving parts, eliminating the setup issues of float-type senders.
What tank depths does it support?
4 to 39 inches.
What gauges is it compatible with?
Classic Instruments' short-sweep, full-sweep, and selectable ohm-range gauges, plus many other gauge brands — it does not work with OE-style gauges using ohm-only input.
Where should it be mounted?
On the flat, horizontal top surface of the fuel tank; it may not work reliably on highly reflective stainless tanks.
