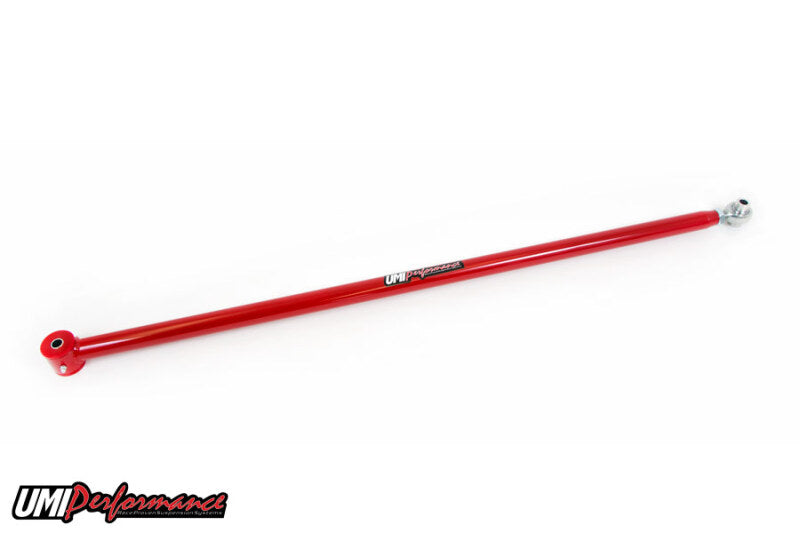

The UMI Performance tubular single adjustable panhard bar is a durable, high strength replacement for the stock stamped panhard bar. It adds rear end adjustment that is essential for recentering the rear axle after lowering and for clearing larger tires. The included rod end allows length changes off the car, and the combination of a spherical rod end with a polyurethane bushing removes rear end bind without hurting ride quality, which makes it a strong choice for both street and drag use. The bar measures 43 inches nominal center to center and is made in the USA.
Specifications:
- 1.250in x 0.095in DOM steel tubing
- 43in nominal center to center, adjustable
- QA1 3/4in hard chrome plated, Teflon/Kevlar self lubricating race rod end
- 4130 chromoly threaded tube adaptor
- CNC machined 6061 aluminum step bushings
- Greaseable polyurethane bushings with grease fittings
- Precision TIG welded construction
- Red powder coat finish
- Installs with OEM hardware in about 20 minutes
- Made in the USA
- Part number: 2021-R
Vehicle Applications:
- 1982 Chevrolet Camaro
- 1983 Chevrolet Camaro
- 1984 Chevrolet Camaro
- 1985 Chevrolet Camaro
- 1986 Chevrolet Camaro
- 1987 Chevrolet Camaro
- 1988 Chevrolet Camaro
- 1989 Chevrolet Camaro
- 1990 Chevrolet Camaro
- 1991 Chevrolet Camaro
- 1992 Chevrolet Camaro
- 1993 Chevrolet Camaro
- 1994 Chevrolet Camaro
- 1995 Chevrolet Camaro
- 1996 Chevrolet Camaro
- 1997 Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
- 1982 Pontiac Firebird
- 1983 Pontiac Firebird
- 1984 Pontiac Firebird
- 1985 Pontiac Firebird
- 1986 Pontiac Firebird
- 1987 Pontiac Firebird
- 1988 Pontiac Firebird
- 1989 Pontiac Firebird
- 1990 Pontiac Firebird
- 1991 Pontiac Firebird
- 1992 Pontiac Firebird
- 1993 Pontiac Firebird
- 1994 Pontiac Firebird
- 1995 Pontiac Firebird
- 1996 Pontiac Firebird
- 1997 Pontiac Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
FAQ
What vehicles does the UMI 2021-R panhard bar fit?
It fits 1982 through 2002 Chevrolet Camaro and Pontiac Firebird models.
Is this panhard bar adjustable?
Yes. It adjusts in length using the included rod end and measures about 43 inches nominal center to center, which makes recentering the rear axle straightforward.
Why would I choose an adjustable panhard bar?
Adjustability lets you recenter the rear axle after lowering the vehicle and helps clear larger tires, so it is a common upgrade for both street and drag setups.
What is the difference between the red and black versions?
The bar is identical. The 2021-R uses a red powder coat finish and the black version uses a gloss black powder coat finish.
Is it made in the USA?
Yes. UMI Performance manufactures this panhard bar in the USA.
