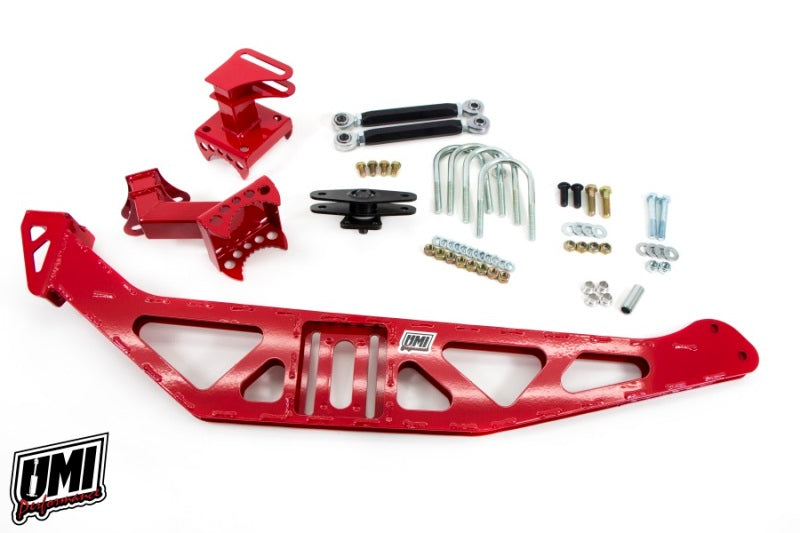

The UMI 2080 Watts link is a key component for optimizing the third generation F-body solid axle rear suspension. Its combination of lateral locating ability and roll center height adjustment makes it a strong choice for axle location in handling cars. The premium 2080 is laser cut for accuracy and boxed for an excellent strength to weight ratio. The propeller uses Delrin bushings with a castle nut and cotter pin arrangement for reliability and long service life, and the locking design removes the need for over tightening while keeping propeller movement smooth. UMI-built aluminum sleeves allow on-car lateral location adjustment, and the bracket system holds the opposite end securely. The slotted design makes parallelism adjustment easy and provides smooth travel through the full 2.5 inch adjustment range. Exhaust clearance is a major part of the design, with increased clearance over many competitor units, clearing most large single over-the-axle systems and many dual pipe systems. The 2080 is built entirely in-house of USA materials and is made in the USA.
Specifications:
- Fabricated Watts link for the factory rear end
- Laser cut and boxed construction for a high strength to weight ratio
- Delrin propeller bushings with castle nut and cotter pin
- On-car lateral location adjustment with UMI-built aluminum sleeves
- 2.5 inch adjustment range with slotted parallelism adjustment
- Increased exhaust clearance for single and many dual pipe systems
- Made in the USA
- Part number: 2080-275-R
Vehicle Applications:
- 1982 Chevrolet Camaro
- 1983 Chevrolet Camaro
- 1984 Chevrolet Camaro
- 1985 Chevrolet Camaro
- 1986 Chevrolet Camaro
- 1987 Chevrolet Camaro
- 1988 Chevrolet Camaro
- 1989 Chevrolet Camaro
- 1990 Chevrolet Camaro
- 1991 Chevrolet Camaro
- 1992 Chevrolet Camaro
- 1982 Pontiac Firebird
- 1983 Pontiac Firebird
- 1984 Pontiac Firebird
- 1985 Pontiac Firebird
- 1986 Pontiac Firebird
- 1987 Pontiac Firebird
- 1988 Pontiac Firebird
- 1989 Pontiac Firebird
- 1990 Pontiac Firebird
- 1991 Pontiac Firebird
- 1992 Pontiac Firebird
FAQ
What vehicles does the UMI 2080 Watts link fit?
It fits 1982 to 1992 Chevrolet Camaro and Pontiac Firebird models that use the factory rear end. See the full Vehicle Applications list for every year.
What does a Watts link do on a third generation F-body?
A Watts link locates the rear axle laterally and sets roll center height, which keeps the axle centered through suspension travel and improves handling balance compared with the factory setup.
Is the 2080 adjustable?
Yes. UMI-built aluminum sleeves allow on-car lateral location adjustment, and the slotted propeller design provides a 2.5 inch adjustment range for setting roll center and parallelism.
Does the Watts link clear factory and aftermarket exhaust?
Exhaust clearance was a primary design goal. The 2080 clears most large single over-the-axle systems and many dual pipe systems.
Where is the UMI 2080 made?
It is built entirely in-house of USA materials and is made in the USA.
