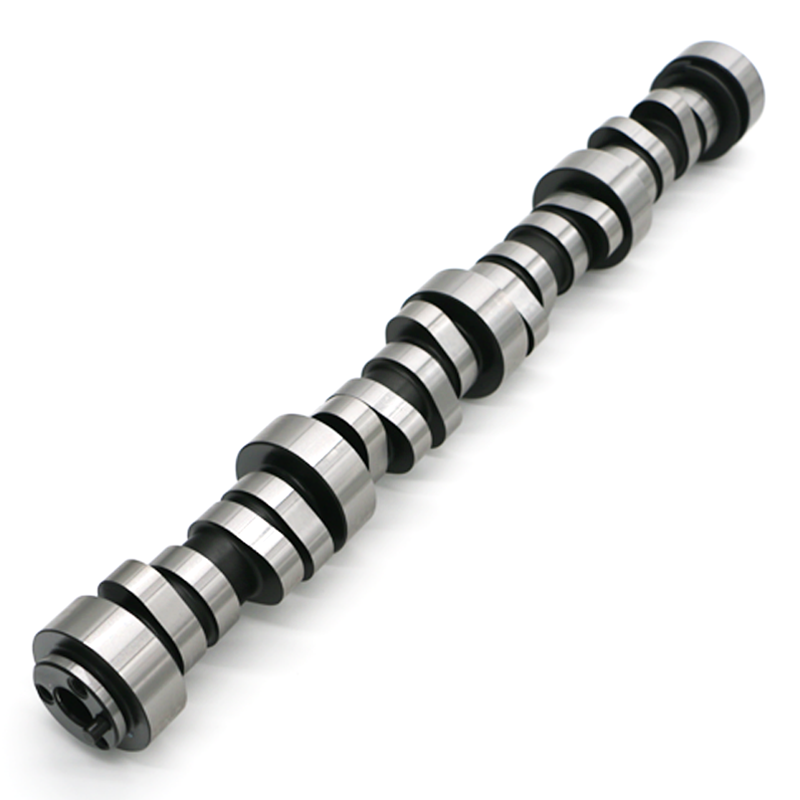

The Texas Speed Stage 3 LS3 N/A Camshaft is a 231/246 grind for LS3 and LS2 engines with L92/LS3 rectangular-port heads, aimed at buyers who want a more aggressive cam than the Stage 2 229/244 with a bit more top-end power. The .640" intake lift and 111 degree lobe separation deliver strong gains while Texas Speed still describes it as a street-able cam that can be daily driven once properly tuned.
Texas Speed reports gains of 88 horsepower and 28 lb-ft of torque at a 10.5:1 or higher compression ratio. The TSP/PAC .660" dual valve spring kit is required, automatics need a minimum 3,200 rpm stall converter, and no rear gear change is required. The operating range is 2,000 to 6,900 rpm. The cam is offered only on a 3-bolt core, and a custom tune is required after installation.
Specifications
- Duration at .050": 231/246
- Valve lift: .640"/.615"
- Lobe separation angle: 111 degrees
- Intake centerline: 109 degrees
- Engines: 6.0L and 6.2L LS3/LS2 with L92/LS3 rectangular-port cylinder heads
- Application: Naturally aspirated
- Recommended compression ratio: 10.5:1 or higher
- Recommended valve springs: TSP/PAC .660" dual valve springs (upgraded springs required)
- Aftermarket stall converter required: Yes, 3,200 rpm or higher
- Upgraded rear gear required: No
- Operating range: 2,000 to 6,900 rpm
- Tested gains: +88 hp, +28 lb-ft of torque
- Cam core: 3-bolt only
- Vehicle usage: Street performance, mid-range
- Chop level: Choppy
Note: This camshaft is supplied only on a 3-bolt cam core. Engines that came with a single-bolt factory camshaft need the three-bolt conversion kit, which supplies the 4x upper timing gear for the correct camshaft position signal, and the ARP camshaft bolt kit with the three required bolts. Texas Speed also offers the conversion with a complete upgraded timing set.
Vehicle Applications
Engine families covered per Texas Speed: 6.0L and 6.2L LS with L92/LS3-style rectangular-port cylinder heads.
Chevrolet Camaro
- 2010 Chevrolet Camaro
- 2011 Chevrolet Camaro
- 2012 Chevrolet Camaro
- 2013 Chevrolet Camaro
- 2014 Chevrolet Camaro
- 2015 Chevrolet Camaro
Chevrolet Corvette
- 2008 Chevrolet Corvette
- 2009 Chevrolet Corvette
- 2010 Chevrolet Corvette
- 2011 Chevrolet Corvette
- 2012 Chevrolet Corvette
- 2013 Chevrolet Corvette
Cadillac CTS
- 2009 Cadillac CTS
- 2010 Cadillac CTS
- 2011 Cadillac CTS
- 2012 Cadillac CTS
- 2013 Cadillac CTS
- 2014 Cadillac CTS
- 2015 Cadillac CTS
Cadillac CTS-V
- 2009 Cadillac CTS-V
- 2010 Cadillac CTS-V
- 2011 Cadillac CTS-V
- 2012 Cadillac CTS-V
- 2013 Cadillac CTS-V
- 2014 Cadillac CTS-V
- 2015 Cadillac CTS-V
Cadillac Escalade
- 2008 Cadillac Escalade
- 2009 Cadillac Escalade
- 2010 Cadillac Escalade
- 2011 Cadillac Escalade
- 2012 Cadillac Escalade
- 2013 Cadillac Escalade
- 2014 Cadillac Escalade
Pontiac G8
- 2008 Pontiac G8
- 2009 Pontiac G8
Pontiac GTO
- 2004 Pontiac GTO
- 2005 Pontiac GTO
- 2006 Pontiac GTO
GMC Sierra 1500
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
GMC Sierra 2500
- 2007 GMC Sierra 2500
- 2009 GMC Sierra 2500
- 2010 GMC Sierra 2500
- 2011 GMC Sierra 2500
- 2012 GMC Sierra 2500
- 2013 GMC Sierra 2500
- 2014 GMC Sierra 2500
- 2015 GMC Sierra 2500
- 2016 GMC Sierra 2500
- 2017 GMC Sierra 2500
- 2018 GMC Sierra 2500
- 2019 GMC Sierra 2500
GMC Sierra 3500
- 2009 GMC Sierra 3500
- 2010 GMC Sierra 3500
- 2011 GMC Sierra 3500
- 2012 GMC Sierra 3500
- 2013 GMC Sierra 3500
- 2014 GMC Sierra 3500
- 2015 GMC Sierra 3500
- 2016 GMC Sierra 3500
- 2017 GMC Sierra 3500
- 2018 GMC Sierra 3500
- 2019 GMC Sierra 3500
Chevrolet Silverado 1500
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
Chevrolet Silverado 2500
- 2007 Chevrolet Silverado 2500
- 2008 Chevrolet Silverado 2500
- 2009 Chevrolet Silverado 2500
- 2010 Chevrolet Silverado 2500
- 2011 Chevrolet Silverado 2500
- 2012 Chevrolet Silverado 2500
- 2013 Chevrolet Silverado 2500
- 2014 Chevrolet Silverado 2500
- 2015 Chevrolet Silverado 2500
- 2016 Chevrolet Silverado 2500
- 2017 Chevrolet Silverado 2500
- 2018 Chevrolet Silverado 2500
- 2019 Chevrolet Silverado 2500
Chevrolet Silverado 3500
- 2007 Chevrolet Silverado 3500
- 2008 Chevrolet Silverado 3500
- 2009 Chevrolet Silverado 3500
- 2010 Chevrolet Silverado 3500
- 2011 Chevrolet Silverado 3500
- 2012 Chevrolet Silverado 3500
- 2013 Chevrolet Silverado 3500
- 2014 Chevrolet Silverado 3500
- 2015 Chevrolet Silverado 3500
- 2016 Chevrolet Silverado 3500
- 2017 Chevrolet Silverado 3500
- 2018 Chevrolet Silverado 3500
- 2019 Chevrolet Silverado 3500
Chevrolet SS
- 2014 Chevrolet SS
- 2015 Chevrolet SS
- 2016 Chevrolet SS
- 2017 Chevrolet SS
Chevrolet Suburban
- 2007 Chevrolet Suburban
- 2008 Chevrolet Suburban
- 2009 Chevrolet Suburban
- 2010 Chevrolet Suburban
- 2011 Chevrolet Suburban
- 2012 Chevrolet Suburban
- 2013 Chevrolet Suburban
- 2014 Chevrolet Suburban
- 2016 Chevrolet Suburban
- 2017 Chevrolet Suburban
- 2018 Chevrolet Suburban
- 2019 Chevrolet Suburban
Chevrolet Suburban 2500
- 2007 Chevrolet Suburban 2500
Chevrolet Tahoe
- 2007 Chevrolet Tahoe
- 2008 Chevrolet Tahoe
- 2009 Chevrolet Tahoe
- 2010 Chevrolet Tahoe
- 2011 Chevrolet Tahoe
- 2013 Chevrolet Tahoe
- 2014 Chevrolet Tahoe
GMC Yukon
- 2007 GMC Yukon
- 2008 GMC Yukon
- 2009 GMC Yukon
- 2010 GMC Yukon
- 2011 GMC Yukon
- 2012 GMC Yukon
- 2013 GMC Yukon
- 2014 GMC Yukon
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What engines does the Texas Speed Stage 3 LS3 N/A cam fit?
Texas Speed recommends it for LS3 and LS2 engines using L92/LS3 rectangular-port cylinder heads, which means 6.0L and 6.2L engines such as the LS3, L99, L92 and L76 in 2007 and later GM vehicles.
What stall converter does the Stage 3 LS3 cam need?
Texas Speed recommends a minimum stall speed of 3,200 rpm for this camshaft in automatic vehicles. A rear gear change is not required.
How much power does the Stage 3 LS3 camshaft add?
Texas Speed reports gains of 88 horsepower and 28 lb-ft of torque over the stock camshaft, with more top-end power than the Stage 2 229/244. Results depend on heads, intake, exhaust and tuning.
Will this 3-bolt camshaft fit an engine with a single-bolt factory cam?
Only with a conversion. The cam is sold on a 3-bolt core, so a single-bolt engine needs the three-bolt conversion kit with the 4x upper timing gear plus the ARP three-bolt camshaft bolt kit, both sold separately by Texas Speed.
Can the Stage 3 LS3 cam be daily driven?
Yes. Texas Speed describes the Stage 3 as a great street-able cam that can be daily driven once properly tuned, with a choppy idle and a 2,000 to 6,900 rpm operating range.
What is the difference between the Stage 3 and the Stage 4 F-35 LS3 cam?
The Stage 3 (231/246, .640" lift, 111 LSA) needs a 3,200 rpm stall and stays daily-driver friendly. The Stage 4 F-35 (235/248, .649" lift, 111 LSA) is the most powerful cam for a stock LS3 short block, needs a 3,600 rpm stall and is not recommended as a daily driver.
