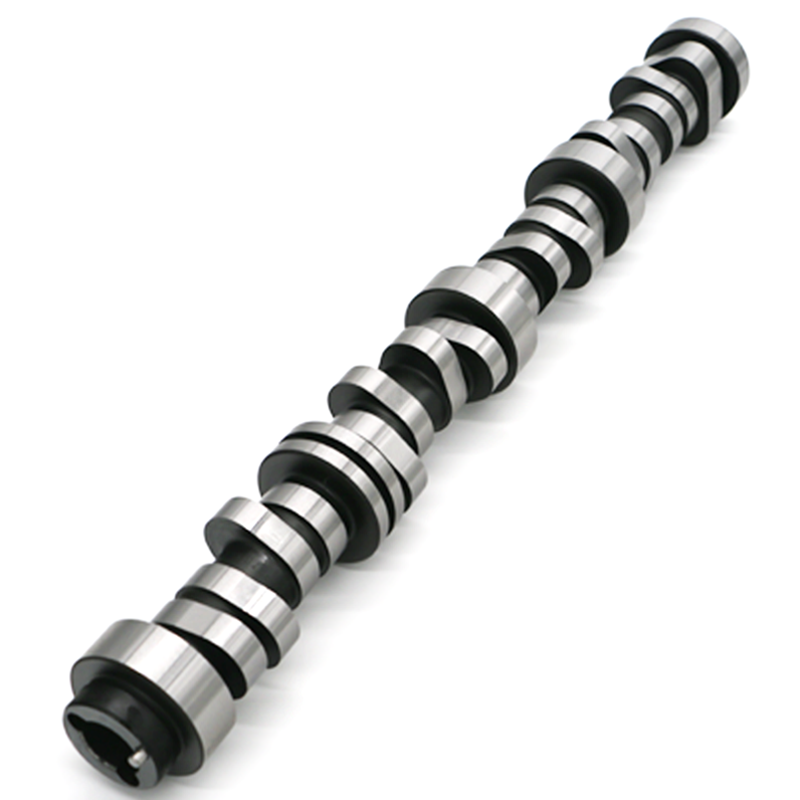

The Texas Speed LT Stroker Stage 1 3-Bolt N/A Camshaft is ground for large-displacement Gen V LT stroker engines that have been converted to a traditional three-bolt camshaft drive. It targets aggressive naturally aspirated builds of 400 or more cubic inches and delivers its gains in the midrange and top end while keeping the valvetrain stable at high rpm.
The grind measures 239/259 duration at .050", .646"/.631" lift and a 110 degree lobe separation angle installed 2 degrees advanced, with a 32 percent fuel lobe for the direct injection pump. Texas Speed requires its TSP/PAC .660" valve spring kit and 3/8" pushrods, recommends PAC-1209X springs and Johnson lifters above 7,000 rpm, and says the cam performs best with aftermarket cylinder heads and an aftermarket intake manifold. Aftermarket pistons with valve reliefs are required for piston-to-valve clearance, and a custom tune is required after installation.
Specifications
- Duration at .050": 239/259
- Valve lift: .646"/.631"
- Lobe separation angle: 110 degrees, +2 (installed 2 degrees advanced)
- Fuel lobe: 32%
- Camshaft drive: 3-bolt
- Application: 400+ cubic inch Gen V LT-based stroker engines, naturally aspirated
- Valve springs: TSP/PAC .660" valve spring kit required; PAC-1209X springs recommended above 7,000 rpm
- Pushrods: 3/8" required
- Lifters: Johnson lifters recommended above 7,000 rpm
- Pistons: Aftermarket pistons with valve reliefs required
- Best with: Aftermarket cylinder heads and aftermarket intake manifold
- Vehicle usage per Texas Speed: Daily driver / friendly
- Chop level per Texas Speed: Choppy
- Tuning: Custom tune required after installation
Note: This camshaft requires aftermarket pistons with valve reliefs for proper piston-to-valve clearance and a 3-bolt camshaft drive. It is not for stock-displacement or stock-piston LT engines.
Vehicle Applications
Application per Texas Speed: 400+ cubic inch Gen V LT-based stroker engines with a 3-bolt camshaft drive, naturally aspirated, using aftermarket pistons with valve reliefs. Vehicle list reflects Gen V LT platforms as published by Texas Speed; this camshaft is not for a stock-displacement engine.
Chevrolet Camaro
- 2016 Chevrolet Camaro
- 2017 Chevrolet Camaro
- 2018 Chevrolet Camaro
- 2019 Chevrolet Camaro
- 2020 Chevrolet Camaro
- 2021 Chevrolet Camaro
- 2022 Chevrolet Camaro
- 2023 Chevrolet Camaro
- 2024 Chevrolet Camaro
Chevrolet Camaro ZL1
- 2017 Chevrolet Camaro ZL1
- 2018 Chevrolet Camaro ZL1
- 2019 Chevrolet Camaro ZL1
- 2020 Chevrolet Camaro ZL1
- 2021 Chevrolet Camaro ZL1
- 2022 Chevrolet Camaro ZL1
- 2023 Chevrolet Camaro ZL1
- 2024 Chevrolet Camaro ZL1
Chevrolet Corvette
- 2014 Chevrolet Corvette
- 2015 Chevrolet Corvette
- 2016 Chevrolet Corvette
- 2017 Chevrolet Corvette
- 2018 Chevrolet Corvette
- 2019 Chevrolet Corvette
- 2020 Chevrolet Corvette
- 2021 Chevrolet Corvette
- 2022 Chevrolet Corvette
- 2023 Chevrolet Corvette
- 2024 Chevrolet Corvette
Cadillac CT5-V Blackwing
- 2022 Cadillac CT5-V Blackwing
- 2023 Cadillac CT5-V Blackwing
Cadillac CTS
- 2016 Cadillac CTS
- 2017 Cadillac CTS
- 2018 Cadillac CTS
- 2019 Cadillac CTS
Cadillac CTS-V
- 2016 Cadillac CTS-V
- 2017 Cadillac CTS-V
- 2018 Cadillac CTS-V
- 2019 Cadillac CTS-V
Cadillac Escalade
- 2015 Cadillac Escalade
- 2016 Cadillac Escalade
- 2017 Cadillac Escalade
- 2018 Cadillac Escalade
- 2019 Cadillac Escalade
- 2020 Cadillac Escalade
- 2021 Cadillac Escalade
- 2022 Cadillac Escalade
- 2023 Cadillac Escalade
- 2024 Cadillac Escalade
Cadillac Escalade V
- 2023 Cadillac Escalade V
- 2024 Cadillac Escalade V
GMC Sierra 1500
- 2014 GMC Sierra 1500
- 2015 GMC Sierra 1500
- 2016 GMC Sierra 1500
- 2017 GMC Sierra 1500
- 2018 GMC Sierra 1500
- 2019 GMC Sierra 1500
- 2020 GMC Sierra 1500
- 2021 GMC Sierra 1500
- 2022 GMC Sierra 1500
- 2023 GMC Sierra 1500
- 2024 GMC Sierra 1500
GMC Sierra 2500
- 2020 GMC Sierra 2500
- 2021 GMC Sierra 2500
- 2022 GMC Sierra 2500
- 2023 GMC Sierra 2500
- 2024 GMC Sierra 2500
GMC Sierra 3500
- 2020 GMC Sierra 3500
- 2021 GMC Sierra 3500
- 2022 GMC Sierra 3500
- 2023 GMC Sierra 3500
- 2024 GMC Sierra 3500
Chevrolet Silverado 1500
- 2014 Chevrolet Silverado 1500
- 2015 Chevrolet Silverado 1500
- 2016 Chevrolet Silverado 1500
- 2017 Chevrolet Silverado 1500
- 2018 Chevrolet Silverado 1500
- 2019 Chevrolet Silverado 1500
- 2020 Chevrolet Silverado 1500
- 2021 Chevrolet Silverado 1500
- 2022 Chevrolet Silverado 1500
- 2023 Chevrolet Silverado 1500
- 2024 Chevrolet Silverado 1500
Chevrolet Silverado 2500
- 2020 Chevrolet Silverado 2500
- 2021 Chevrolet Silverado 2500
- 2022 Chevrolet Silverado 2500
- 2023 Chevrolet Silverado 2500
- 2024 Chevrolet Silverado 2500
Chevrolet Silverado 3500
- 2020 Chevrolet Silverado 3500
- 2021 Chevrolet Silverado 3500
- 2022 Chevrolet Silverado 3500
- 2023 Chevrolet Silverado 3500
- 2024 Chevrolet Silverado 3500
Chevrolet Suburban
- 2015 Chevrolet Suburban
- 2016 Chevrolet Suburban
- 2017 Chevrolet Suburban
- 2018 Chevrolet Suburban
- 2019 Chevrolet Suburban
- 2020 Chevrolet Suburban
- 2021 Chevrolet Suburban
- 2022 Chevrolet Suburban
- 2023 Chevrolet Suburban
- 2024 Chevrolet Suburban
Chevrolet Tahoe
- 2015 Chevrolet Tahoe
- 2016 Chevrolet Tahoe
- 2017 Chevrolet Tahoe
- 2018 Chevrolet Tahoe
- 2019 Chevrolet Tahoe
- 2020 Chevrolet Tahoe
- 2021 Chevrolet Tahoe
- 2022 Chevrolet Tahoe
- 2023 Chevrolet Tahoe
- 2024 Chevrolet Tahoe
GMC Yukon
- 2015 GMC Yukon
- 2016 GMC Yukon
- 2017 GMC Yukon
- 2018 GMC Yukon
- 2019 GMC Yukon
- 2020 GMC Yukon
- 2021 GMC Yukon
- 2022 GMC Yukon
- 2023 GMC Yukon
- 2024 GMC Yukon
Chevrolet Zo6 Corvette
- 2015 Chevrolet Zo6 Corvette
- 2016 Chevrolet Zo6 Corvette
- 2017 Chevrolet Zo6 Corvette
- 2018 Chevrolet Zo6 Corvette
- 2019 Chevrolet Zo6 Corvette
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What engines is the Texas Speed LT Stroker Stage 1 3-bolt cam for?
It is for naturally aspirated Gen V LT-based stroker engines of 400 or more cubic inches that use a 3-bolt camshaft drive and aftermarket pistons with valve reliefs. It is not intended for a stock-displacement LT1, LT4, L83 or L86.
What are the specs of the LT Stroker Stage 1 3-bolt camshaft?
The cam has 239/259 degrees of duration at .050", .646" intake and .631" exhaust lift, a 110 degree lobe separation angle installed 2 degrees advanced and a 32 percent fuel lobe.
What valve springs and pushrods does this cam require?
Texas Speed requires its TSP/PAC .660" valve spring kit and 3/8" pushrods. For engines turning more than 7,000 rpm, Texas Speed recommends PAC-1209X valve springs and Johnson lifters.
How is the 3-bolt Stage 1 different from the standard Texas Speed LT Stroker Stage 1 cam?
The 3-bolt version is for engines converted to a three-bolt cam gear and carries 239/259 duration, while the standard LT Stroker Stage 1 cam is 239/254. Both share .646"/.631" lift, a 110+2 LSA and a 32 percent fuel lobe.
Do I need aftermarket heads and pistons for this camshaft?
Aftermarket pistons with valve reliefs are required for piston-to-valve clearance. Texas Speed says the cam performs best with aftermarket cylinder heads and an aftermarket intake manifold in a free-flowing top end.
Is a tune required after installing this camshaft?
Yes. A custom tune is required after any camshaft swap so the engine runs correctly with the new profile, the 32 percent fuel lobe and the deleted VVT on a 3-bolt conversion.
