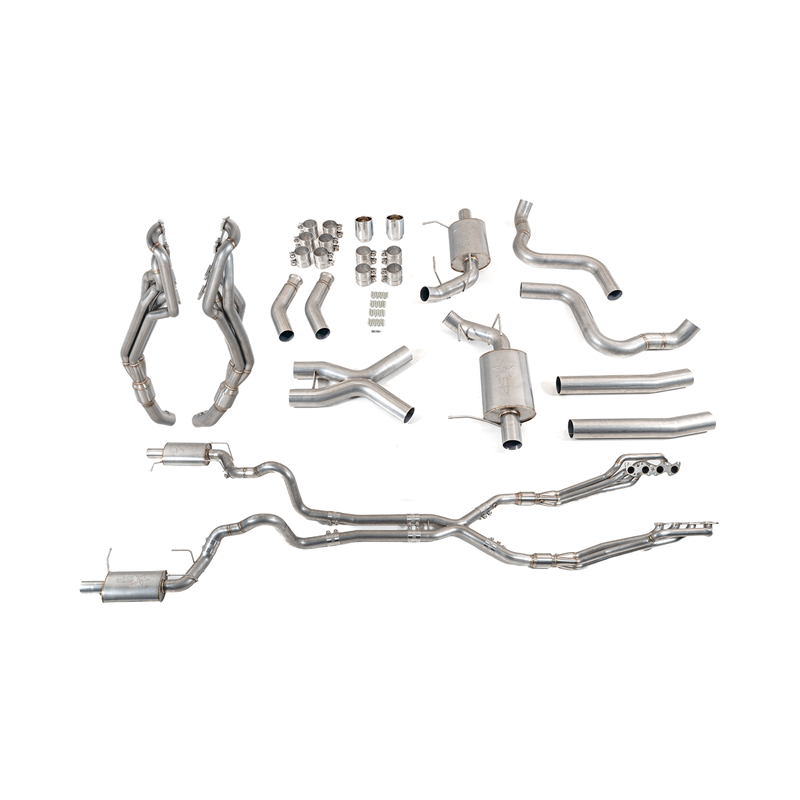

The Texas Speed Full Header-Back Catted Exhaust System replaces everything from the cylinder heads to the tailpipes on the 2011 to 2014 Ford Mustang GT with the 5.0L Coyote V8, manual or automatic. It combines TSP 1-7/8" long tube headers, high-flow catalytic converters, a TSP X-pipe and a 3" non-valved cat-back with 4" swivel tips in one T304 stainless steel package.
The headers are TIG-welded T304 stainless with 1-7/8" mandrel-bent primaries and 3" collectors. The cat-back uses 3" mandrel-bent T304 tubing, dual-wall sleeve clamps throughout and TIG-welded 12 mm barbed hangers that use the factory hanger locations. Multi-layer header gaskets, plug-and-play O2 sensor extension harnesses, sleeve clamp adapters and all clamps and hardware are included, so the system bolts in without cutting or welding.
Specifications
- Fitment: 2011 to 2014 Ford Mustang GT (S197) with 5.0L Coyote V8, manual or automatic
- Headers: TSP 1-7/8" long tube, TIG-welded T304 stainless, 3" collectors
- Catalytic converters: High-flow units with stainless body, included
- Mid-pipe: TSP X-pipe with sleeve clamp adapters
- Cat-back: TSP 3" mandrel-bent T304 stainless, non-valved
- Tips: 4" TSP swivel exhaust tips, chrome or black chrome (selected at ordering)
- Hangers: TIG-welded 12 mm barbed round stock, factory hanger compatible
- Connections: Dual-wall sleeve clamps throughout
- Gaskets: TSP multi-layer header gaskets included
- O2 sensors: Plug-and-play extension harnesses included
- Installation: Direct bolt-on, no cutting or welding
Kit Includes
- TSP 1-7/8" T304 stainless long tube headers with 3" collectors (TSP-S197LTHKIT)
- High-flow catalytic converters
- TSP X-pipe section (TSP-S197XPipeSection)
- Sleeve clamp adapters
- TSP 3" non-valved cat-back with mufflers (TSP-S197AB-NonValved)
- 4" TSP swivel exhaust tips, chrome or black chrome (selected at ordering)
- TSP multi-layer header gaskets, qty 2 (TSP-5392-030)
- O2 sensor extension harness package (TSP-S197O2ExtPkg)
- All required clamps and hardware
Ordering Options
Select the Exhaust Tip Finish when ordering: Chrome or Black Chrome. Texas Speed also offers this header-back system in a valved version with valve actuators and controller.
Note: The passenger-side heat shield stud may need to be trimmed flush with its nut for clearance.
Vehicle Applications
Ford Mustang
- 2011 Ford Mustang — 5.0L Coyote
- 2012 Ford Mustang — 5.0L Coyote
- 2013 Ford Mustang — 5.0L Coyote
- 2014 Ford Mustang — 5.0L Coyote
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
Race Use Only. This product is intended for competition use on vehicles that are never operated on public roads. It is not legal for sale or use on pollution-controlled motor vehicles, and it is not CARB exempt. Installing or using this part on a vehicle driven on public roads may violate the federal Clean Air Act and state emissions laws.
FAQ
What does the Texas Speed S197 header-back exhaust system include?
It includes TSP 1-7/8" T304 stainless long tube headers, high-flow catalytic converters, a TSP X-pipe, sleeve clamp adapters, a 3" non-valved cat-back, 4" swivel tips, multi-layer header gaskets, O2 sensor extension harnesses and all clamps and hardware.
What Mustangs does this full exhaust system fit?
Texas Speed lists it for the 2011 to 2014 Ford Mustang GT (S197) with the 5.0L Coyote V8, with either the manual or automatic transmission.
Is any cutting or welding required to install it?
No. Texas Speed describes the system as a direct bolt-on with all hardware included. The only noted modification is trimming the passenger-side heat shield stud flush with its nut if clearance requires it.
What is the difference between the non-valved and valved versions?
The non-valved system runs at full volume all the time with no valve controls. The valved version adds valve actuators and a controller to the cat-back so the driver can open or close the exhaust on command.
Is this exhaust system street legal?
No. Because it includes long tube headers and replacement high-flow catalytic converters, Texas Speed sells this system for competition use only. It is not CARB exempt and is not legal for use on pollution-controlled vehicles driven on public roads.
Are O2 sensor extensions included?
Yes. Plug-and-play O2 sensor extension harnesses that connect to the factory harness are part of the kit, since the long tube headers relocate the sensor positions.
